Aircraft finishes serve a dual purpose: they protect the airframe structure from corrosion and environmental degradation, and they present the aircraft in a professional, airworthy appearance. When paint is applied improperly, a range of defects can appear that compromise both of these goals. Among the most common defects encountered by aviation maintenance technicians (AMTs) are runs, sags, and blushing. Understanding why each defect occurs, how to recognize it, and the correct corrective action is essential knowledge for any AMT working on aircraft finishes—and it is a tested subject area on the FAA Airframe Knowledge Exam.
This article walks through each defect in detail: the conditions that cause it, how it appears on the surface, steps to correct it, and how to prevent recurrence. The material is grounded in the guidance found in the FAA Aviation Maintenance Technician Handbook—Airframe (FAA-H-8083-31), which covers finishing materials, application techniques, and quality standards for certificated aircraft maintenance.
Understanding Paint Runs

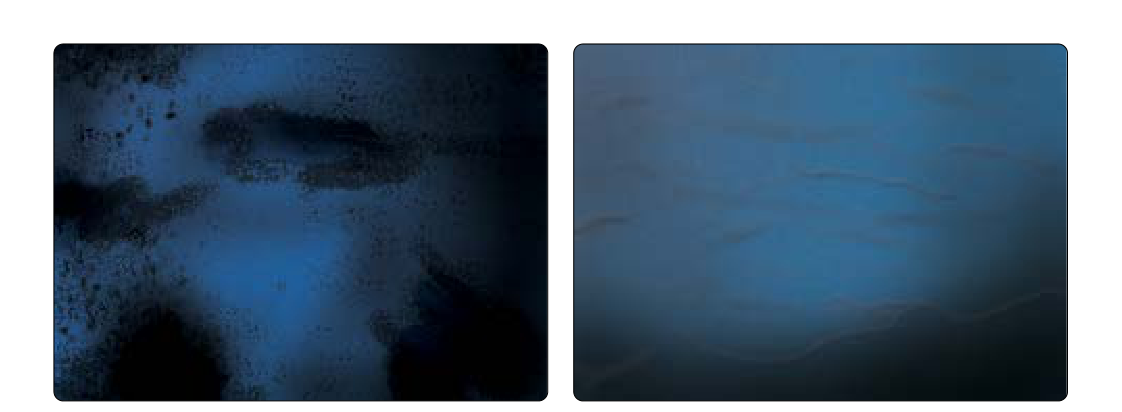

A run is a localized, teardrop-shaped drip of paint that travels downward from a single point on a vertical or near-vertical surface. Runs are among the most easily recognizable paint defects because they leave a distinct trail of excess material that has flowed under gravity before drying.
Runs occur when too much paint is deposited in one area. The most common causes include holding the spray gun too close to the surface, moving the gun too slowly across the panel, applying an excessive number of wet coats before allowing adequate flash time, or using a paint that has been over-thinned. Any of these factors allows a localized puddle of material to accumulate and then flow before the solvents can evaporate sufficiently to hold the coating in place.
When a run is still wet, the temptation is to wipe it immediately. This is generally the wrong approach, because wiping a wet run usually smears the material into the surrounding finish, creating a much larger defect. Instead, the technician should allow the run to cure fully. Once hard, the raised bead of material can be carefully leveled using fine wet-or-dry abrasive paper (typically in the range of 400 to 600 grit, used wet) followed by rubbing compound and polishing. If the run is severe and has cured into a thick ridge, it may be necessary to sand through to the primer and reapply the topcoat in that area, blending the new material carefully into the surrounding finish.
Prevention is straightforward: maintain the correct gun-to-surface distance (typically 6 to 8 inches for conventional spray equipment, though this varies by equipment and material), keep the gun moving at a consistent speed, and allow adequate flash time between coats as specified by the coating manufacturer's data sheet.
Understanding Paint Sags
A sag is similar to a run in cause but different in appearance. Where a run is a narrow, drip-like trail, a sag appears as a broad curtain or wave of paint that has slumped downward across a wider area of the surface. Sags are sometimes called curtains because of this wave-like draping effect.
Sags result from the same fundamental problem as runs—too much wet material applied before sufficient solvent evaporation—but the excess is distributed over a larger area rather than concentrated at a single point. Contributing factors include applying the coating too heavily across an entire panel, using a thinner that evaporates too slowly for the ambient temperature and humidity conditions, or spraying in cold conditions that slow solvent release. Cold surfaces are a particularly common culprit because low surface temperatures dramatically increase the time needed for solvents to flash off.
Correction of a sag follows the same principle as correcting a run: allow the material to cure fully before attempting any remediation. Attempting to work a sag while the material is still wet invariably makes the problem worse. Once cured, the sagged area is wet-sanded flat using progressively finer grits, then compounded and polished. In severe cases where the sag has caused the coating to thin excessively above the sag line (the material pulled away from above to form the curtain), it may be necessary to strip and recoat the panel.
To prevent sags, the technician should always consult the coating manufacturer's technical data sheet for the correct reducer or thinner selection based on current shop temperature, and should apply thin, even coats with proper flash time between each pass.
Understanding Blushing
Blushing is a very different type of defect. Rather than a physical buildup or movement of material, blushing appears as a milky, hazy, or whitish cloudiness in the cured finish. It is most often seen in lacquer-based or certain two-part finishes, and it is caused by a moisture-related phenomenon rather than excessive film build.
When solvents evaporate rapidly from a spray coating, they carry heat away from the surface through a process of evaporative cooling. If the ambient humidity is high and the surface temperature drops far enough, moisture from the surrounding air condenses into the wet film. This trapped moisture is incompatible with the resin system and scatters light, producing the characteristic white or milky haze known as blushing.
Blushing can also result from using a thinner that evaporates too quickly for the shop conditions. A very fast thinner evaporates so rapidly that it super-cools the surface, encouraging moisture condensation even at moderate humidity levels. This is why thinner selection based on temperature and humidity is so important.
Mild blushing that has not fully cured can sometimes be corrected by spraying a light coat of retarder—a slow-evaporating solvent—over the affected area. The retarder reopens the film, allows the trapped moisture to escape, and lets the resin flow back to a clear, uniform surface as it dries. If the finish has fully cured with blushing present, the affected area must be wet-sanded and refinished. Unlike runs and sags, a blushed finish cannot simply be polished back to clarity once fully cured, because the cloudiness exists within the film itself rather than on its surface.
Prevention focuses on environmental control: avoid spraying when relative humidity is above the threshold specified by the coating manufacturer (often cited around 85% or as directed), use a retarder or slower-evaporating thinner in hot or humid conditions, and maintain adequate shop temperature.
Key Numbers and Rules
- Gun-to-surface distance: Typically 6 to 8 inches for conventional spray guns; check manufacturer recommendations for HVLP equipment, which may differ.
- Flash time: Always follow the coating manufacturer's data sheet—flash times vary by product, temperature, and humidity. Never apply a second coat while the first coat is still wet to the touch.
- Thinner selection: Choose the correct reducer or thinner for the ambient temperature range specified on the product data sheet. Using a thinner rated for cool conditions in a warm shop can cause sags; using one rated for warm conditions in a cool shop can cause blushing.
- Humidity threshold: Many aircraft coating manufacturers advise against spraying when relative humidity exceeds approximately 85%, though the specific limit varies by product.
- Wet sanding grits: Runs and sags are typically leveled starting at 400 grit wet, progressing to 600 grit, then rubbing compound, and finally finishing polish before blending.
- Blushing correction window: Retarder application is only effective while the coating remains workable (not yet fully cured). Once fully cured, blushing requires sanding and recoating.
Common Test Traps
- Confusing runs with sags: The FAA exam may ask you to distinguish between the two. Remember that a run is a narrow drip from a localized point, while a sag is a broad curtain or wave across a larger area. Both have the same root cause (excessive wet film), but they look different.
- Wiping a wet run: A common wrong-answer choice on the exam is to wipe the run while wet. The correct action is to let it cure and then sand it level.
- Blushing is not a film-build problem: Test questions may try to associate blushing with too much material, but blushing is caused by moisture entrapment from rapid solvent evaporation in humid conditions—not by excessive thickness.
- Retarder vs. thinner: A retarder slows evaporation and is the correct remedy for a blush that is not yet fully cured. Do not confuse a retarder with a fast thinner, which would make blushing worse.
- Prevention vs. correction: The exam may ask specifically whether an action is corrective or preventive. Know that proper thinner selection and humidity monitoring are preventive measures, while wet-sanding and retarder application are corrective measures applied after the defect has appeared.
