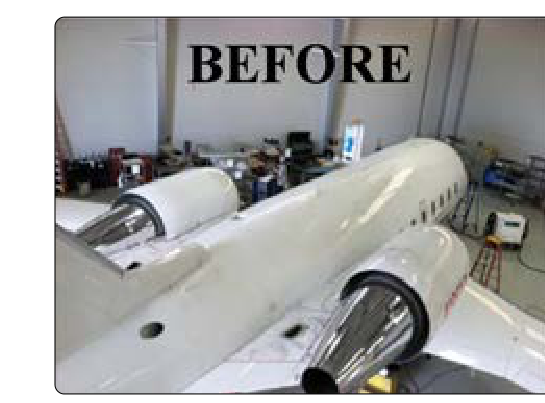

Every aircraft that flies in the real world is constantly exposed to moisture, salt air, ultraviolet radiation, fuel, hydraulic fluid, and a host of other environmental aggressors. Left unprotected, aluminum alloys, steel components, and composite structures would degrade far faster than any maintenance schedule could address. Protective coatings and paint systems are the first and most enduring line of defense against that threat. For the aviation maintenance technician (AMT), understanding how these systems are built up, why each layer performs a specific function, and how to apply and inspect them correctly is not optional knowledge — it is a core safety competency grounded in FAA standards.
This article walks through the complete architecture of an aircraft paint system, the chemistry behind the major coating types, surface preparation requirements, application principles, and the inspection criteria that determine when a coating has failed and must be renewed.
The Layered Architecture of an Aircraft Paint System
A properly applied aircraft coating is not a single layer of paint. It is a carefully engineered system of multiple layers, each performing a distinct role. The FAA's Aviation Maintenance Handbook — General describes this system in three primary stages: surface treatment, primer, and topcoat.
Surface Treatment (Conversion Coating)
Before any primer touches bare metal, the metal itself must be chemically conditioned. On aluminum alloys, this is commonly accomplished with a chemical conversion coating — a process that uses a chromate or non-chromate solution (such as Alodine or its equivalents) to react with the aluminum surface and form a thin, tightly bonded oxide layer. This layer does two things simultaneously: it passivates the metal (making it less reactive to further oxidation) and it provides a microscopically rough, chemically active surface that dramatically improves primer adhesion.
Conversion coatings are typically extremely thin — on the order of only a few millionths of an inch — and they impart a characteristic iridescent gold or tan color to aluminum. The coating itself offers limited corrosion protection on its own; its primary role is to serve as the ideal bonding substrate for subsequent layers. For steel components, phosphate conversion coatings serve an analogous purpose.
Primer
The primer is the workhorse of corrosion protection. It bonds to the conversion coating below it and provides active corrosion inhibition through the use of chromate pigments (such as zinc chromate or strontium chromate) in traditional formulations. These pigments slowly release inhibiting ions that interfere with the electrochemical corrosion process at the metal surface.
Two primer types are most common in aviation:
- Wash primer (pretreatment primer): A very thin, self-etching primer that combines mild acid with the primer chemistry to etch the metal surface as it applies. It improves adhesion but provides minimal film build and is generally used as a tie-coat between bare metal and subsequent primer coats, not as a standalone system.
- Epoxy primer: A two-component (2K) system consisting of a base and an activator (hardener) that chemically cross-link after mixing. Epoxy primers provide excellent adhesion, good chemical resistance, and superior barrier protection. They are the standard choice for most modern aircraft maintenance applications. Because pot life is limited after mixing, only the amount needed for a specific job should be mixed at one time.
Topcoat
The topcoat is what the world sees, but its role goes beyond aesthetics. A properly applied topcoat seals the primer from direct exposure to moisture, UV radiation, fuel, oil, and cleaning solvents. It also provides the reflective or decorative finish required by the operator. Aviation topcoats fall into two dominant chemistry families:
- Acrylic lacquer: A single-component, solvent-based finish that dries by solvent evaporation. Acrylic lacquer was widely used on older general aviation aircraft because it is easy to apply and repair. However, it has relatively poor resistance to chemicals and UV degradation compared to modern alternatives, and it is increasingly less common on new aircraft.
- Polyurethane (urethane) enamel: A two-component system in which an acrylic or polyester base reacts with an isocyanate activator to form an extremely durable, chemically resistant film. Polyurethane topcoats are the industry standard for modern commercial and general aviation aircraft. They exhibit outstanding gloss retention, UV resistance, and resistance to aviation fluids. The trade-off is significantly greater complexity: the isocyanate activator component is a serious respiratory hazard, and applicators must use supplied-air respirators, not just dust masks, during application and until the film has cured.
Why Coating System Integrity Matters
Corrosion beneath a compromised coating can propagate invisibly until structural damage is already significant. This is particularly dangerous on load-bearing skins, wing spars, and fuselage frames where the margin between acceptable and unacceptable material loss is measured in thousandths of an inch. A chip, crack, or delamination in the topcoat allows moisture and contaminants to reach the primer; a breach in the primer exposes bare metal or conversion coating to the electrochemical conditions that initiate pitting, intergranular, or exfoliation corrosion.
From an airworthiness standpoint, the paint system is not cosmetic — it is a structural protection system, and its condition directly influences the inspection intervals and repair methods specified in manufacturer's maintenance manuals and FAA-accepted data.
Surface Preparation: The Most Critical Step
The single most common cause of premature coating failure is inadequate surface preparation. The FAA handbook emphasizes that coatings can only perform to their design capability if the substrate is properly cleaned and prepared before application.
Preparation steps typically include:
- Cleaning: Removal of all oils, greases, dirt, and old wax using approved solvents or alkaline cleaners. The surface must be solvent-wiped in one direction (not scrubbed back and forth) to prevent redepositing contamination.
- Mechanical abrasion: Sanding or scuff-sanding with appropriate grit abrasive to mechanically key the surface and remove oxidation. The direction and degree of sanding must match the primer manufacturer's requirements.
- Chemical treatment: Application of conversion coating on bare metal areas per the applicable specification.
- Tack-wiping: A final solvent wipe immediately before primer application to remove any residual dust or fingerprints. Even the oils from bare hands can cause fish-eye defects in the finish.
Key Numbers and Rules
- Pot life: Two-component coatings (epoxy primer, polyurethane topcoat) must be used within their pot life window after mixing. Pot life is entirely manufacturer- and product-specific and varies with temperature — always consult the product data sheet rather than assuming a standard duration. Exceeding pot life results in application of partially cross-linked material with significantly reduced adhesion and film integrity.
- Dry film thickness (DFT): Each layer has a specified DFT range. Too thin and the layer provides insufficient protection; too thick and solvent entrapment, sagging, or cohesive failure can result. The FAA handbook does not publish universal DFT figures for primer and topcoat — actual thickness specifications are manufacturer- and product-specific, so always consult the manufacturer's data sheet.
- Temperature and humidity: The FAA handbook does not establish a single universal temperature or humidity range that applies to all coatings; recommended application conditions vary by specific product and are found on the manufacturer's technical data sheet. Applying coatings outside a product's recommended windows leads to solvent blushing, extended cure times, poor adhesion, and micro-cracking.
- Recoat window: Primers and topcoats have both a minimum and maximum recoat window. Applying the next coat too early traps solvents; applying it too late (beyond the maximum recoat time) creates an inter-coat adhesion problem because the surface has cross-linked to the point where mechanical keying is required before the next layer will bond.
- Respirator requirement: Spraying isocyanate-containing topcoats calls for supplied-air respirators, per FAA guidance and OSHA respiratory protection standards (29 CFR 1910.134). Air-purifying respirators with organic vapor cartridges alone are not adequate protection against isocyanate sensitization.
Common Test Traps
- Confusing wash primer with a full primer system: Wash primer (self-etching primer) is a pretreatment or tie-coat, not a complete corrosion-protective primer. The FAA knowledge test may present scenarios where wash primer alone is treated as sufficient — it is not.
- Overlooking the recoat window: Candidates sometimes assume that as long as a coat is dry to the touch, the next layer can be applied. The maximum recoat time is just as critical as the minimum; always verify both limits in the product data sheet before applying additional coats.
- Assuming lacquer and urethane are interchangeable: These are chemically incompatible in some combinations. Applying a urethane topcoat directly over a lacquer primer (or vice versa) without proper compatibility testing or an approved sealer coat can cause lifting, wrinkling, or delamination of the entire system.
- Underestimating the hazard of isocyanates: Test questions may describe a technician using a standard dust mask or organic vapor cartridge respirator when spraying polyurethane. This is a serious safety violation; isocyanate sensitization can cause permanent occupational asthma.
- Skipping conversion coating on bare metal repairs: When a repair exposes bare aluminum, applying primer directly without re-establishing the conversion coating bypasses the active corrosion-inhibiting chemistry that the entire system depends on.
