Aircraft operating near coastlines, over open water, or in persistently humid climates face one of the most aggressive corrosion threats in aviation maintenance. Salt-laden air, condensation trapped in structural cavities, and electrolytic reactions between dissimilar metals can silently consume aluminum skin, steel fittings, and magnesium components in a fraction of the time those same materials would last in a dry inland environment. For the Aviation Maintenance Technician (AMT), understanding how corrosion initiates, progresses, and is properly treated is not just an exam requirement — it is a direct contribution to flight safety.
This article covers the chemistry and mechanics of corrosion, the specific challenges posed by marine and high-humidity conditions, the inspection and treatment procedures approved for certificated aircraft, and the protective strategies that slow or prevent corrosion from taking hold in the first place.
What Corrosion Is and Why Marine Environments Accelerate It
Corrosion is the electrochemical deterioration of a metal through reaction with its environment. For corrosion to occur, four elements must be present simultaneously: an anode (the metal that corrodes), a cathode (a dissimilar metal or a different region of the same metal), an electrolyte (a conductive liquid, typically water containing dissolved salts or acids), and a metallic path connecting the anode and cathode. Remove any one of these four elements and the corrosion reaction stops.
In a marine environment, seawater and salt spray provide an extremely efficient electrolyte. Sodium chloride dissolved in water dramatically lowers electrical resistance, accelerating the flow of electrons from anode to cathode and speeding up metal loss at the anode. High humidity alone — even without visible liquid water — allows a thin, nearly invisible film of moisture to form on metal surfaces. This thin electrolyte film is often enough to sustain active corrosion, particularly when salt particles or industrial contaminants are already deposited on the surface.
Temperature cycling compounds the problem. When an aircraft cools at night, moisture condenses inside wing cavities, fuselage frames, and bilge areas. When it warms during the day, that moisture cannot always escape and instead migrates deeper into lap joints and under sealant. Over time, these hidden pockets sustain ongoing electrochemical attack that is invisible during a casual walk-around inspection.
Types of Corrosion Commonly Found in Marine Operations
Uniform Surface Corrosion
The most visible form, uniform surface corrosion appears as a general etching or pitting across an exposed metal surface. On aluminum, it presents as a gray or white powdery deposit (aluminum oxide and aluminum hydroxide). While relatively easy to detect, it still requires prompt attention because surface roughening concentrates stress and can initiate fatigue cracks.
Pitting Corrosion
Pitting is particularly dangerous because it concentrates attack in small areas, creating deep cavities that can penetrate structural material while the surrounding surface still looks acceptable. Chloride ions — abundant in salt air — are especially aggressive at initiating pits in aluminum alloys. Pitting is a common finding on the lower surfaces of wings and fuselages on coastal-based aircraft.
Galvanic (Dissimilar Metal) Corrosion
When two dissimilar metals are in electrical contact in the presence of an electrolyte, the less noble (more anodic) metal corrodes preferentially. The FAA's galvanic series ranks metals from most active (anodic, corrodes first) to most noble (cathodic, protected). Magnesium is highly active; pure aluminum is moderately active; titanium is significantly more noble than most steels, and both rank well above aluminum toward the cathodic end of the series. In aircraft construction, steel fasteners installed in aluminum structure, or magnesium castings adjacent to aluminum structure, create galvanic couples that marine moisture readily exploits. Proper isolation — using non-absorbent sealants, anodized surfaces, or compatible metal pairings — is the design-level defense.
Intergranular Corrosion
This form attacks along the grain boundaries of a metal, leaving the grain surfaces relatively intact. It is especially serious in high-strength aluminum alloys (such as 2024 and 7075 series) when improperly heat-treated or sensitized. Intergranular corrosion can render a component structurally unsound before any visible surface damage is apparent. Exfoliation corrosion — a severe form of intergranular corrosion — causes the metal to delaminate in layers, producing a characteristic leaf-like or flaking appearance.
Stress Corrosion Cracking
When sustained tensile stress combines with a corrosive environment, stress corrosion cracking (SCC) can occur. High-strength aluminum alloys, certain stainless steels, and titanium alloys can all be susceptible under the right conditions. SCC produces cracks that propagate with little or no visible corrosion product, making it among the most treacherous forms to detect without specialized non-destructive inspection methods.
Filiform Corrosion
Filiform corrosion appears as thread-like traces or worm-like tracks beneath paint or coatings. It is initiated when the protective coating is breached — by a scratch, fastener hole, or chip — and moisture infiltrates. In high-humidity environments, filiform corrosion spreads rapidly under the coating, undermining adhesion and ultimately exposing the metal to more aggressive attack. It is commonly found on aluminum skin panels near fastener rows.
Inspection Procedures for High-Humidity and Marine Aircraft
Aircraft based in marine environments should be placed on more frequent inspection intervals than the manufacturer's standard recommendations, following the guidance in the applicable maintenance manual and any corrosion prevention and control program (CPCP) established for transport-category aircraft under FAA Advisory Circulars. Even for general aviation aircraft, increasing the frequency of corrosion checks in bilge areas, lower fuselage skins, wing spar lower caps, control surface hinges, and landing gear bays is sound maintenance practice.
Inspection methods include visual examination — enhanced with bright lighting, mirrors, and magnification — as well as non-destructive testing (NDT) techniques. Eddy current inspection is primarily used to detect surface and near-surface cracks in aluminum, including cracking that can result from corrosion, but it is not the primary method for quantifying general corrosion or metal loss. Ultrasonic thickness testing reveals metal loss hidden beneath intact paint and is a principal tool for detecting corrosion-related thinning. Tap testing (coin tapping) of bonded and composite structures can suggest delamination. For critical structure, dye-penetrant inspection locates surface-breaking cracks after protective coatings are removed.
When inspecting, pay particular attention to areas where moisture can become trapped: lap joints, under sealant beads, inside control surface cavities, around drain holes (which may be blocked), beneath floor panels, and inside wheel wells. Drain holes must be verified open; blocked drains are a leading contributing factor to hidden corrosion in fuselage bilges.
Treatment and Removal of Corrosion
The FAA's guidance, reflected in AC 43.13-1B (Acceptable Methods, Techniques, and Practices — Aircraft Inspection and Repair), establishes that corrosion must be completely removed before any treatment or protective coating is applied. Covering corrosion with paint or sealant without removal traps the active electrochemical reaction beneath the coating and accelerates, rather than arrests, the damage.
For aluminum, mechanical removal using aluminum wool, fiber abrasive pads, or fine abrasive papers is preferred over steel tools, which can embed iron particles and initiate new galvanic corrosion cells. After mechanical cleaning, the surface is typically cleaned and etched or deoxidized to prepare it for treatment, and then a chemical conversion coating — such as an Alodine (chromate conversion coating) treatment — is applied by brush, spray, or immersion per AC 43.13-1B guidance and manufacturer instructions. This coating improves paint adhesion and provides some corrosion inhibition. Following conversion coating, the surface must be primed with a corrosion-inhibiting primer (often zinc chromate or an approved alternative) and then topcoated.
Steel components are treated differently. After mechanical removal of rust, a rust-inhibiting primer appropriate for steel is applied. For structural steel parts with significant corrosion or metal loss beyond manufacturer limits, replacement rather than repair is typically required.
Any corrosion that has caused material thickness to fall below the minimum allowable limits specified in the structural repair manual or manufacturer's data must be addressed through approved repair or replacement — an AMT cannot simply treat the surface and return the part to service if the metal loss exceeds engineering limits.
Preventive Corrosion Control Strategies
Prevention is always more effective and less costly than treatment. For marine and high-humidity operations, the following practices form the core of a sound corrosion prevention strategy:
- Frequent fresh-water rinse: Rinsing the entire aircraft — including the underside, landing gear bays, and control surface hinges — with clean fresh water after coastal flights removes salt deposits before they can initiate pitting. This is one of the most cost-effective corrosion prevention measures available.
- Corrosion-inhibiting compounds (CIC): Products approved for aviation use, such as water-displacing lubricants applied into wing ribs, fuselage frames, and control cable fairleads, displace moisture and leave a protective film. These must be selected and applied per the aircraft maintenance manual to avoid contamination of brakes, tires, or oxygen systems.
- Sealant integrity maintenance: Fuel tank sealants, faying surface sealants, and edge sealants around fasteners must be inspected for cracks or disbonding. Breaches allow moisture intrusion and must be repaired with approved sealant.
- Protective coatings: Maintaining intact paint systems — primer plus topcoat — is the primary barrier against environmental moisture. Any chip, scratch, or abrasion that exposes bare metal should be touched up promptly.

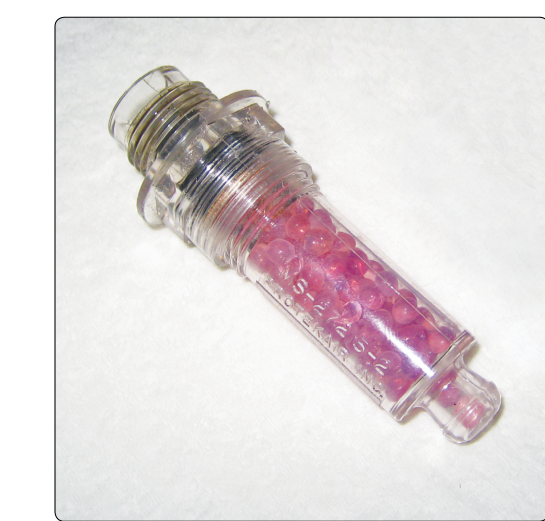

- Controlled storage: Hangaring aircraft eliminates the overnight condensation cycle that accelerates hidden corrosion. Even a simple cover reduces moisture accumulation in the cockpit and engine compartment.
- Drain hole maintenance: All manufacturer-specified drain holes must be kept clear. Inspect and clean them at each maintenance visit for coastal operations.
Key Numbers and Rules
- AC 43.13-1B is the primary FAA reference for acceptable corrosion inspection and repair methods on general aviation aircraft.
- Corrosion must be completely removed before protective treatment is applied — covering active corrosion is not an approved repair technique.
- Metal loss beyond manufacturer-specified limits requires an engineering disposition (approved repair or replacement); no field treatment can restore structural material that has been lost.
- Chromate conversion coatings (e.g., Alodine) must be applied to clean, bare aluminum before priming to maximize adhesion and inhibit future corrosion.
- Transport-category aircraft must comply with Corrosion Prevention and Control Programs (CPCPs) per FAA Advisory Circulars and applicable Airworthiness Directives.
Common Test Traps
- Covering vs. removing corrosion: A frequent distractor asks whether applying fresh paint over corrosion is acceptable. It is not. Complete removal is mandatory before any protective treatment.
- Steel tools on aluminum: Using steel wire brushes or steel wool on aluminum embeds ferrous particles, creating new galvanic corrosion sites. Always use aluminum-compatible abrasives.
- Galvanic series direction: Remember that the anodic (less noble) metal corrodes — not the cathodic metal. Magnesium corrodes next to aluminum; aluminum corrodes next to copper.
- Filiform vs. intergranular: Filiform appears as thread-like tracks under paint; intergranular attacks grain boundaries beneath the surface. They look different and are detected differently.
- Drain hole significance: Test questions sometimes frame clogged drains as a minor housekeeping issue. In reality, blocked drains are a direct cause of hidden structural corrosion and must be treated as an airworthiness concern.
