Chromoly 4130 steel — formally designated SAE/AISI 4130 — is one of the most important materials an airframe technician will encounter in welded aircraft construction. It appears in fuselage truss structures, engine mounts, landing gear components, control system brackets, and a host of other safety-critical assemblies. The "4130" designation tells you exactly what is in the alloy: the "41" prefix identifies a chrome-molybdenum (chromoly) steel, and "30" indicates approximately 0.30 percent carbon content by weight. That combination of chromium, molybdenum, and controlled carbon gives 4130 an exceptional strength-to-weight ratio, excellent weldability, and the ability to be heat-treated to a range of strengths — all qualities that make it nearly ideal for aircraft fabrication.
For AMT airframe candidates, 4130 welding is a richly tested subject because it touches metallurgy, process selection, heat management, inspection, and regulatory compliance all at once. A technician who truly understands 4130 can not only produce sound welds but can recognize when a weld has gone wrong and understand why — a critical safety skill in an industry where a failed weld can be catastrophic.
Metallurgy of 4130 Chromoly Steel
4130 is a low-alloy steel whose principal alloying elements are chromium (0.80–1.10 percent) and molybdenum (0.15–0.25 percent), in addition to the carbon. Chromium improves hardenability and corrosion resistance; molybdenum adds toughness and elevated-temperature strength. The relatively low carbon content (nominally 0.28–0.33 percent) keeps the material in the "low-to-medium carbon" category, which is significant because carbon content is the primary driver of weldability: high-carbon steels form brittle martensite in the heat-affected zone (HAZ) when cooled rapidly, but 4130's modest carbon equivalent keeps this risk manageable with proper technique.
In its normalized (mill-annealed) condition, 4130 has a tensile strength of roughly 90,000 psi (620 MPa) and a yield strength near 70,000 psi (480 MPa). When heat-treated and quenched-and-tempered, those numbers can climb substantially. Aircraft structures are typically designed around the normalized condition because post-weld heat treatment is not always practical on complex assemblies, and the FAA and aircraft manufacturers specify the design allowables accordingly.
Welding Processes Approved for 4130
The FAA Aviation Maintenance Handbook (FAA-H-8083-30) and associated advisory circulars recognize several welding processes for 4130 aircraft structures, but two dominate in practice:
- Oxyacetylene welding (OAW): The traditional choice for 4130 tubing. A properly adjusted neutral flame (equal oxygen and acetylene) produces a clean, controllable weld puddle. The relatively slow heat input means the base metal is gradually heated and cooled, reducing the risk of abrupt thermal gradients and quench-induced hardening in the HAZ. OAW is particularly favored for thin-wall tubing in truss structures because the technician has fine control over heat input and puddle shape.
- Gas tungsten arc welding (GTAW/TIG): Increasingly common in modern shops, TIG welding produces a narrow, high-quality weld with excellent fusion and low contamination when argon shielding gas is used. TIG's higher heat intensity compared to OAW means the HAZ is smaller but the local temperature gradient is steeper, so technique matters greatly. TIG is preferred for heavier sections and for shops that must meet modern quality-system documentation requirements.
Gas metal arc welding (GMAW/MIG) is sometimes used on heavier 4130 components but is generally avoided on thin aircraft tubing because heat control is more difficult and the risk of incomplete fusion or cold lapping increases. Shielded metal arc welding (SMAW/stick) is rarely used on aircraft-grade 4130 tubing due to its coarser arc and difficulty in controlling heat on thin-wall material.
Filler Metal Selection
When welding 4130 with the oxyacetylene process, the preferred filler rod is ER70S-2 or ER80S-D2, which are low-alloy steel rods that deposit weld metal compatible with 4130's mechanical properties. The weld deposit from these fillers is typically slightly softer than the normalized base metal, but the joint geometry and weld bead reinforcement compensate for this in most structural applications. For TIG welding, the same ER70S-2 or ER80S-D2 classifications apply, delivered as cut-length rods fed manually into the arc. The filler must be clean, stored dry, and free of oil, oxide, or moisture — contamination is a leading cause of porosity in finished welds.
Joint Preparation and Fit-Up
Sound welding begins long before the torch is lit. The FAA handbooks emphasize that proper joint preparation is as important as welding technique itself. Key preparation steps include:
- Cleaning: Remove all scale, paint, grease, and oxide from at least one inch on either side of the intended weld zone. Use a clean wire brush (stainless for TIG), acetone or MEK wipe, and avoid contamination from bare hands after cleaning.

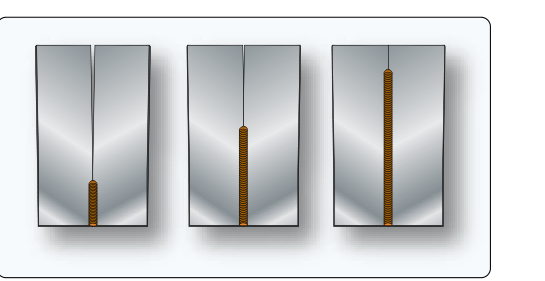

- Fit-up and gap control: Tubing joints must fit snugly with a consistent root gap as specified by the applicable drawing or repair data. Gaps that are too wide cause burnthrough on thin tubing; gaps that are too tight prevent full root penetration.
- Rosette and fish-mouth welds: In tubular truss structures, diagonal braces are often attached using a fish-mouth (scalloped) end cut that maximizes weld surface area and distributes load gradually. Rosette (plug) welds are used when one tube fits inside another, with a drilled hole in the outer tube allowing the weld to fuse both thicknesses.
- Tack welding: Before final welding, parts are secured with small tack welds at strategic points to maintain alignment. Tacks must be of sufficient size to resist distortion during welding but small enough to be fully consumed by the final weld passes.
Heat Management and Distortion Control
Heat management is where experience truly separates a competent welder from a great one. 4130 is sensitive to rapid heating and cooling cycles. When the weld zone is heated above the transformation temperature and then cooled quickly — either by a cold draft or by the mass of surrounding metal — the HAZ can develop a martensitic microstructure that is hard but brittle. This embrittlement is a structural hazard in a dynamic aircraft structure subjected to vibration and repeated loading.
To manage this risk, preheating is required for 4130 sections thicker than approximately 3/16 inch (4.8 mm). The FAA handbooks and applicable welding standards generally call for a preheat temperature in the range of 300°F to 400°F (149°C to 204°C) for heavier sections, verified with temperature-indicating crayons (Tempilstiks) or contact thermometers. For thin-wall tubing typically used in fuselage trusses (0.035 to 0.065 inch wall thickness), preheat may not be mandatory, but slow cooling — achieved by wrapping the assembly in an insulating blanket immediately after welding — is strongly recommended.
Welding sequence also controls distortion. Technicians use a backstep or skip-weld pattern to distribute heat evenly, weld opposing joints alternately, and allow partial cooling between passes on complex assemblies.
Post-Weld Treatment and Inspection
After welding, 4130 structures typically receive a stress-relief or normalization heat treatment when structurally practical. Stress relief at approximately 1,000°F to 1,200°F (538°C to 649°C), followed by slow air cooling, reduces residual stresses introduced by the welding thermal cycle and refines the grain structure in the HAZ. For many repairs on existing aircraft, full heat treatment of the entire assembly is impractical, and the FAA accepts normalized local conditions when proper technique was used and the repair data (such as an FAA-approved repair manual, STC, or DER-approved data) permits it.
Inspection of completed 4130 welds relies on visual examination as the primary method, supplemented by dye-penetrant inspection (DPI) to reveal surface-breaking cracks, and sometimes magnetic particle inspection (MPI) — 4130 is ferromagnetic and responds well to MPI. Radiographic (X-ray) inspection may be specified for critical joints in certified aircraft. Visually, an acceptable weld should show complete fusion, consistent bead width, no undercut deeper than 10 percent of base metal thickness, no cracks, no excessive porosity, and smooth tie-ins at start and stop points.
Why It Matters for Airframe Safety
Engine mounts, landing gear attach fittings, and primary fuselage truss members fabricated from 4130 are subjected to high dynamic loads, vibration, and fatigue cycles throughout an aircraft's service life. A weld with hidden cracks, excessive porosity, or a brittle HAZ may appear perfectly acceptable on the ramp but fail under the peak loads of a hard landing or turbulence encounter. This is why the FAA requires that all welding on certificated aircraft structures be performed by appropriately rated technicians working from approved data, and why the AMT airframe knowledge test places significant emphasis on understanding — not just recognizing — the principles behind the process.
Key Numbers and Rules
- 4130 carbon content: approximately 0.28–0.33 percent
- Normalized tensile strength: approximately 90,000 psi
- Preheat required for sections thicker than approximately 3/16 inch (4.8 mm)
- Preheat range for heavy sections: 300°F–400°F (149°C–204°C)
- Stress-relief temperature range: approximately 1,000°F–1,200°F (538°C–649°C)
- Preferred flame for OAW: neutral flame (equal oxygen and acetylene)
- Preferred shielding gas for TIG: pure argon
- Common filler metals: ER70S-2 or ER80S-D2
Common Test Traps
- Carburizing vs. neutral vs. oxidizing flame: The FAA test frequently asks which flame is correct for welding steel. A carburizing (excess acetylene) flame adds carbon to the weld pool, promoting brittleness. An oxidizing (excess oxygen) flame burns the metal. Only the neutral flame is correct for 4130 steel.
- Confusing stress relief with annealing: Stress relief at 1,000–1,200°F does not fully soften the metal like a full anneal does — it reduces residual stress while preserving most of the mechanical properties. The FAA exam distinguishes these processes.
- Assuming 4130 never needs preheat: Because 4130 is known for good weldability, students sometimes assume preheating is never needed. This is wrong — preheat is required for sections above approximately 3/16 inch wall thickness.
- Filler metal mismatch: Using a high-carbon or dissimilar filler rod can introduce brittleness or galvanic incompatibility. Always verify filler classification matches the approved data for the repair.
- Ignoring the HAZ in inspection: Cracks from welding almost always initiate in the HAZ, not in the weld bead itself. Inspectors who focus only on bead appearance and ignore the surrounding base metal miss the most common failure zone.
