Aircraft electrical systems are not limited to the direct current (DC) circuits that power most simple loads. A growing portion of modern aviation—from large transport-category aircraft to sophisticated general aviation platforms—relies on alternating current (AC) to power everything from flight instruments and avionics buses to galleys and lighting systems. To properly inspect, troubleshoot, and maintain these systems, an Aviation Maintenance Technician (AMT) must understand how AC differs from DC and, more specifically, how an AC waveform is described mathematically and practically. Three fundamental properties define any AC waveform: frequency, amplitude, and phase. Mastering these three concepts is the foundation of AC circuit analysis.
Unlike DC, which flows in one direction at a relatively steady voltage, AC periodically reverses its direction of current flow. This reversal is produced by rotating generators (alternators), and the result is a smoothly varying voltage that rises to a positive peak, falls back through zero, drops to a negative peak, and returns to zero again—completing one full cycle. The shape of this variation, when plotted against time, is a sine wave, so named because it follows the mathematical sine function. The sine wave is the natural, most efficient output of a rotating machine, and it is the standard waveform used throughout aviation electrical systems.

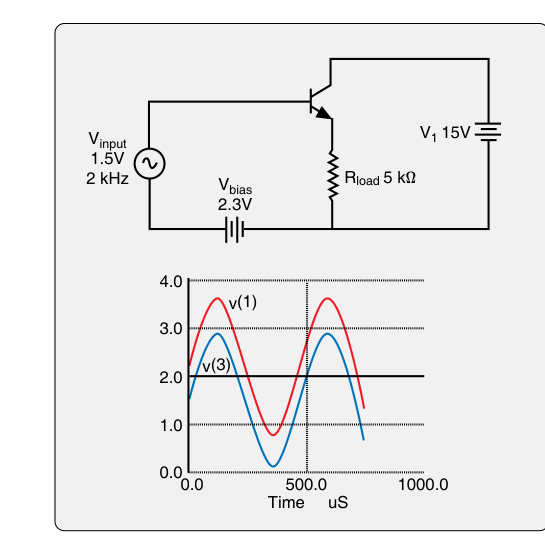

How AC Waveforms Are Described
Frequency
Frequency is the number of complete cycles that occur in one second, and it is measured in hertz (Hz). One hertz means one full cycle—positive peak, zero crossing, negative peak, and return to zero—happens exactly once per second. Aircraft AC power systems in the United States and most of the world operate at 400 Hz, compared to the 60 Hz used in household current. The choice of 400 Hz for aviation is deliberate: at higher frequencies, transformers and motors can be made much smaller and lighter for the same power output, a critical advantage in aerospace applications. Some older or simpler aircraft use 60 Hz or variable-frequency AC, but 400 Hz is the standard for most commercial and military aviation.
The period of a waveform is directly related to frequency—it is simply the time required to complete one full cycle. Period (T) equals 1 divided by frequency (f), or T = 1/f. For a 400 Hz system, the period is 1/400 = 0.0025 seconds, or 2.5 milliseconds. Understanding this relationship helps a technician interpret oscilloscope displays when checking AC output quality.
Amplitude
Amplitude describes the magnitude, or strength, of the AC voltage or current. Because AC is constantly changing, there are several ways to express amplitude, and the FAA knowledge test distinguishes carefully among them.
- Peak value: The maximum instantaneous voltage reached during a cycle, measured from zero to the highest point of the sine wave. This is sometimes called the crest value. It represents the absolute maximum stress placed on insulation and components.
- Peak-to-peak value: The total voltage measured from the positive peak to the negative peak. For a symmetrical sine wave, this is exactly twice the peak value. An oscilloscope reading of peak-to-peak is common during bench testing.
- Instantaneous value: The voltage or current at any specific instant in time. Because the sine wave is continuously changing, the instantaneous value varies from zero to the peak and back with every cycle. It is calculated as the peak value multiplied by the sine of the angle at that instant (e = Epeak × sin θ).
- Root Mean Square (RMS) value: The most practically important amplitude measurement. RMS is the equivalent DC value that would produce the same heating effect in a resistive load. A voltmeter set to AC will display RMS voltage by default. For a pure sine wave, RMS equals the peak value multiplied by approximately 0.707. Conversely, peak voltage equals RMS voltage multiplied by approximately 1.414. Aircraft 115-volt AC systems are specified in RMS; the actual peak voltage in such a system is about 163 volts.
- Average value: The mathematical average of all instantaneous values over one half-cycle (the full cycle averages to zero because positive and negative halves cancel). For a sine wave, the average value equals the peak value multiplied by approximately 0.637. Average values are used in certain rectifier and meter calculations.
The relationship between these values is fixed for a pure sine wave, and technicians use these conversion factors constantly when measuring or specifying AC circuit parameters. A system rated at 115V AC RMS has a peak of roughly 163V and a peak-to-peak of roughly 326V—numbers that matter when selecting wire insulation ratings or capacitor voltage ratings.
Phase
Phase describes the timing relationship of a waveform relative to a reference point or relative to another waveform. Phase is measured in degrees, because one full cycle of a sine wave corresponds to 360 degrees of rotation in the generating machine. When two AC waveforms have the same frequency but their peaks and zero-crossings do not coincide, they are said to be out of phase with each other. The angular difference between them is the phase angle.
Phase relationships become critically important in several practical situations. In AC circuits containing inductors or capacitors—not just pure resistors—the current and voltage are out of phase with each other. In a purely inductive circuit, current lags voltage by 90 degrees. In a purely capacitive circuit, current leads voltage by 90 degrees. In real circuits combining resistance, inductance, and capacitance (RLC circuits), the phase angle is somewhere between these extremes and directly affects the power factor of the circuit, which in turn determines how efficiently electrical power is being converted to useful work.
Phase is also fundamental to three-phase AC power, which is standard on large aircraft. In a three-phase system, three separate AC voltages are generated simultaneously, each displaced by exactly 120 degrees from the others. This arrangement allows for more efficient power generation and transmission, smoother motor operation, and the ability to supply both single-phase and three-phase loads from the same source. Aircraft generators and alternators producing three-phase power are smaller and more efficient than equivalent single-phase machines, which is why three-phase AC dominates in transport-category aircraft.
Why It Matters for the AMT
A technician who does not understand frequency, amplitude, and phase will misinterpret meter readings, make incorrect component substitutions, and may create unsafe conditions. For example, a component rated for 60 Hz operation may fail prematurely or malfunction in a 400 Hz aircraft system even if the voltage appears correct, because its internal inductance and impedance change dramatically with frequency. Similarly, substituting a capacitor rated for peak voltage when only the RMS rating is known could result in a component that is underrated by a factor of 1.414—leading to insulation breakdown. Phase errors in three-phase wiring can cause motors to run backwards, overheat, or fail to develop full torque.
When using an oscilloscope—an essential tool for AC troubleshooting—the technician reads peak-to-peak voltage directly from the screen and must convert to RMS for comparison against system specifications. Understanding waveform shape is equally important: a distorted sine wave (one with flat tops, clipping, or irregular zero crossings) indicates generator or inverter problems that will not always be obvious with a simple voltmeter.
Key Numbers and Rules
- Aircraft AC standard frequency: 400 Hz (household US standard is 60 Hz).
- Period formula: T = 1/f (at 400 Hz, T = 2.5 milliseconds).
- RMS = Peak × 0.707 (equivalently, Peak = RMS × 1.414).
- Average = Peak × 0.637 (used in rectifier and meter calculations).
- Peak-to-peak = 2 × Peak.
- Standard aircraft single-phase AC voltage: 115V RMS (peak ≈ 163V).
- Standard aircraft three-phase AC voltage: 115/200V (115V phase-to-neutral, 200V phase-to-phase).
- Phase displacement in three-phase systems: 120 degrees between each phase.
- Inductive circuits: current lags voltage (remember: ELI—voltage E leads current I in an inductor L).
- Capacitive circuits: current leads voltage (remember: ICE—current I leads voltage E in a capacitor C).
Memory Aid
ELI the ICE man is the classic mnemonic for phase relationships in reactive circuits. In an Electromagnetic (inductive, L) circuit, Electromotive force (voltage, E) leads I (current)—giving you ELI. In a Capacitive circuit, I (current) leads E (voltage)—giving you ICE. Putting them together: ELI the ICE man. This single phrase correctly summarizes the phase relationship for both inductors and capacitors and is one of the most universally tested concepts in AC electricity for AMT exams.
Common Test Traps
- Confusing RMS and peak values: The FAA exam frequently gives a peak voltage and asks for RMS, or vice versa. Always identify which value is given before applying the 0.707 or 1.414 conversion factor. Applying the wrong factor is the most common calculation error.
- Assuming aircraft AC is 60 Hz: Students familiar with household electricity often assume 60 Hz. Aircraft AC is 400 Hz—a fact the exam tests directly, sometimes by asking why aircraft components are smaller and lighter than equivalent ground-based equipment.
- Forgetting that average value covers only a half-cycle: The full-cycle average of a sine wave is zero (positive and negative halves cancel). The average value of 0.637 × peak applies to one half-cycle only, as used in rectifier calculations.
- Misidentifying leading vs. lagging phase: Questions about whether current leads or lags voltage in inductive or capacitive circuits are very common. A memorized rule without understanding gets reversed under pressure—use ELI the ICE man and double-check which quantity (E or I) comes first in the mnemonic.
- Applying single-phase voltage values to three-phase systems: In a three-phase 115/200V system, 115V is the phase-to-neutral voltage and 200V is the phase-to-phase voltage. Mixing these up when identifying wire ratings or transformer connections is a common and potentially dangerous error.
