Engine Mount Inspection and Replacement Procedures

Engine mounts serve a purpose far more critical than simply bolting a powerplant to an airframe. They are load-bearing structural components that must absorb engine torque, thrust, vibration, and gyroscopic forces while holding the engine in precise alignment with the propeller thrust line. When an engine mount develops a crack, corrodes through, or its isolators degrade, the consequences can range from persistent cabin vibration to catastrophic in-flight separation. For aviation maintenance technicians (AMTs), understanding how to inspect, evaluate, and replace these assemblies correctly is a fundamental powerplant competency covered under 14 CFR Part 43 and the guidance provided in FAA-H-8083-32, the Aviation Maintenance Technician Handbook — Powerplant.

This article walks through the types of engine mounts used on certificated aircraft, the specific inspection criteria an AMT must apply, and the step-by-step replacement procedures that protect both the aircraft's continued airworthiness and the technician's legal standing.

Types of Engine Mounts

Most light aircraft use one of two basic mount designs. Welded tubular steel mounts are the most common configuration for reciprocating-engine aircraft. They are fabricated from chrome-molybdenum (4130) steel tubing and are welded into a truss or ring structure that bolts to the firewall or fuselage structure. Their strength comes from the triangulated geometry of the tubes, which converts complex engine loads into pure tension and compression that each tube can efficiently handle.

Machined or forged titanium and steel-alloy mounts appear on turbine-powered aircraft, where resistance to high temperatures is paramount; aluminum, while valued elsewhere for its weight savings, is generally unsuitable for the high-temperature environment near turbine engine mounts and is more commonly used in cooler areas of the airframe. These mounts may incorporate thrust links, torque arms, or pad fittings specific to the engine model. Regardless of material, virtually all modern mounts incorporate vibration-isolating bushings — often called Lord mounts or dynafocal mounts — which are rubber-bonded-metal elements that cushion engine vibration from reaching the airframe and passenger cabin.

How Engine Mounts Work

A typical dynafocal mount arrangement angles the isolation bushings so that their centerlines converge toward a focal point near the engine's center of gravity — a simplified description commonly used in AMT training materials to explain the design intent. This geometry means that when the engine rocks or vibrates, the isolators compress and shear in a coordinated way that minimizes the transmission of oscillatory forces to the airframe. The result is substantially reduced cockpit vibration and lower structural fatigue in the firewall area.

The steel tubes of a welded mount work in concert: some carry tension loads during power application while others carry compression. The welds at each cluster node are the highest-stress points in the assembly. Understanding this load path is critical during inspection — a crack initiating at a weld toe is not cosmetic; it signals that the load path has been compromised and will worsen rapidly under continued cyclic loading.

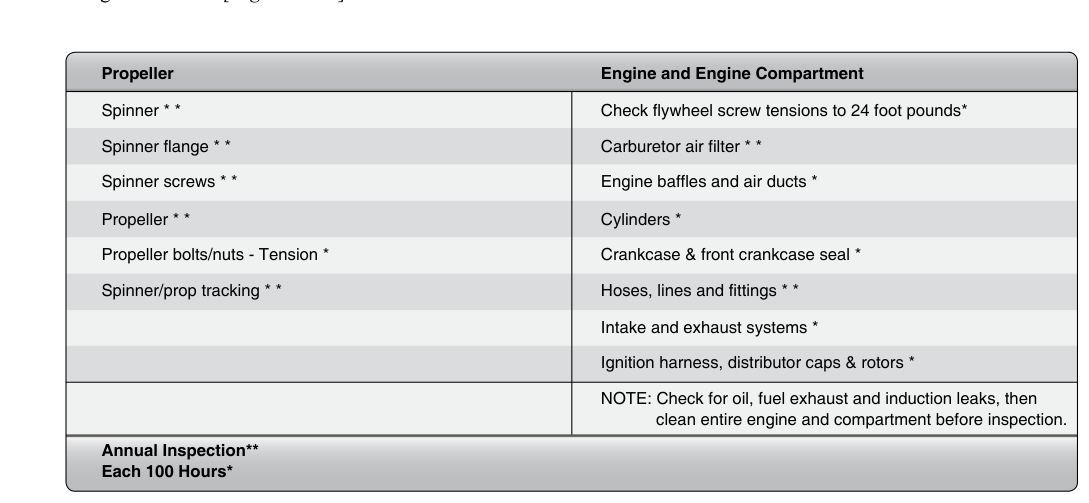

Inspection Criteria and Procedures

Before any inspection, consult the applicable manufacturer's maintenance manual, Instructions for Continued Airworthiness (ICA), and any relevant Airworthiness Directives (ADs). The FAA requires that maintenance be performed in accordance with manufacturer's instructions or other FAA-accepted data under 14 CFR §43.13. The following inspection steps represent the standard approach described in FAA-H-8083-32.

Visual Inspection

Begin with a thorough cleaning of the entire mount assembly using an approved solvent. Accumulated grease, oil, and dirt can hide cracks and corrosion. After cleaning and drying, examine every weld bead and heat-affected zone under good lighting. Look for:

• Cracks — appearing as hairline discontinuities, often radiating from weld toes or from notches where tubes join. As a general rule of thumb, any crack in a structural weld is cause for rejection of the component, though the applicable manufacturer's maintenance manual or ICA should always be consulted for the specific inspection and rejection criteria.
• Corrosion — surface rust on 4130 steel is common, but pitting corrosion that reduces tube wall thickness is unacceptable. Determine the extent and depth of any pitting before making an airworthiness call, referencing manufacturer limits.
• Dents and deformation — even a minor dent in a compression tube changes its buckling strength. Consult the manufacturer's manual for allowable dent dimensions; most limit dents to a small fraction of the tube diameter in depth.
• Bent or bowed tubes — any measurable bow in a structural tube is a red flag. Compare visible geometry against the maintenance manual's dimensional tolerances.

NDT Methods for Engine Mounts

Visual inspection alone cannot detect subsurface cracks or tight surface cracks obscured by paint. Magnetic particle inspection (MPI) is the preferred nondestructive testing (NDT) method for ferromagnetic 4130 steel mounts. It reveals surface and near-surface discontinuities by detecting the leakage flux field around a defect when the part is magnetized. Dye penetrant inspection (DPI) is used on non-ferromagnetic materials (aluminum, titanium) and on welded steel where surface-only detection is needed. Some manufacturers specify dye penetrant as the routine method; always follow the ICA. After any hard landing or propeller strike, NDT inspection of the mount is typically mandatory per the manufacturer's instructions.

Vibration Isolator Inspection

Rubber vibration isolators degrade through compression set, ozone cracking, oil impregnation, and thermal breakdown. Inspect each isolator for:

• Visible cracking or crazing of the rubber element
• Separation of the rubber from its bonded metal inserts
• Excessive softening or mushrooming (compression set), which may show as the bolt bottoming out before the isolator is properly loaded
• Oil saturation — oil dissolves rubber compounds and causes rapid deterioration; any isolator soaked with engine oil should be replaced

Most manufacturers specify replacement of isolators at every engine change or at a defined calendar interval, regardless of apparent condition. Never mix isolators of different part numbers or hardness ratings in the same mount assembly — mismatched isolators can cause uneven load distribution and premature failure.

Engine Mount Replacement Procedures

Replacement of an engine mount is a significant maintenance task that must be performed by, or under the direct supervision of, an appropriately rated AMT (powerplant rating required) using approved data. Record all work in the aircraft maintenance records as required by 14 CFR §43.9.

1. Engine support: Before removing any mount bolts, support the engine with an appropriate engine hoist or engine stand attached to the engine's lifting points. Never rely solely on cowling or accessory attachments. Ensure the support can handle the full engine weight safely.
2. Identify and tag hardware: Photograph and label the location of all engine control cables, fuel and oil lines, electrical leads, and breather tubes before disconnection. Many technicians also label each mount bolt location, as bolt lengths and grades may vary by position.
3. Remove mount bolts systematically: Loosen all mount attachment bolts before removing any completely. Work in a cross pattern similar to torquing a cylinder head — this prevents the mount from tilting and binding on remaining fasteners. Keep track of all washers, spacers, and bushings as they are removed.
4. Inspect the airframe attach points: With the mount removed, inspect the firewall gussets, longerons, or fuselage structure at the attachment points for corrosion, cracking, or elongated bolt holes. Elongated holes indicate the mount has been moving and must be addressed before installing any replacement.
5. Install new mount: Position the replacement mount — ensuring it is the correct part number for the aircraft make, model, and serial number range. Install all attaching hardware finger-tight before final torquing. Use new AN hardware of the correct grip length. Apply torque values specified in the manufacturer's maintenance manual, not generic torque charts, as mount fasteners often have specific values that differ from standard tables. Install and torque in a cross pattern.
6. Install new isolators if applicable: If isolators are separate from the mount weldment, install them now using the manufacturer's procedure. Some isolators require pre-loading or a specific compression to seat correctly.
7. Reconnect engine systems: Reinstall all fuel, oil, and control connections using your earlier photographs and labels as guides. Torque all fittings to specification and safety wire or cotter pin as required.
8. Alignment check: After mount installation and before reinstalling the engine (if it was removed), verify mount alignment against the manufacturer's datum. Misalignment causes propeller to be out of the intended thrust line, contributing to vibration and asymmetric loading.
9. Ground run and inspection: After the engine is reinstalled and all systems are reconnected and verified, perform a ground run per the aircraft's run-up checklist. After shutdown, re-inspect all mount attach points for leaks, security, and any movement of hardware.

Why It Matters

A failed engine mount can result in the engine shifting under power, disrupting propeller alignment, damaging fuel and oil lines routed near the mount, and in extreme cases causing in-flight separation of the powerplant. The FAA classifies engine mounts as primary structural components, meaning that any repair or replacement must meet the same stringent data and documentation standards as airframe structural work. Additionally, a propeller strike — even one that seems minor — often transmits enough impulse load through the mount to initiate cracking; manufacturers nearly universally require mount inspection as part of their propeller strike inspection procedures.

Key Numbers and Rules

• Engine mounts on certificated aircraft must be maintained per the manufacturer's ICA and 14 CFR §43.13 approved data.
• As a general rule of thumb, any crack in a welded structural tube or weld bead is cause for rejection — but always verify specific rejection criteria against the applicable manufacturer's maintenance manual or ICA.
• Dye penetrant or magnetic particle inspection is required after any propeller strike or hard landing, per most manufacturer's maintenance manuals.
• Isolators should be replaced as a complete matched set — never mix part numbers or hardness ratings.
• All work must be documented per 14 CFR §43.9, including the date, description of work, and the technician's certificate number and signature.
• Whether an engine mount repair is classified as a major repair requiring FAA Form 337 depends on the nature of the work performed, per 14 CFR Part 43 Appendix A — a routine replacement of an approved mount with an identical approved part per the maintenance manual is generally not a major repair, while more extensive structural repairs typically are and must use FAA-approved data (manufacturer instructions, FAA-DER data, or equivalent).

Common Test Traps

• Assuming a small crack is acceptable: As a general rule of thumb, any crack in an engine mount structural weld is treated as a rejection item on the test. The written test may offer a scenario where the crack is described as tiny or hairline — the correct answer is still rejection.
• Confusing NDT methods: Magnetic particle inspection works only on ferromagnetic materials (steel). Dye penetrant is appropriate for aluminum and titanium mounts. Using the wrong method may miss critical defects.
• Overlooking isolator condition: Students sometimes focus entirely on the steel structure and miss questions about rubber isolator inspection criteria — oil saturation, compression set, and cracking are all cause for replacement.
• Ignoring attach point inspection: The test may ask what must be inspected when replacing a mount. The correct answer includes the airframe attach points (firewall fittings, gussets, longeron structure), not just the mount itself.
• Documentation errors: A major repair to an engine mount (as classified under 14 CFR Part 43 Appendix A) requires an FAA Form 337 in addition to the standard maintenance record entry, while a routine replacement using approved data typically requires only a §43.9 entry. Confusing which category a given repair falls into is a common test error.
