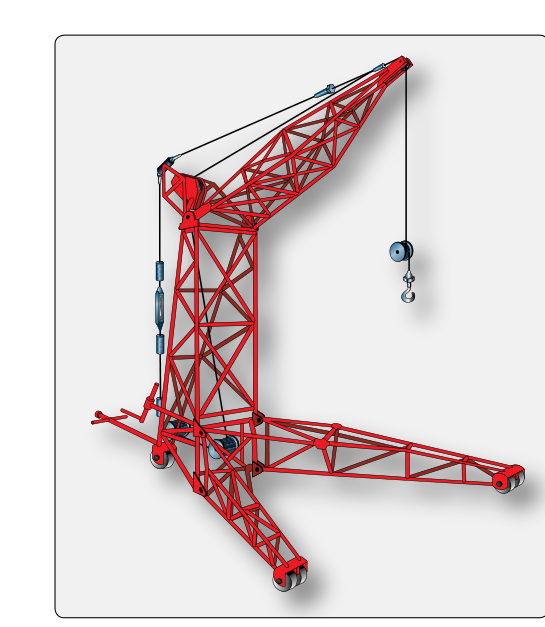

When an aircraft engine is removed for overhaul, replacement, or major inspection, the fuel system must be carefully and methodically disconnected before the engine can be separated from the airframe. This procedure is far more than a simple plumbing task — it sits at the intersection of fire safety, system integrity, and regulatory airworthiness. A single improperly capped line or a carelessly spilled puddle of fuel in an enclosed maintenance hangar can result in catastrophic consequences. Every Aviation Maintenance Technician (AMT) working in the powerplant discipline must understand the sequence, the hardware involved, and the reasoning behind each step.
This article walks through the principles, procedures, and regulatory grounding for fuel system disconnection and capping as they apply to piston and turbine engine removal on certificated aircraft. The guidance here is rooted in the Aviation Maintenance Technician Handbook — Powerplant (FAA-H-8083-32) and the General volume (FAA-H-8083-30), as well as the applicable 14 CFR Part 43 requirements for maintenance record-keeping and return to service.
Why Fuel System Disconnection Demands Special Care
Aviation fuel — whether 100LL avgas or Jet-A — is highly flammable and, in the case of avgas, also highly volatile. The flash point of 100LL avgas is commonly cited around −50°F (approximately −45°C), which means it produces ignitable vapors at virtually any ambient temperature encountered in maintenance. Jet-A has a specified minimum flash point of 100°F (38°C) per ASTM D1655, but its vapors are still hazardous in confined spaces and around ignition sources such as shop lighting, power tools, or even static discharge. The fuel system on a certificated aircraft is also a closed, pressurized or gravity-fed circuit; disconnecting a fitting without first accounting for residual pressure or trapped fuel can result in an unexpected spray of flammable liquid.
Beyond fire risk, improper disconnection and capping creates contamination risk. Any dirt, debris, or moisture that enters an open fuel line can migrate downstream and foul injectors, carburetors, flow dividers, or fuel control units — components that are extremely sensitive and expensive to repair. Capping is therefore both a safety measure and a quality-assurance measure that protects systems that may otherwise sit open for hours or days during engine removal and installation.
Preparation Before Any Line Is Touched
Before a single B-nut is loosened, the technician must complete a defined set of preparatory steps. First, defuel or isolate the fuel supply. On aircraft with fuel shutoff valves, the valve serving the engine compartment must be placed in the closed (OFF) position and — in many shops — locked or placarded to prevent inadvertent reopening. On aircraft without a firewall shutoff valve, partial or complete defueling of the affected tank(s) may be required. The AMT should consult the aircraft maintenance manual (AMM) for the specific model, as procedures vary significantly between aircraft types.
Second, verify ignition is OFF and the master switch is de-energized. On turbine aircraft, confirm that all fuel boost pumps and engine-driven pumps are confirmed inoperative. Pressurized fuel lines — such as those downstream of a boost pump that was recently energized — must be allowed to depressurize, or pressure must be relieved through the procedure specified in the AMM. Attempting to disconnect a pressurized fitting under avgas pressure will produce a spray hazard.
Third, gather all required capping and plugging hardware before beginning. This means having the correct-size caps, plugs, and covers on hand so that no open line ever sits unprotected while the technician goes looking for hardware. Industry and AMM practice calls for using dedicated aviation-grade caps and plugs — not tape, shop rags, or makeshift covers — to ensure a positive seal and prevent contamination.
Disconnection Sequence and Technique
The AMM for the specific aircraft and engine combination dictates the exact sequence. However, several universal principles apply across most powerplant removals:
- Work from the engine side inward. Begin disconnecting at the fitting closest to the engine accessory case or firewall, working progressively toward the airframe fuel system. This minimizes the length of open line exposed on the airframe side and contains any residual fuel to the engine side where it can be drained into appropriate receptacles.
- Use two wrenches at every B-nut or AN fitting. A backup wrench holds the fitting body while the other loosens the nut. Failing to use a backup wrench risks twisting soft aluminum tubing or cracking rigid lines — damage that may not be visible until a pressure test reveals a leak after reinstallation.
- Control residual fuel. Have lint-free rags and an appropriate drip pan positioned before loosening any fitting. Even a line that appears empty may contain several ounces of trapped fuel; larger fuel manifold lines may contain significantly more. Used fuel-soaked rags must be placed immediately in a fire-safe, covered metal container and disposed of per shop hazmat procedures.
- Tag every disconnected line. Using durable tags (or referencing the numbered illustrations in the AMM), identify each disconnected line at both the airframe end and the engine end. This tagging prevents reassembly errors and ensures the technician or a different crew member can correctly reconnect each line during installation without guessing.
- Install caps or plugs promptly — never leave a line open longer than necessary. As soon as a fitting is separated, the open end should be capped to prevent contamination and minimize fuel exposure. Airframe-side open fittings receive caps or plugs. Engine-side ports receive the matching plugs specified in the engine manufacturer's preservation or storage documentation.
Types of Caps, Plugs, and Covers
The hardware used to seal disconnected fuel lines and ports is not interchangeable at random. AN-standard caps and plugs are sized to match the AN/MS flare fittings common throughout certificated aircraft fuel systems. These caps thread onto the exposed male fittings and create a positive mechanical seal. For straight-thread port openings on accessory housings, appropriate threaded plugs — often with aluminum or steel composition matching the housing material — are specified in the engine preservation guide.
Larger openings such as fuel manifold inlets or flow divider ports may require rubber-plugged covers or plastic protective caps secured with safety wire or locking features. On turbine engines, the engine manufacturer's overhaul or removal manual will specify whether preservative oil should be introduced into certain fuel system ports before they are capped, to prevent corrosion during storage. This is especially important when engine removal is expected to last more than a short period.
Under no circumstances should ordinary plastic wrap, masking tape, duct tape, or foam plugs from shipping packaging be used as substitutes for proper aviation hardware. These materials may not seal against fuel vapor, can shed debris into the line, and may not be noticed missing before return to service.
Regulatory and Documentation Requirements
Under 14 CFR Part 43, whether engine removal and reinstallation constitutes a major repair or alteration depends on the specific work performed, as defined in Part 43 Appendix A; routine removal and reinstallation performed in accordance with the AMM is not automatically a major repair. Regardless of classification, the work must be performed by a properly certificated AMT or repair station in accordance with manufacturer's data or other FAA-approved data. The AMT must make an appropriate entry in the aircraft maintenance records upon completion, describing the work performed, the date, and signing with their certificate number.
The aircraft maintenance manual is the primary approved data source for disconnection and capping procedures on a specific model. Advisory Circular AC 43.13-1B, Acceptable Methods, Techniques, and Practices — Aircraft Inspection and Repair, provides general acceptable practices for plumbing, fitting installation, and fuel line handling that supplement manufacturer data where the AMM is silent on a specific detail.
Key Numbers and Rules
- 100LL avgas has a flash point commonly cited around −50°F (approximately −45°C) — treat it as ignitable at all ambient shop temperatures.
- Jet-A has a specified minimum flash point of 100°F (38°C) per ASTM D1655, but still requires full fire-precaution protocols indoors.
- Every open fuel line end should be capped promptly after disconnection to prevent contamination and fuel exposure.
- Two-wrench technique is required at all AN/B-nut fittings to prevent tube or fitting damage.
- All disconnected lines must be tagged for identification per the applicable AMM reference.
- Fuel-soaked rags must go into a covered, fire-safe metal container immediately.
- Maintenance entries under 14 CFR 43.9 are required upon completion of maintenance work, including engine removal and reinstallation.
Common Test Traps
- Forgetting to verify the fuel shutoff is closed AND placarded. The FAA expects the technician to prevent inadvertent reopening during maintenance, not merely to close the valve and move on.
- Assuming a fuel line is empty because the valve is closed. Residual fuel is almost always present in disconnected lines; always position a drip pan and have rags ready before breaking any fitting.
- Using makeshift capping materials. Test questions and practical scenarios often present tape or rags as a quick solution — these are never acceptable substitutes for proper caps and plugs.
- Skipping line tagging under time pressure. Unlabeled lines are a significant reassembly hazard. The FAA expects positive identification of all disconnected lines regardless of how obvious their routing may seem.
- Confusing the order of documentation. Maintenance records must reflect what was actually done; entries cannot be made in advance of the work, and under 14 CFR 43.9 an appropriate record entry is required for maintenance performed, including engine removal.
Mastering fuel system disconnection and capping is a foundational powerplant skill. It demands equal parts procedural discipline, safety awareness, and respect for the hardware. When performed correctly — every line tagged, every fitting capped, every drop of fuel accounted for — it sets the stage for a successful engine installation and a safe return to service.
