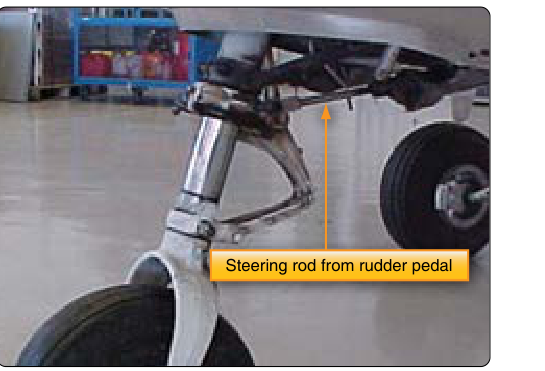

Push-pull rods are the rigid links that transfer pilot inputs through a primary or secondary flight control system. Unlike flexible cables, they can push as well as pull, making them well-suited for ailerons, elevator linkages, flap actuators, and numerous other control runs where a definite, non-elastic connection is required. At each end of every push-pull rod sits a rod end bearing — a threaded fitting that attaches to bellcranks, control horns, or brackets. Adjusting and safetying those rod end bearings correctly is one of the most fundamental — and most commonly tested — skills in airframe assembly and rigging.
This article covers the mechanics of rod end bearings, how to adjust thread engagement, how to verify alignment, and how to safety the assembly using the methods required by the FAA. Every point is grounded in the Aircraft Maintenance Technician Handbook – Airframe (FAA-H-8083-31) and supporting guidance in the Airframe and Powerplant Mechanics General Handbook (FAA-H-8083-30).
Anatomy of a Push-Pull Rod End
A typical rod end bearing consists of three parts: a threaded shank that screws into the tube end, a bearing housing, and a spherical (ball-type) bearing inside the housing. The spherical bearing allows angular movement without binding, compensating for small misalignments between the rod centerline and the attachment point as the control surface moves through its full travel. This angular freedom is critical — a rod end that cannot articulate freely will bind, creating stiff controls or worse, transferring bending loads into the rod tube itself.
Rod ends are manufactured with either right-hand or left-hand threads. On a typical push-pull rod, one end is right-hand threaded and the other is left-hand threaded. This arrangement allows the overall length of the rod to be adjusted by rotating the tube — turning the tube one direction lengthens the rod, turning it the other shortens it. The left-hand threaded end is usually identified by a groove or notch machined into the hex flats of the bearing body. Always visually confirm thread direction before attempting adjustment; forcing a left-hand rod end clockwise will strip threads and destroy the fitting.
Thread Engagement: The Most Critical Dimension
Thread engagement is the depth to which the threaded shank is screwed into the tube end fitting. Insufficient thread engagement is the single most dangerous error in push-pull rod rigging. If too few threads are engaged, the fitting can pull out under flight loads, resulting in immediate and catastrophic loss of control.
General industry guidance, including AC 43.13-1B's treatment of turnbuckle and rod end assemblies, holds that minimum thread engagement should not be less than the diameter of the threaded shank. For example, a rod end with a 3/8-inch diameter shank should have at least 3/8 inch of thread engaged inside the tube end. This is a general guideline, not a single FAA-mandated universal number — in practice, most manufacturers specify a specific minimum number of threads (often a minimum of six to eight threads of engagement), and the aircraft maintenance manual always takes precedence over the generic rule. Always consult the applicable maintenance manual and the original equipment manufacturer's data.
To verify engagement without disassembly, many tube-end fittings are provided with an inspection hole drilled through the side of the tube end or the threaded insert. When the shank is properly engaged, the hole is completely blocked — you cannot see through it or pass a wire through it. If you can see light or insert a wire through the inspection hole, the shank has not reached minimum engagement and the assembly must be adjusted. This inspection hole feature is described in AC 43.13-1B for turnbuckle-type assemblies and is a fast, reliable field check where present, though the maintenance manual for the specific rod end installation governs the required verification method.
Alignment Checks
After setting thread engagement, the technician must verify that the spherical bearing is not operating at an extreme angle in its installed position. Although the spherical bearing accommodates angular misalignment, it has a rated angular limit — typically expressed in degrees from the centerline of the shank. Operating a rod end beyond its angular rating causes abnormally high edge loading on the ball, accelerating wear and potentially causing the bearing to fracture.
Check alignment by observing the rod end in its neutral (faired) control position. The bearing inner race should appear roughly centered within the housing; there should be no visible cocking of the ball to one side. Move the control through its full travel and observe whether the bearing accommodates the movement smoothly with no binding. Binding at any point in the travel range indicates either a misaligned bracket, an incorrectly sized rod end, or a tube that is not the correct length. Binding must be corrected before the aircraft is returned to service.
Safetying Rod End Bearings
Once thread engagement and alignment are confirmed, the rod end must be safetied against rotation — specifically, it must be prevented from unscrewing in service. There are two primary methods used on certificated aircraft:
- Jam nut: A hex jam nut is threaded onto the shank before installation and tightened against the face of the tube end fitting after adjustment is complete. The jam nut locks the rod end in place by clamping the threads. It must be torqued to the value specified in the maintenance manual or, if no value is given, to the standard torque for the nut's size and thread type from the applicable torque table. After torquing, verify that the inspection hole is still covered — over-torquing can back the shank out slightly.
- Safety wire (locking wire): On some installations, especially in areas with high vibration, safety wire is threaded through a hole in the rod end shank or housing and anchored to prevent rotation. The wire must be installed in the correct tension direction so that the tendency of the fitting to rotate (unscrew) pulls the wire tighter rather than loosening it.
In most general aviation applications, the jam nut method predominates. The nut is tightened firmly but must never be used as a substitute for correct thread engagement — the jam nut prevents rotation but does not compensate for insufficient thread depth. Both the engagement and the safetying must be independently correct.
Why It Matters: Safety Implications
Flight control system failures are among the most immediately dangerous malfunctions in aviation. A push-pull rod that separates in flight — because a rod end pulled out — leaves the pilot with no mechanical path to move the affected control surface. Unlike a cable system where a broken cable may at least jam, a separated push-pull rod provides zero resistance, potentially causing the control surface to float or flutter to a destructive extreme. Flight control hardware performs a role whose failure can have a hazardous or catastrophic effect on the aircraft, so type certificate holders may formally designate specific parts as critical parts under FAA guidance such as AC 21-50 — and even where a specific part is not formally so designated, every installation must be inspected and documented with the same rigor as a primary structural element.
Regular inspection intervals for control system hardware are specified in the aircraft's inspection program (typically the 100-hour and annual inspection checklist). During those inspections, technicians must check rod ends for bearing play (both radial and axial looseness that exceeds manufacturer limits), corrosion on the shank threads, cracks in the tube adjacent to the end fitting, and correct jam nut tightness.
Key Numbers and Rules
- Minimum thread engagement: At least one full shank diameter of engagement, or the specific value in the maintenance manual — whichever is greater.
- Inspection hole check: Where provided, the hole must be fully blocked by the shank; light or a wire passing through means inadequate engagement.
- Left-hand threads: Identified by a groove or notch on the hex flats; always confirm direction before turning.
- Jam nut torque: Use the maintenance manual value; otherwise use the standard torque table for the applicable thread size and material.
- Angular limit: Do not exceed the rod end's rated angular misalignment; check bearing position at neutral and through full travel.
- Safety wire direction: Installed so that any tendency of the fitting to rotate-unscrew tightens the wire.
Common Test Traps
- Inspection hole confusion: Some students believe the inspection hole should be open (visible) to confirm the shank is inside the tube. The opposite is true — the hole must be blocked to confirm adequate engagement.
- Jam nut as a substitute for engagement: The jam nut prevents rotation only. It cannot compensate for insufficient thread engagement and does not increase pullout strength.
- Left-hand thread direction: Forgetting that one end of the rod is left-hand threaded leads to stripping. Always identify thread direction before rotating the rod tube or fitting.
- Torque sequence: Torquing the jam nut before final length adjustment is common on the bench but wrong in the aircraft. Always confirm length and alignment first, then torque and re-verify the inspection hole.
- Binding ignored during rigging: Test questions sometimes describe a scenario where everything is correctly adjusted at neutral but binding occurs at full deflection. The correct answer is always that binding is unacceptable and the cause must be found and corrected — not accepted because neutral position looks good.
