Walk through any modern aircraft hangar and you will notice a striking shift from the all-aluminum airframes of previous decades. Winglets, control surfaces, fuselage panels, and even primary structural members are now routinely fabricated from composite materials — engineered combinations of two or more distinct constituents that, when combined, produce properties neither material could achieve alone. For the Aviation Maintenance Technician (AMT) candidate, understanding what composite materials are, how their major types differ, and how those differences translate into structural behavior and maintenance considerations is not merely an exam requirement. It is a genuine safety foundation, because misidentifying a composite or using the wrong repair technique can introduce dangerous hidden flaws into a critical structure.
The FAA defines a composite material as a mixture of two or more materials in which the individual components retain their distinct identities yet act together to produce properties superior to either alone. In practice, aircraft composites almost always pair a reinforcing fiber — which carries structural load — with a matrix — which holds the fibers in position, transfers loads between them, and protects them from the environment. The fiber provides strength and stiffness; the matrix provides shape and distributes stress.
The Major Fiber Reinforcement Types
The reinforcing fiber is the primary driver of a composite's mechanical performance. Three fiber types dominate aviation: fiberglass, aramid, and carbon fiber. Each has a distinct profile of strength, stiffness, weight, cost, and repairability.
Fiberglass
Fiberglass — made by drawing molten glass into fine filaments — was the earliest composite reinforcement used widely in aviation and remains the most affordable and easiest to work with. Individual glass fibers are inherently strong in tension but become brittle when unsupported. When woven into fabric and embedded in a resin matrix, the combination resists bending, impact, and environmental exposure effectively. Two common aviation grades are E-glass (electrical grade, the standard for most aircraft fairings and secondary structures) and S-glass (structural grade, generally cited as roughly 30-40 percent stronger in tension than E-glass depending on source, used where higher performance is needed). Fiberglass is electrically non-conductive, relatively easy to inspect visually, and bonds reliably with both polyester and epoxy resins. Its main limitation is comparatively lower stiffness — it deflects more under a given load than carbon or aramid — which can be a drawback in precision aerodynamic surfaces.
Aramid Fiber (Kevlar)
Aramid fibers — commercially best known as Kevlar — are organic polymer fibers characterized by exceptional toughness and resistance to impact and abrasion. Pound for pound, aramid is significantly stronger in tension than steel. In aviation, aramid composites appear in helicopter rotor fairings, aircraft flooring, interior panels, and ballistic-resistant applications where impact energy absorption is paramount. Aramid fibers are bright yellow in color, which aids identification. However, they come with several important limitations: they absorb moisture readily (degrading strength over time), are very difficult to cut or machine (requiring special diamond-grit or carbide tools), and are notoriously hard to drill cleanly. Critically, aramid is weak in compression — meaning a purely aramid layup is poorly suited for components that primarily carry compressive loads. Maintenance technicians must be aware that a repaired aramid structure can hide delamination and impact damage that is not visible on the surface, making thorough inspection techniques essential.
Carbon Fiber (Graphite)

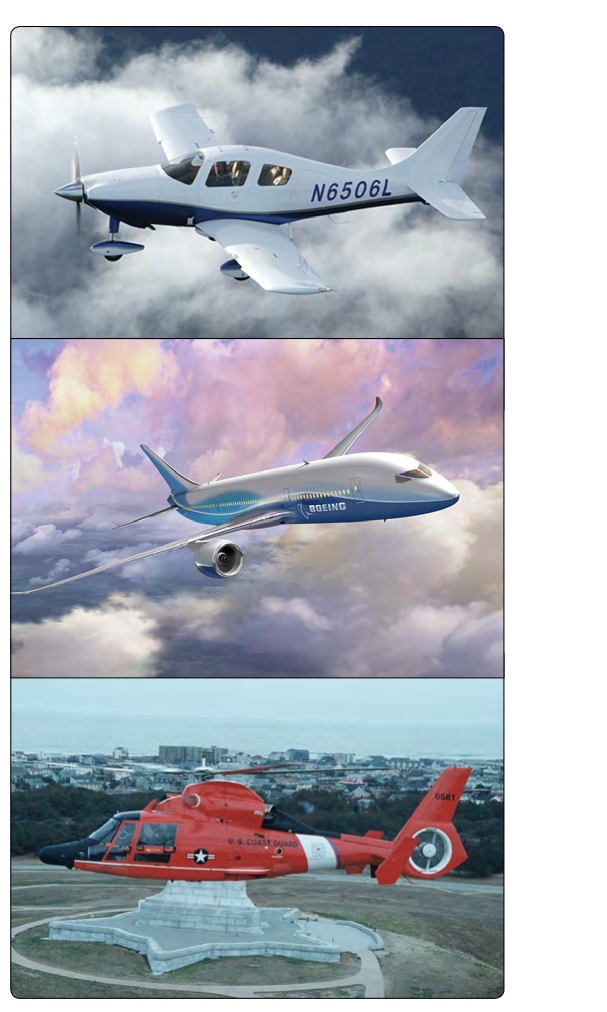

Carbon fiber, often called graphite fiber in FAA literature, is manufactured by oxidizing and then carbonizing (pyrolyzing) an organic precursor — most commonly polyacrylonitrile (PAN) — at very high temperatures. The result is a fiber that is simultaneously very stiff, very strong, and very light: carbon fiber composites can achieve strength-to-weight ratios substantially greater than steel, though the exact multiple varies considerably depending on fiber grade, layup, and the specific steel being compared, and stiffness superior to aluminum at a fraction of the weight. Modern commercial airliners such as the Boeing 787 use carbon fiber reinforced polymer (CFRP) for the majority of their primary structure. In general aviation, CFRP appears in spars, fuselage skins, and rotor blades. Carbon fiber is electrically conductive — a critical distinction from fiberglass — which introduces galvanic corrosion risk when carbon fiber contacts aluminum structure directly without proper isolation. Repair technicians must also exercise strict fiber orientation discipline during patch repairs, because the highly directional stiffness of carbon fiber means an incorrectly oriented ply drastically reduces the repair's load-carrying ability.
Matrix Systems: What Holds It All Together
The matrix binds and protects the fibers. In aviation composites, thermosetting resins are most common. Once cured (cross-linked by heat or chemical reaction), thermosets cannot be re-melted — they are permanently rigid. The three principal thermoset matrix systems in aircraft use are:
- Epoxy resin: The dominant matrix in modern aircraft composites, valued for excellent adhesion, low cure shrinkage, good fatigue resistance, and compatibility with carbon, aramid, and glass fibers. Epoxy systems are typically cured with heat in an autoclave or oven, though room-temperature-cure wet layup systems are used for many repairs.
- Polyester resin: Less expensive and easier to work with than epoxy, polyester shrinks more during cure and bonds less strongly to reinforcement fibers. Used mainly with fiberglass in non-critical secondary structures and fairings.
- Bismaleimide (BMI) and polyimide resins: High-temperature thermosets used in areas exposed to elevated operating temperatures, such as engine nacelles and exhaust fairings, where standard epoxies would degrade.
Thermoplastic matrices — which can be re-softened and re-formed with heat — are an emerging category in aviation (PEEK, PPS, and similar polymers). They offer improved toughness and repairability in principle, but their high processing temperatures make fabrication and field repair more complex. The AMT candidate should recognize thermoplastics as a distinct category but understand that most current aircraft structures still rely on thermoset systems.
Sandwich Structures and Core Materials
Many aircraft composite panels use a sandwich construction: two thin, stiff composite face sheets bonded to a lightweight core. This geometry produces a panel that is far stiffer and stronger in bending than a solid laminate of equivalent weight — analogous to an I-beam, where the core acts as the web and the face sheets act as the flanges. Common core materials include:
- Nomex honeycomb: Aramid paper formed into hexagonal cells and phenolic-resin coated. Light, strong, fire-resistant, and the most common core in aircraft control surfaces and floor panels.
- Aluminum honeycomb: Heavier than Nomex but very stiff; used where high compressive strength is needed and galvanic isolation from carbon fiber face sheets is ensured.
- Foam cores (PVC, polyurethane, syntactic foam): Used in general aviation and rotor blades; easier to contour but generally lower strength than honeycomb. Water absorption into foam or honeycomb cells is a major maintenance concern — trapped moisture adds weight and, in freezing conditions, can cause face-sheet disbonding.
Why Composite Type Identification Matters in Maintenance
An AMT must identify the composite type before performing any inspection or repair for several reasons. First, repair materials must be compatible with the original — mixing incompatible resin systems prevents proper bonding. Second, carbon fiber's electrical conductivity demands that any tools, drilling fixtures, or metal fasteners account for galvanic isolation. Third, each fiber type has a distinct damage signature: fiberglass damage is often visible as whitening (matrix cracking); carbon fiber damage may show no visible external sign whatsoever after a low-energy impact, making tap testing, ultrasonic inspection, or thermography essential. Fourth, the approved repair data — usually the aircraft's Structural Repair Manual (SRM) — specifies exact ply counts, orientations, and materials; substituting one fiber type for another without engineering approval is impermissible.
Key Numbers and Rules
- S-glass is generally cited as roughly 30-40% stronger in tension than standard E-glass, depending on source.
- Carbon fiber composites can offer strength-to-weight ratios substantially greater than structural steel, though the specific multiple varies by fiber grade and layup rather than being a fixed FAA-published figure.
- Aramid (Kevlar) fibers are identified by their characteristic yellow color; carbon fibers appear black; fiberglass ranges from white to light gray.
- Carbon fiber is electrically conductive; fiberglass and aramid are non-conductive — this distinction drives bonding and lightning protection design decisions.
- Sandwich structures derive bending stiffness from face-sheet separation, not face-sheet thickness alone — damage to the core is structurally significant even when face sheets appear intact.
- All composite repairs on certificated aircraft must comply with methods, techniques, and practices acceptable to the Administrator using approved data per 14 CFR 43.13, with acceptable data sources (SRM, FAA-approved repair specification, or DER-approved data) further described in guidance such as AC 43.13-1B.
Common Test Traps
- Confusing fiber properties: A common trap is attributing high compressive strength to aramid fiber. Aramid is outstanding in tension and impact, but weak in compression — the opposite of what many assume.
- Assuming carbon fiber damage is visible: Unlike fiberglass, which whitens visibly when the matrix cracks, carbon fiber structures can sustain significant internal delamination after impact with no outward sign. The test may present a scenario where visual inspection alone is deemed sufficient — it is not for carbon composites.
- Mixing resin systems: Applying a polyester resin over an existing epoxy structure (or vice versa) without engineering approval is incorrect and will not produce a structurally sound bond. Polyester resin in particular bonds poorly to cured epoxy because of epoxy's smooth, non-porous surface and lack of styrene-reactive sites, so resin systems should not be mixed without engineering approval and proper surface preparation.
- Ignoring galvanic corrosion risk: Questions about installing carbon fiber components adjacent to aluminum structure may seem like simple composite questions — but the correct answer always addresses the need for corrosion barrier materials between CFRP and aluminum to prevent galvanic attack on the aluminum.
- Overlooking moisture in sandwich cores: A disbonded or moisture-saturated honeycomb core that feels solid when tapped lightly may pass a casual tap test but fail under flight loads. Proper inspection requires systematic tap testing of the entire panel surface and, where indicated, NDT methods.
