Every time an aircraft engine draws fuel from a tank or a pilot commands a hydraulic actuator, fluid is moving through a network of tubing, hoses, valves, and pumps. Whether that fluid flows in smooth, orderly layers or in chaotic, swirling eddies determines how much pressure the pump must generate, how much heat is produced, and how quickly lines and fittings wear out. For the aviation maintenance technician (AMT), fluid dynamics is not abstract physics — it is the difference between a system that performs reliably across temperature extremes and altitudes, and one that cavitates, surges, or fails a bench test. This article examines the two fundamental flow regimes — laminar and turbulent — and explains how each applies to the fuel and hydraulic systems you will inspect, troubleshoot, and certify.
The Two Flow Regimes Explained
Imagine fluid moving through a transparent tube. In laminar flow, every molecule travels in a path parallel to the tube walls. You can think of the fluid as a series of concentric cylindrical shells sliding over each other, with the fastest-moving layer at the center and essentially stationary fluid right at the wall — a condition called the no-slip boundary condition. The result is a smooth, predictable velocity profile shaped like a parabola. There is no mixing between layers; a dye injected into the center of the tube would travel the entire length as a thin, unbroken thread.
In turbulent flow, that orderly structure breaks down. Random lateral velocities develop, causing fluid parcels to mix violently across the cross-section of the tube. The velocity profile flattens — fluid near the walls is moving much faster than in the laminar case, and the center velocity is only slightly higher than average. This continuous mixing creates eddies and vortices at every scale, converting kinetic energy into heat through viscous dissipation. The net effect is a significantly higher resistance to flow — and therefore a greater pressure drop for the same flow rate and pipe size.
Reynolds Number: The Governing Parameter
The British engineer Osborne Reynolds demonstrated in the 1880s that the transition between these two regimes is governed by a dimensionless ratio now called the Reynolds number (Re). It is defined as:
Re = (ρ × V × D) / μ
Where ρ is the fluid density, V is the average flow velocity, D is the internal diameter of the pipe, and μ is the dynamic (absolute) viscosity of the fluid. You do not need to memorize this formula for most practical AMT work, but understanding what drives Reynolds number is critical:
- Higher velocity increases Re, promoting turbulence.
- Larger diameter increases Re, promoting turbulence.
- Higher viscosity decreases Re, promoting laminar flow — which is why cold, thick hydraulic fluid at high altitude tends to stay laminar longer.
- Higher density increases Re, promoting turbulence — though in practice, viscosity differences dominate flow-regime behavior far more than the relatively small density differences between fuels like Jet-A and avgas.
As a practical rule derived from experimental data, flow in a smooth circular pipe is reliably laminar when Re is below approximately 2,300, reliably turbulent above approximately 4,000, and in a transitional state between those values. Real aircraft plumbing is rarely perfectly smooth or perfectly straight, so transitions can occur at lower Reynolds numbers, especially near bends, fittings, and valves.
Pressure Drop and the Hagen-Poiseuille Relationship
For laminar flow in a straight circular pipe, pressure drop follows a precise relationship: it is proportional to the flow rate, the pipe length, and the fluid viscosity, and inversely proportional to the fourth power of the internal diameter. That fourth-power relationship is enormously important in practice. Assuming the flow rate is held constant, cutting a hydraulic line's internal diameter in half — for example, by using an undersized replacement fitting — does not double the pressure drop; it multiplies it by sixteen. This is why AMTs must always verify that replacement tubing and fittings meet the original equipment manufacturer's specified internal diameter, not just the outside diameter or thread size.
In turbulent flow, pressure drop increases more steeply with velocity and depends on pipe roughness through a factor called the Darcy friction factor. Turbulent flow in an otherwise adequate line wastes pump energy as heat, raises fluid temperature, and can accelerate elastomeric seal degradation — especially in systems that use MIL-PRF-5606 or MIL-PRF-83282 hydraulic fluid.
Applications in Aircraft Fuel Systems
Aircraft fuel systems — from the simple gravity-feed arrangement of a light trainer to the complex boost-pump and crossfeed network of a transport category aircraft — are designed to maintain adequate fuel flow to the engine at all attitudes and power settings. The designer targets conditions that avoid both extremes: purely laminar flow is desirable in long, straight suction lines where low pressure drop is critical, while controlled turbulence in fuel-air mixture circuits can actually improve atomization and combustion efficiency in carburetor systems.
One of the most maintenance-relevant phenomena is cavitation. When local fluid pressure in a pump inlet or a tight bend drops below the vapor pressure of the fuel, small vapor bubbles form. When those bubbles collapse as pressure recovers downstream, the implosion releases energy that erodes metal surfaces. Cavitation is more likely when fuel is warm (reducing its vapor pressure margin), when the suction line is undersized or partially blocked (increasing velocity and lowering local pressure), or when the aircraft is at high altitude (lowering ambient pressure at the tank vent). AMTs troubleshooting unexplained pump wear or pitting on impeller surfaces should always evaluate the suction-side plumbing for undersized lines, kinked hoses, or clogged filters — all of which increase local velocity and promote the turbulence and pressure drops that precede cavitation.
Fuel venting is another area where flow regime matters. Tank vents must allow air to enter freely as fuel is consumed; if the vent is too small, negative pressure builds in the tank, restricting fuel flow regardless of pump capacity. Conversely, oversized vents in high-speed aircraft can allow ram-air pressure to over-pressurize the tank. These design trade-offs all trace back to understanding the relationship between flow velocity, tube geometry, and pressure.

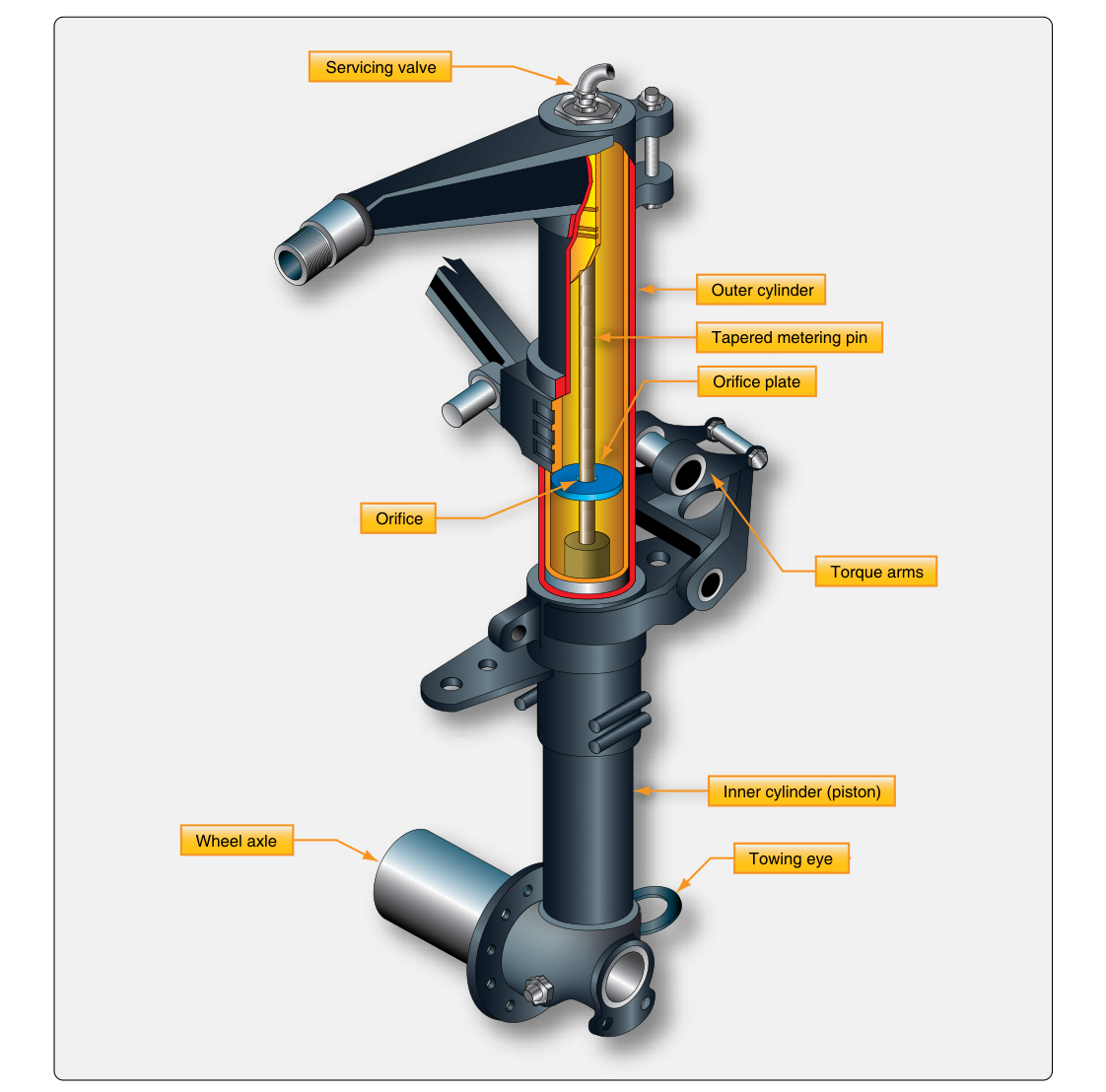

Applications in Aircraft Hydraulic Systems
Hydraulic systems typically operate at much higher pressures than fuel systems — general aviation aircraft commonly use systems in the 1,000–1,500 psi range, while transport category aircraft commonly operate at 3,000 psi, with some modern designs (such as the Boeing 787 and Airbus A380) reaching 5,000 psi. These figures are typical industry values rather than fixed FAA-published thresholds, and specific systems should always be verified against the aircraft's type design data. At these pressures, the consequences of turbulent flow and pressure-drop losses are amplified. System designers carefully select tubing sizes, bend radii, and fitting types to minimize unnecessary turbulence.
Viscosity is a critical variable in hydraulic systems. MIL-PRF-5606 (red-dyed mineral oil) and MIL-PRF-83282 (synthetic hydrocarbon, fire-resistant) have viscosities that change substantially with temperature. Cold fluid at high altitude is considerably more viscous, which lowers Reynolds number and keeps flow more laminar — but also means the pump must work harder to move the thicker fluid, increasing wear. Systems that use MIL-PRF-83282 offer better fire resistance but are noticeably thicker at low temperatures, which is why some operators mix it with MIL-PRF-5606 in cold-weather operations only when specifically approved by the aircraft manufacturer.
Sharp bends, tees, and quick-disconnect fittings all act as minor losses in hydraulic lines, inducing local turbulence even when the straight-section Reynolds number is below the critical threshold. Minimum bend radii for aircraft hydraulic tubing vary by tube material, diameter, and wall thickness and are specified in bend radius tables such as those in AC 43.13-1B, Chapter 7 — there is no single universal multiple of tube outside diameter that applies to all tubing. AMTs should always consult the applicable bend radius chart or the aircraft maintenance manual (AMM) rather than assume a fixed ratio, since the goal in every case is to minimize the turbulence-inducing separation of flow from the inner wall of the bend.
Key Numbers and Rules
- Reynolds number below ~2,300: flow is laminar in smooth, straight pipe.
- Reynolds number above ~4,000: flow is fully turbulent.
- Between 2,300 and 4,000: transitional — unpredictable and potentially unstable.
- Pressure drop in laminar flow varies with the fourth power of internal diameter (at a constant flow rate) — undersized lines have a disproportionately large effect.
- Minimum bend radius for aircraft hydraulic tubing depends on tube material, diameter, and wall thickness per AC 43.13-1B bend radius tables — always verify the aircraft maintenance manual (AMM) and applicable chart for the specific tubing.
- Cavitation is more likely with warm fuel, undersized suction lines, clogged filters, or high altitude (low ambient pressure).
- MIL-PRF-5606 and MIL-PRF-83282 must not be mixed unless specifically authorized — and neither is compatible with Skydrol (phosphate ester fluid) used in some transport category aircraft.
Common Test Traps
- Confusing diameter's effect: Students often think halving the pipe diameter doubles pressure drop. In laminar flow, at a constant flow rate, it actually multiplies pressure drop by 16 (fourth-power relationship). For turbulent flow the exponent is slightly less but still far greater than 2.
- Assuming turbulent flow is always bad: In some contexts, controlled turbulence is useful (fuel-air mixing, heat exchanger efficiency). The AMT's job is recognizing when turbulence is harmful — in suction lines, pump inlets, and areas prone to cavitation.
- Mixing hydraulic fluids: Questions often test whether different hydraulic fluid types are interchangeable. They are generally not — mixing can degrade seals and fluid performance. Always confirm compatibility before adding fluid.
- Ignoring viscosity changes with temperature: A system designed around warm-weather viscosity may exhibit sluggish actuator response or pump cavitation in cold conditions. Viscosity, not just pressure, governs flow regime.
- Overlooking minor losses from fittings: Test questions may describe a system that meets pressure specs on a bench but fails in flight. Bends, tees, and adapters added during repair can introduce enough turbulence and pressure drop to push an already marginal system over its limits.
