Modern aircraft hydraulic systems do far more than generate pressure. They must direct that pressure to the right actuator at the right time, prevent backflow that could cause dangerous reversals of flight controls or landing gear, and ensure that life-critical systems receive fluid first when pressure is limited. Three families of flow control valves make all of this possible: selector valves, which route fluid to chosen actuators; check valves, which allow flow in only one direction; and priority valves, which protect essential systems when system pressure drops. Every aviation maintenance technician (AMT) must understand how each valve type works, why it is positioned where it is, and what happens to the aircraft when one fails.
This article covers all three valve families in depth, grounded in the principles presented in the FAA's Aviation Maintenance Technician Handbook – Airframe (FAA-H-8083-31). Whether you are preparing for the AMT Airframe knowledge test or troubleshooting a real hydraulic circuit on the shop floor, the material here will give you both the theory and the practical perspective you need.
Selector Valves: Directing Flow to the Right Place
A selector valve is the hydraulic system's traffic director. When a pilot moves a cockpit control — a landing gear handle, a flap lever, or a flight spoiler switch — the signal reaches a selector valve that physically opens or closes passages to route pressurized fluid to one side of an actuating cylinder while simultaneously opening the return path from the opposite side. Without selector valves, an aircraft would have no way to command individual systems independently; every actuator would receive pressure simultaneously and none would move in a controlled manner.
Open-Center vs. Closed-Center Designs
Selector valves are classified by what they do with system pressure when no hydraulic function is being commanded. An open-center selector valve allows fluid to circulate continuously back to the reservoir through the valve's center position. This design is common on systems that use a constant-delivery pump, because the pump must always have somewhere to send its output. Pressure builds only when the valve shifts to direct flow to an actuator. A closed-center selector valve, by contrast, blocks all flow in the neutral position. This type is used with variable-delivery (pressure-compensating) pumps that reduce output when no work is being done, keeping system pressure at a standby level without wasting energy or overheating fluid.
Poppet and Rotary Selector Valves
Internally, selector valves use either sliding spools, poppets, or rotary elements. The spool-type valve — by far the most common in aircraft hydraulics — uses a cylindrical spool with machined lands and grooves that shift axially to open or close ports. When the spool moves in one direction, it uncovers the pressure port to the actuator's extend line and opens the retract line to return; reversing the spool shifts these connections. Spool valves are prized for their ability to be actuated by small solenoids or servo pistons, making them ideal for remote or automated control. Rotary selector valves use a rotating plug with drilled passages to align with system ports; they are simpler but require more pilot effort for manual operation and are found mainly on older or lighter aircraft.
Four-Way Valves and Actuator Control
Most aircraft selector valves that control double-acting actuators (cylinders that are powered in both directions) are four-way valves: one pressure inlet port, two actuator ports (extend and retract), and one return port. In the neutral or hold position, fluid is trapped in both sides of the actuator, locking it in place with hydraulic force. This is how retracted landing gear is held securely without any mechanical lock being required — though most aircraft also incorporate mechanical uplocks as a backup.
Check Valves: One-Way Flow Gates
A check valve is one of the simplest yet most indispensable components in any hydraulic system. It permits fluid flow freely in one direction but blocks it completely in the opposite direction. The basic design consists of a ball or poppet held against a seat by a light spring. Fluid pressure from the intended direction pushes the ball or poppet off its seat, allowing flow. Reverse pressure presses the element firmly onto the seat, providing a positive seal.
Why Check Valves Are Necessary
Check valves serve several critical roles. First, they prevent backflow through idle pump outlets. In a multi-pump system, if one pump is operating and another is offline, the operating pump's pressure could drive fluid backward through the idle pump, damaging it. A check valve downstream of each pump prevents this cross-contamination. Second, check valves protect accumulators: the check valve between the pump and accumulator prevents pressurized fluid stored in the accumulator from flowing back through the pump when pump pressure drops. Third, they maintain pressure in isolated subsystem lines, preventing actuators from creeping under load.
Orifice Check Valves

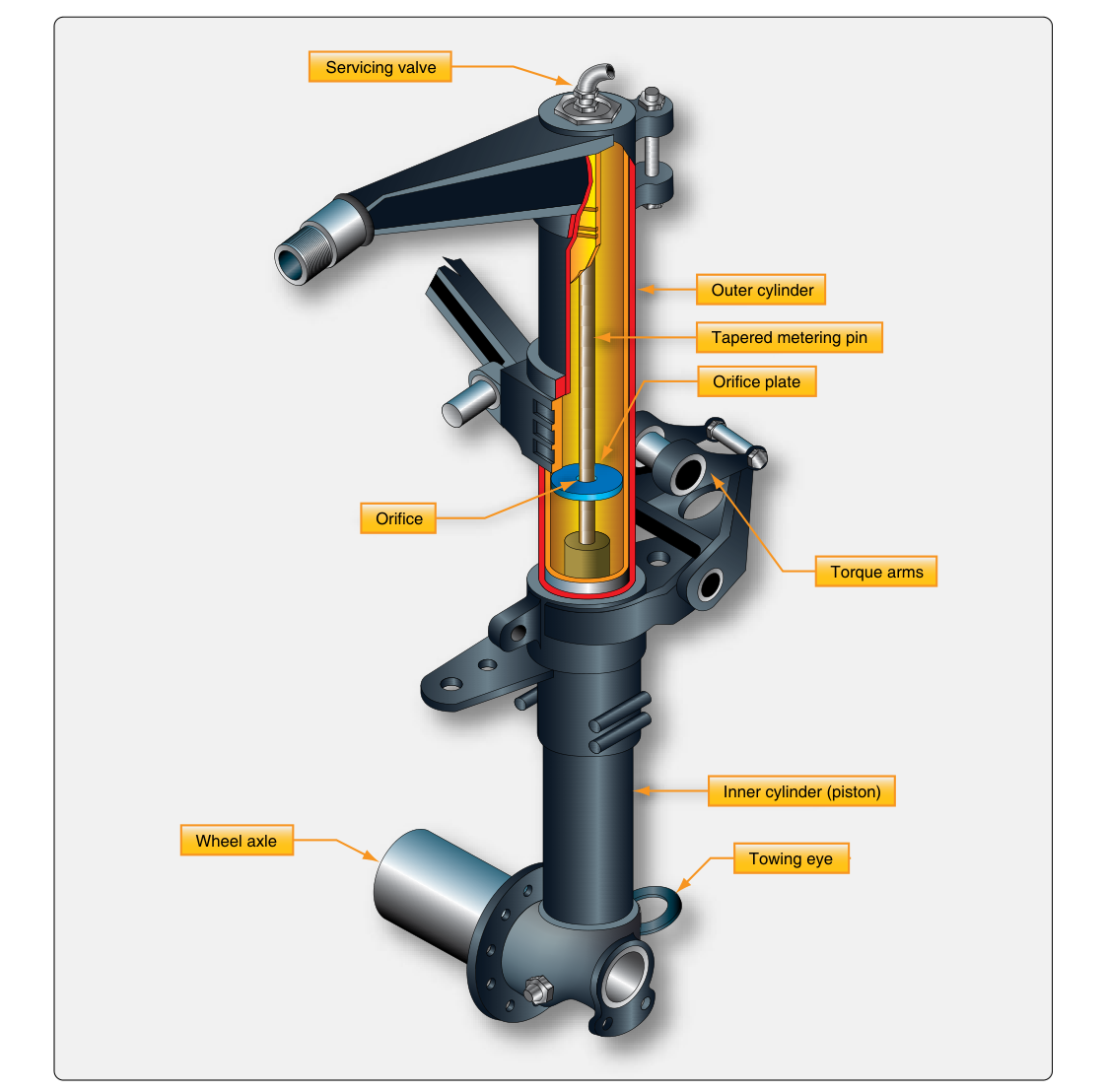

A specialized variant called an orifice check valve (also called a restrictor check valve) allows free flow in the normal direction but restricts flow in the reverse direction by routing return fluid through a small calibrated orifice. This asymmetric behavior is used where an actuator must extend quickly under power but retract slowly in a controlled manner — or vice versa. A classic application is the nose-gear snubber: the gear extends at full speed but is slowed on retraction to prevent mechanical shock when the uplock engages.
Priority Valves: Protecting Critical Systems
A priority valve is a pressure-sensitive, normally-closed valve that sits in the supply line to a non-essential or secondary hydraulic system. When system pressure is at or above a set threshold, the priority valve opens and allows fluid to reach the secondary system. If pressure falls below that threshold — signaling that the pump is struggling, a line has been damaged, or fluid is being lost — the priority valve closes automatically, cutting off hydraulic supply to lower-priority services and reserving all available pressure and flow for systems that are essential for flight safety.
How Priority Is Assigned
Aircraft designers rank hydraulic consumers by criticality. Flight control actuators and, in many designs, nose-wheel steering sit at the top of the priority list. Landing gear and wheel brakes occupy a middle tier. Utility services such as cargo doors, passenger stairs, and ground spoilers reside at the bottom. Priority valves are plumbed so that the most essential actuators receive fluid directly from the system manifold, while secondary consumers are downstream of one or more priority valves. When pressure recovers, the priority valve reopens, restoring service to the secondary system.
Priority Valves vs. Pressure Relief Valves
Students sometimes confuse priority valves with pressure relief valves. A pressure relief valve opens when pressure is too high, venting excess fluid to protect components from overpressure. A priority valve closes when pressure is too low, shedding non-critical loads to protect the remaining pressure for essential systems. These are opposite functions, and mixing them up is a common exam error.
Key Numbers and Rules
- Typical aircraft hydraulic system pressure: light general aviation aircraft often operate at 1,000–1,500 psi; transport-category aircraft commonly use 3,000 psi systems, with some newer designs operating at 5,000 psi.
- Check valve cracking pressure: the light spring in a typical check valve requires only 2–5 psi of differential pressure to open in the free-flow direction, ensuring minimal restriction to normal flow.
- Priority valve setpoint: varies by aircraft, but a common design keeps secondary services available down to roughly 1,000–1,500 psi and sheds them if pressure falls below that threshold, reserving remaining pressure for flight-critical actuators.
- Spool valve lapping: spool valve fits are precision-machined to extremely fine tolerances (often measured in ten-thousandths of an inch) to minimize internal leakage while still allowing free spool movement; contamination is the leading cause of spool valve failure.
- Fluid cleanliness: because flow control valves have tight clearances, hydraulic fluid contamination is the number-one cause of valve malfunction; the ATA and manufacturer maintenance manuals specify maximum particle count and size for each system.
Common Test Traps
- Open-center vs. closed-center confusion: Remember that open-center systems circulate fluid continuously and are paired with constant-delivery pumps; closed-center systems block flow at neutral and are paired with pressure-compensating pumps. The FAA test frequently asks which pump type matches which valve design.
- Priority valve direction: The priority valve closes on LOW pressure, not high. Many students reverse this. Think of it as a guardian that slams the door on secondary systems to save pressure for the essentials.
- Check valve orientation: On the written and oral exams, you may be shown a schematic and asked which way flow is blocked. The arrow or triangle symbol on a check valve always points in the direction of permitted flow; flow against the arrow is blocked.
- Orifice check valve vs. flow restrictor: A plain flow restrictor slows flow in both directions equally. An orifice check valve slows flow in only one direction; the other direction is unrestricted. Confusing these two leads to wrong answers on actuator speed questions.
- Four-way valve neutral position: In the neutral (hold) position, a four-way closed-center selector valve traps fluid on both sides of the actuator, preventing movement. The test may ask whether the actuator can move freely in neutral — the answer is no, because both lines are blocked.
Mastering flow control valves is essential not only for passing the FAA AMT Airframe knowledge test but for safe maintenance practice. A mis-rigged selector valve can cause inadvertent gear extension or retraction; a reversed check valve can back-drive a pump to destruction; an incorrectly set priority valve can leave a crew without flight controls at the worst possible moment. Understanding these components deeply — how they direct, restrict, and protect hydraulic flow — is the foundation of sound hydraulic system maintenance.
