Modern transport-category aircraft depend on multiple independent hydraulic systems to power flight controls, landing gear, brakes, and dozens of other critical functions. Redundancy is the watchword: if one system loses pressure, another must be ready to take over. But simply connecting two hydraulic circuits together would defeat the purpose of keeping them independent — a contamination or leak in one system would then spread to the other. Power transfer units (PTUs) and hydraulic motor-pump combinations solve this elegantly by moving energy from one circuit to another without ever mixing the fluids themselves. Understanding how these devices work, why engineers install them, and what an AMT must watch for during maintenance is essential knowledge for the FAA Airframe Knowledge Test and for safe, competent shop practice.
The Fundamental Problem They Solve
A typical large aircraft has two, three, or even four independent hydraulic systems, each with its own reservoir, pump, and fluid supply. Independence protects against contamination and leak-down, but it raises a practical question: what happens when an engine-driven pump on System 2 fails and that system cannot generate adequate pressure? Simply cross-connecting the pressure lines would let the healthy system's fluid flow into the failed system — and if that system has a leak, the healthy system bleeds out too. The solution is a device that mechanically or hydraulically links the two systems so that pressure (power) transfers but fluid does not.
How a Power Transfer Unit Works
A PTU is essentially a hydraulic motor and a hydraulic pump mounted on a common shaft and enclosed in a single housing. The motor side is connected to the pressure output of the healthy (donor) hydraulic system. High-pressure fluid from the donor system drives the motor, which spins the shaft. The pump side is connected to the receiving system, drawing fluid from that system's own reservoir and pressurizing it. Because the motor and pump are on the same shaft, the receiving system gains pressure without any fluid crossing from the donor side.
This is the critical point: the two hydraulic circuits remain completely fluid-isolated. The donor system's fluid never enters the receiving system's plumbing. Only rotational mechanical energy crosses the boundary — through the shaft. If the receiving system has a leak or contamination, the donor system is protected. The PTU can be designed to operate in one direction only (unidirectional) or in both directions (bidirectional), depending on aircraft design requirements. A bidirectional PTU can drive the receiving system from either side, providing mutual backup.
PTU Activation Logic
PTUs are typically controlled by pressure-sensing switches and solenoid valves. When the receiving system's pressure drops below a set threshold — often around 1,500 PSI in a system normally operating at 3,000 PSI — a pressure switch signals the solenoid to open, allowing donor-system flow to drive the PTU motor. When pressure is restored, the solenoid closes and the PTU stops. On many Boeing and Airbus aircraft, the PTU activates automatically; flight crews and maintenance personnel sometimes hear a distinctive barking or chattering noise during ground operations when the PTU cycles on and off rapidly as system pressure hunts around the activation threshold. This noise is normal and expected, but a PTU that runs continuously or fails to activate at all warrants investigation.
Hydraulic Motor-Pump Combinations

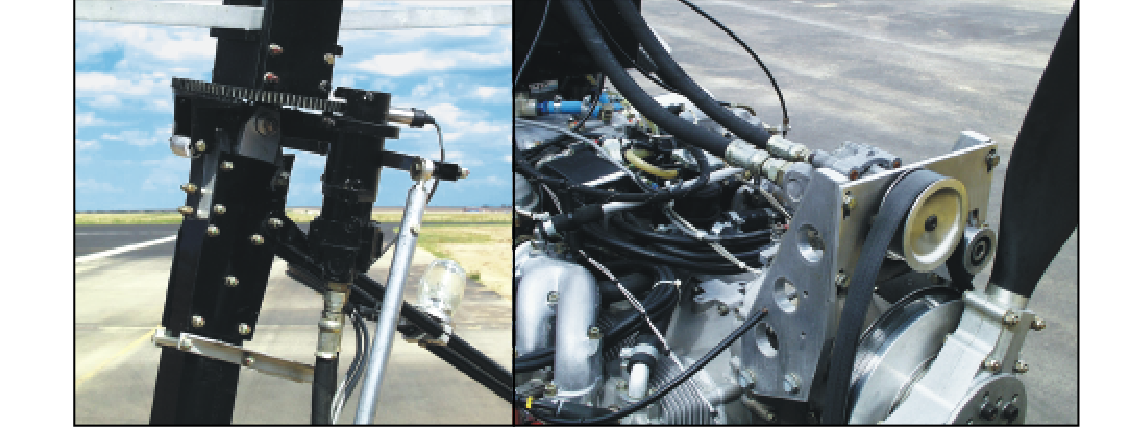

While a PTU is a self-contained unit with motor and pump in one housing sharing one shaft, the term hydraulic motor-pump combination (sometimes called a hydraulic motor-driven pump, or HMDP) refers more broadly to arrangements where a hydraulic motor powers a hydraulic pump — but these may be separate components mechanically coupled, or they may power pumps in an entirely different fluid system. The operating principle remains the same: hydraulic pressure from a donor source drives a motor, the motor's output shaft drives a pump, and the pump pressurizes the receiving circuit.
In some configurations, the receiving side is not a hydraulic circuit at all. For example, a hydraulic motor can drive an electric generator or an air compressor. When the receiving device is another hydraulic pump, the assembly functions exactly as a PTU. The distinction matters for maintenance: a PTU is a specific, integrated product with both elements in one housing, while a motor-pump combination may be two separate line-replaceable units (LRUs) with a coupling between them. Both are subject to similar inspection and service requirements, but their removal and installation procedures differ.
Design Variations and System Architecture
Aircraft manufacturers choose between fixed-displacement and variable-displacement designs for both the motor and pump sides of these units. A fixed-displacement motor converts a set volume of fluid per revolution, producing a shaft speed proportional to flow rate. A variable-displacement pump adjusts its output based on system demand, modulating flow to maintain a target pressure without overloading the donor system. Many modern PTUs use a fixed-displacement motor paired with a variable-displacement pump, balancing simplicity on the motor side with efficient pressure regulation on the pump side.
Gear-type, vane-type, and piston-type designs all appear in aircraft PTUs and motor-pump assemblies. Piston-type units — both axial-piston and radial-piston — are most common in high-pressure aircraft applications (3,000 PSI systems and above, including the newer 5,000 PSI systems appearing on some modern aircraft) because they offer high efficiency, long service life, and the ability to handle variable displacement.
Why It Matters for Safety and Airworthiness
The practical safety value of PTUs and motor-pump combinations is straightforward: they extend the operational envelope when primary hydraulic power sources are degraded. If an engine-driven pump fails, the PTU can sustain pressure in that system long enough for pilots to complete a safe approach and landing using all normal flight control and braking hydraulics. Without such a backup, crews would need to rely on accumulator pressure or emergency systems far sooner, increasing workload and risk.
From an airworthiness standpoint, the fluid-isolation feature is equally important. Hydraulic fluid contamination — whether from rubber seal degradation, metal particles from pump wear, or the wrong fluid type being serviced — is one of the most common causes of widespread hydraulic system damage. A PTU guarantees that contamination in one system cannot propagate to the other through the PTU itself. However, AMTs must still ensure that the correct fluid type is used in each system independently; the PTU does not protect against errors made at each system's own service port.
Maintenance Considerations for AMTs
When inspecting or servicing PTUs and motor-pump combinations, technicians should pay close attention to the following areas:
- External leakage: Inspect all hydraulic fittings, case drain lines, and the unit housing for signs of fluid seepage. A case drain line carries internal leakage fluid back to the reservoir; high case drain flow indicates internal wear or seal failure.
- Shaft seal integrity: The shaft seal between the motor and pump sides is the critical fluid-isolation barrier. If this seal fails, fluid can migrate from one side to the other, defeating the purpose of the PTU. Any sign of cross-contamination in either reservoir should prompt immediate PTU inspection.
- Noise and vibration: Unusual noise (beyond the normal activation bark) or vibration may indicate bearing wear, cavitation, or internal damage. Compare observed noise to the aircraft maintenance manual (AMM) description of normal operation.
- Activation testing: Many AMMs require a functional check after PTU installation, verifying that the unit activates at the correct differential pressure and achieves specified output pressure within a defined time. Always consult the applicable AMM for test procedures and accept/reject criteria.
- Fluid servicing: Because each side of a PTU draws from its own reservoir, both reservoirs must be independently serviced. Never assume that servicing one system fills the other. Use only the fluid type specified for each system — mixing MIL-H-5606, MIL-H-83282, or phosphate-ester (Skydrol) fluids can destroy seals throughout the system.
- Filter condition: PTU motor inlets and pump outlets typically have filters or screens. Inspect these at intervals specified in the AMM and note the type and quantity of any contamination found, as particles can indicate accelerating wear.
Key Numbers and Rules
- Most commercial transport hydraulic systems operate at 3,000 PSI; some newer aircraft use 5,000 PSI systems.
- PTU activation typically occurs when system pressure drops to roughly 50% of normal operating pressure (exact threshold set per aircraft design).
- The shaft seal between motor and pump is the only fluid-isolation boundary — its condition is safety-critical.
- Case drain flow rates exceeding manufacturer limits are cause for unit removal and inspection.
- Always reference the applicable Aircraft Maintenance Manual (AMM) and Component Maintenance Manual (CMM) for torque values, test pressures, and fluid specifications.
Common Test Traps
- Fluid transfer misconception: A common distractor states that PTUs transfer hydraulic fluid between systems. They do not — they transfer only mechanical energy via a shared shaft. Fluid remains isolated on each side.
- Unidirectional vs. bidirectional confusion: Not all PTUs can drive both systems; a unidirectional PTU only boosts the receiving system in one direction. Know the difference and understand that aircraft design determines which type is used.
- Shaft seal vs. system check valves: The shaft seal provides fluid isolation in a PTU; check valves prevent backflow in pressure lines but are not the fluid-isolation mechanism between systems in a PTU.
- Continuous PTU operation: Test questions may describe a PTU that runs continuously and ask whether this is normal. It is not — continuous operation usually indicates a leak or pressure fault in the receiving system, not a PTU malfunction per se, but it requires investigation of the whole system.
- Contamination protection limits: While a PTU prevents cross-contamination through itself, it does NOT protect against contamination introduced through each system's own service points. Students sometimes assume PTU isolation means each system is immune to all contamination events.
