Before a pilot can determine whether an aircraft is loaded safely for flight, they must first speak the language of weight and balance. Terms like empty weight, center of gravity (CG), datum, and moment appear on every weight and balance worksheet and on the FAA Private Pilot Knowledge Test. More importantly, they represent real physical concepts that govern how an airplane flies — or fails to fly safely. This article builds the conceptual foundation so that every calculation you perform makes intuitive sense, not just mathematical sense.
The good news is that the underlying ideas are straightforward. Weight acts downward from every object in the airplane. The datum is simply the reference line from which all measurements are taken. Moment is the product of weight and distance. And CG is the single point where all those moments balance out. Understand these four concepts thoroughly and the rest of weight and balance falls into place naturally.
The Datum: Your Reference Line
The datum is an imaginary vertical plane, chosen by the aircraft manufacturer, from which all horizontal distances are measured. The FAA defines it in the Weight and Balance Handbook (FAA-H-8083-1) as the reference plane used to establish arm measurements for all components and stations in the aircraft. The datum has no inherent physical meaning beyond being a consistent starting point — manufacturers may place it at the firewall, the nose of the aircraft, the leading edge of the wing, or even ahead of the aircraft entirely.
Why does the datum location matter? Because all arm measurements — the horizontal distance from the datum to a specific point — depend entirely on where the datum is set. If the manufacturer places the datum at the nose, every station in the airplane has a positive (forward) arm. If the datum is set somewhere aft of the nose, items forward of it get negative arms and items aft get positive arms. The specific location is documented in the Pilot's Operating Handbook (POH) or Type Certificate Data Sheet (TCDS). As a pilot, you never choose the datum — you simply use wherever the manufacturer defined it and apply it consistently.
The horizontal distance from the datum to any specific point is called that point's arm, measured in inches. Arms can be positive (aft of datum) or negative (forward of datum). Every seat, fuel tank, baggage compartment, and engine mount has an arm published in the aircraft's POH.
Weight: The Force Pulling Everything Down
In weight and balance, weight refers to the actual heaviness of any object or substance in the aircraft, measured in pounds. There are several weight values every pilot must know:
- Empty weight (EW): The weight of the airframe, powerplant, and all permanently installed equipment. It includes unusable fuel, full operating fluids (hydraulic fluid, engine oil in most modern aircraft), and all fixed equipment. It does not include occupants, usable fuel, cargo, or baggage. The specific items included in empty weight vary slightly between aircraft, so always check the POH.
- Basic Empty Weight (BEW): Standard empty weight plus optional/installed equipment, typically including full engine oil and unusable fuel depending on the manufacturer's definition. Always check which items your specific aircraft's POH includes under this term.
- Useful load: The difference between the aircraft's maximum gross weight and its empty weight. This is the total weight available for occupants, usable fuel, oil (if not already in empty weight), and baggage.
- Maximum gross weight (MGW): The maximum certificated takeoff or ramp weight, as defined by the manufacturer and approved by the FAA. Exceeding it is illegal and unsafe.
- Zero fuel weight (ZFW): A maximum weight with no usable fuel aboard, used mainly on transport-category aircraft and some larger general aviation airplanes to limit wing bending loads at the root. It is not commonly featured in PPL-level weight and balance problems but is worth knowing conceptually.
A common student confusion: unusable fuel is part of empty weight, because it cannot be used in flight and is always present. Usable fuel, however, is part of the useful load, because you add it (or don't) before each flight.
Arm and Moment: The Physics of Balance
The arm is the horizontal distance in inches between the datum and the point where a weight acts. For a passenger in the front seat, the arm is the distance from the datum to the seat's reference point, as published in the POH. Arms are fixed by the aircraft's geometry — you cannot change where a seat or fuel tank is located.
The moment is the product of a weight and its arm. Mathematically:
Moment = Weight × Arm
Moments are expressed in inch-pounds (in-lb). Moment is the rotational force that a given weight exerts about the datum. A heavy weight far from the datum creates a large moment. A light weight close to the datum creates a small moment. This is the same principle as a seesaw: a child sitting far from the center can balance a heavier adult sitting closer in.

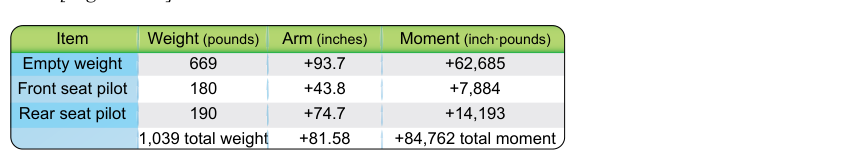

Consider a simple example. Suppose the front seats of an airplane have an arm of 37 inches (aft of datum), and two occupants together weigh 340 pounds. Their combined moment is 340 × 37 = 12,580 inch-pounds. If those same passengers were instead placed in rear seats with an arm of 73 inches, their moment would be 340 × 73 = 24,820 inch-pounds — nearly twice as much. Same weight, dramatically different rotational effect on the airplane.
Center of Gravity: Where Balance Lives
The center of gravity (CG) is the single point at which the entire weight of the aircraft could theoretically be concentrated and the aircraft would remain in balance. Practically, it is the point around which the aircraft rotates in all three axes. The FAA defines CG as the point at which an aircraft would balance if it were suspended from that point.
CG is calculated by dividing the total moment by the total weight:
CG = Total Moment ÷ Total Weight
The result is expressed as a distance (in inches) from the datum — essentially, it tells you the arm of the aircraft's effective balance point. That value must fall within the manufacturer's published CG envelope (also called the CG range or CG limits) for the aircraft to be safely controllable.
The CG limits are published in the POH and on the TCDS as a forward limit and an aft limit, measured in inches from the datum. If the calculated CG falls forward of the forward limit, the aircraft will be nose-heavy: elevator effectiveness decreases, stall speed increases, and in extreme cases the pilot may not have enough pitch authority to raise the nose for takeoff or landing. If the CG falls aft of the aft limit, the aircraft becomes tail-heavy with reduced longitudinal stability — elevator authority to lower the nose is diminished, which can make stall recovery more difficult.
Why It Matters in the Cockpit
Weight and balance is not just a paperwork exercise. An out-of-CG condition directly reduces the pilot's ability to control the aircraft, especially at low speeds or in emergency situations. An overweight aircraft has a higher stall speed, requires more runway for takeoff, climbs more slowly, and places excess stress on the airframe and landing gear. Exceeding weight limits voids the aircraft's airworthiness certificate, making the flight illegal under 14 CFR Part 91 and uninsured.
CG shift during flight is also a real concern. As fuel burns off, the CG moves — sometimes significantly, depending on where the fuel tanks are located relative to the CG. Pilots must verify that the CG remains within limits not just at takeoff but throughout the flight as fuel is consumed. Some aircraft require specific fuel burn sequences to maintain CG within limits.
Key Numbers and Rules
- Empty weight is found in the aircraft's current weight and balance record, not the POH alone — it changes when equipment is added or removed.
- Unusable fuel is included in empty weight; usable fuel is part of useful load (avgas weighs approximately 6 pounds per gallon).
- Engine oil typically weighs approximately 7.5 pounds per gallon (this figure varies slightly by oil type); check whether your aircraft's empty weight definition includes full oil.
- Moment = Weight × Arm (in inch-pounds).
- CG = Total Moment ÷ Total Weight (result in inches from datum).
- CG must fall within the forward and aft limits throughout the entire flight.
- The datum location is established by the manufacturer and documented in the POH/TCDS — it never changes for a given aircraft type.
Common Test Traps
- Unusable vs. usable fuel: The FAA Knowledge Test frequently asks whether unusable fuel is part of empty weight or useful load. Unusable fuel is always part of empty weight because it cannot be used in flight.
- Moment sign errors: When the datum is not at the nose, some arms will be negative. Forgetting to use a negative arm produces a completely wrong moment and CG — read the POH datum location carefully.
- Using the wrong empty weight: Students sometimes use the empty weight from the POH rather than the current weight and balance record. If the aircraft has had avionics installed since manufacture, the empty weight has changed.
- CG vs. weight limits: Being within gross weight does not guarantee the CG is in limits, and being within CG limits does not guarantee you are under gross weight. Both must be independently verified.
- Thinking CG is fixed: CG changes as fuel burns and as passengers move. You must verify CG at the loading condition, not just at one point in time.
