Among the most critical layers of safety built into modern aircraft are configuration warning systems — automated mechanisms designed to alert the flight crew when the aircraft is not properly configured for takeoff or landing. These systems exist because history has repeatedly demonstrated that even experienced pilots, under high workload or distraction, can forget a critical checklist step. A gear-up landing or a takeoff attempt with flaps in the wrong position are not obscure theoretical hazards; they are documented, recurring accident causes. Configuration warning systems are the last automated line of defense before those errors become catastrophes.
For AMT Airframe technicians, a thorough understanding of how these systems are designed, how their components work together, and how to inspect and troubleshoot them is essential. These systems fall under the broader category of position and warning systems and are covered in the FAA's Aviation Maintenance Handbook series. Mastery of this topic is directly tested on the AMT Airframe knowledge exam and is critical in real maintenance practice.
How Configuration Warning Systems Work
Configuration warning systems operate on a straightforward logic principle: if certain flight conditions exist and critical aircraft components are not in their required positions, an alert must be triggered. The system continuously monitors inputs from multiple sensors and compares them against predefined safe-configuration criteria. When a mismatch is detected, the system activates one or more warning outputs — typically an audible horn or buzzer, a visual light or annunciator, or both.
The Core Components
Most configuration warning systems are built around several interacting components:
- Microswitches and position sensors: These are the primary sensing devices. They are mounted on landing gear actuators, gear doors, flap tracks, throttle linkages, and other control surfaces. A microswitch changes state (opens or closes an electrical circuit) when a component moves into or out of a defined position. For example, a gear-down-and-locked microswitch closes only when the gear is fully extended and mechanically locked. If that switch is open when it should be closed, the warning system knows gear is not confirmed down.
- Throttle/power sensors: A key input in many systems is the throttle or power lever position. On many aircraft, the configuration warning for takeoff is armed only when the throttle is advanced past a certain threshold — representing a takeoff power setting. This prevents nuisance alerts during taxi when the gear is retracted for maintenance jacking, for example, and ensures the warning fires exactly when it is most critical: as the pilot applies takeoff power.
- Flap position sensors: Flap position potentiometers or microswitches report the actual flap angle to the warning logic circuit. The system is typically configured with an acceptable flap range for takeoff — often a specific setting or a range of settings approved in the AFM/POH. If flaps are fully retracted or set to an excessively large angle and power is advanced, the warning activates.
- Warning logic module: In older aircraft this may be a simple relay-based circuit; in modern aircraft it is often a dedicated electronic control module or integrated with the aircraft's avionics. The module receives all sensor inputs and applies the warning logic. Some advanced systems use Built-In Test Equipment (BITE) to self-monitor and report faults.
- Warning outputs: The most common output is an audible horn or buzzer in the cockpit, loud enough to demand immediate attention. Visual indicators — warning lights or annunciator panel messages — accompany the audible alert on most aircraft. On transport-category aircraft, voice alerts (e.g., "TOO LOW — GEAR") via the Ground Proximity Warning System (GPWS) or Terrain Awareness and Warning System (TAWS) augment traditional configuration warnings.

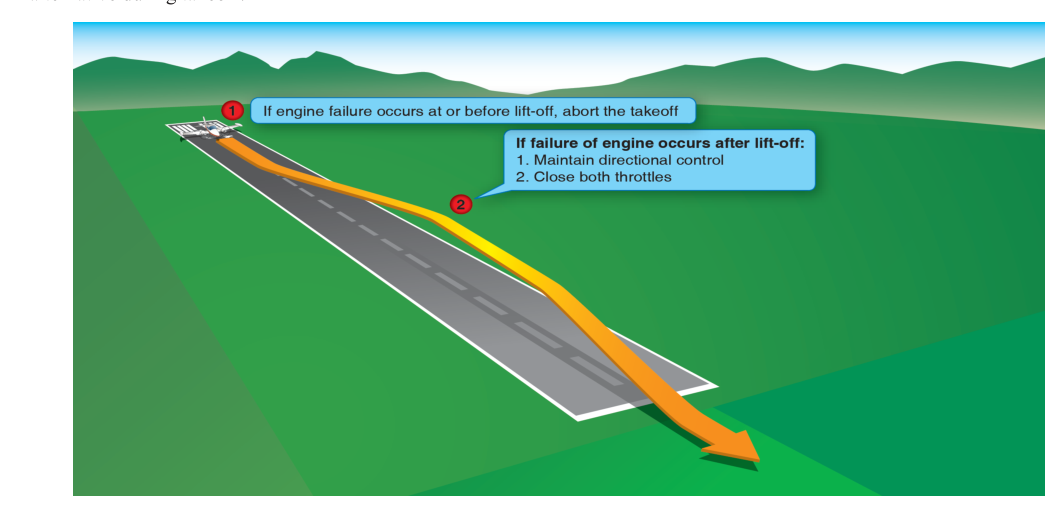

Takeoff Configuration Warnings in Detail
The takeoff configuration warning is designed to alert the crew before or during the takeoff roll if any critical flight control or system is not in a safe configuration. On multiengine transport-category and turbine aircraft, this is typically a mandatory system. The warning arms when the aircraft is on the ground (sensed via weight-on-wheels or squat switches) and the throttles are advanced to near-takeoff power.
Common conditions that trigger a takeoff configuration warning include: flaps not set within the approved takeoff range; speed brakes or spoilers not stowed; stabilizer or horizontal trim not within the green band for takeoff; and in some designs, cargo or passenger doors not fully secured. The philosophy is comprehensive — any major configuration error that could prevent safe flight should be caught before the aircraft accelerates to a point where stopping is difficult.
On many light general aviation aircraft, the system is simpler but the principle is the same. A stall warning horn circuit, flap position switch, and throttle switch may combine so that if the pilot pushes the throttle fully forward with flaps up (or in some designs, with flaps at an improper setting), a warning sounds. The FAA does not mandate configuration warning systems on all aircraft types, but they are required on transport-category aircraft under 14 CFR Part 25 airworthiness standards.
Landing Gear Warnings in Detail
The gear warning system is probably the most universally recognized configuration warning on retractable-gear aircraft. Its purpose is simple: if the aircraft is in a condition associated with landing or low flight, and the landing gear is not down and locked, a warning must sound.
The system typically monitors two or three trigger conditions:
- Throttle/power reduction: When engine power is reduced below a set threshold (associated with approach and landing power settings), the system checks gear position. If gear is not down and locked, the warning activates. This is why the classic gear warning sounds when a pilot pulls power back on final — if they forgot the gear, the horn reminds them immediately.
- Flap extension: When flaps are extended to a landing position (typically a larger deflection angle), the system checks gear. Again, flaps down without gear down triggers the warning.
- Airspeed: Some aircraft incorporate airspeed as an additional trigger. Below a defined airspeed associated with approach (not cruise), the system arms or activates if gear is not confirmed down.
The gear-down-and-locked condition is confirmed by the same microswitches mounted on the gear mechanism. Three separate circuits (one per gear on a tricycle-gear aircraft) must all confirm locked position for the warning to be silenced. If even one gear is not confirmed locked, the warning remains active. This is critical: the system does not simply check that the gear handle is in the down position — it checks that the gear has physically moved to the down-and-locked position and that the locking mechanism has engaged.
Why Configuration Warning Systems Matter
Gear-up landings and takeoff accidents due to misconfiguration remain a persistent segment of preventable aviation accidents. Even with checklists, crew coordination, and training, attention lapses occur — especially during high-workload phases like the takeoff roll and final approach. Configuration warning systems provide an independent, automated cross-check that does not rely on human memory.
From a maintenance perspective, these systems must be in perfect working order at all times. A malfunctioning gear warning horn that gives false alerts may cause a crew to disable or ignore it — creating a silent hazard. A switch adjusted incorrectly may fail to trigger the warning when the gear is genuinely unsafe. Neither failure is acceptable. Technicians must verify proper system operation as part of annual inspections, after any landing gear work, and any time a component in the warning circuit is disturbed.
Key Numbers and Rules
- 14 CFR Part 25.703 requires a takeoff warning system on transport-category airplanes that alerts for specific unsafe conditions, such as wing flaps/slats not in a takeoff position, spoilers not stowed, or trim not set for takeoff — not a generic catch-all warning.
- 14 CFR Part 25.729 establishes requirements for retractable landing gear systems, including position indicators and warning devices.
- On most retractable-gear aircraft, three green lights (one per gear) indicate all three gear are down and locked. A red light or no light during the landing phase indicates an unsafe condition.
- Gear warning systems are typically not required on fixed-gear aircraft — no retraction means no misconfiguration risk for gear position.
- Maintenance personnel must perform a functional test of the complete warning system after any work on gear, flaps, throttle linkages, or warning circuits — not just a visual inspection.
- Warning system wiring must comply with AC 43.13-1B practices for aircraft electrical systems, including proper gauge, routing, and protection.
- Any modification to a configuration warning system requires FAA-approved data — this may be an STC, a field approval, DER-approved data, or documentation as a minor alteration under 14 CFR Part 43, depending on the scope of the change — because it affects airworthiness.
Common Test Traps
- Confusing the gear position indicator with the warning system: The green lights show gear position; the horn/buzzer is the warning. They are related but distinct circuits. The test may ask about one when describing the other's symptoms.
- Assuming the gear handle position is what the warning monitors: The warning system monitors actual gear position via microswitches on the gear mechanism — not the cockpit handle position. A handle down with a gear mechanically stuck up will still trigger the warning.
- Overlooking throttle position as a warning trigger: Many students focus only on gear position as the trigger. Remember that power reduction and flap extension are also common arming/triggering conditions. The test may describe a scenario where the warning fires on power reduction, not just on final approach.
- Thinking nuisance warnings are acceptable: A system that gives false alarms is just as dangerous as one that fails to warn, because crews learn to ignore it. Proper rigging and adjustment of all microswitches is essential to prevent both missed warnings and false alarms.
- Forgetting that takeoff configuration warnings cover more than just flaps: On large aircraft, trim position, spoiler position, and door status may all feed into the takeoff warning system. A test question may describe a warning triggered by speedbrakes not stowed — this is still a configuration warning system function.
