Inertial Reference System (IRS) Components and Alignment Procedures

The Inertial Reference System (IRS) uses accelerometers and gyroscopes to provide aircraft position, attitude, and navigation data without external signals — but it must be properly aligned on the ground before every flight.

Reviewed & updated · Grounded in current FAA handbooks & the ACS

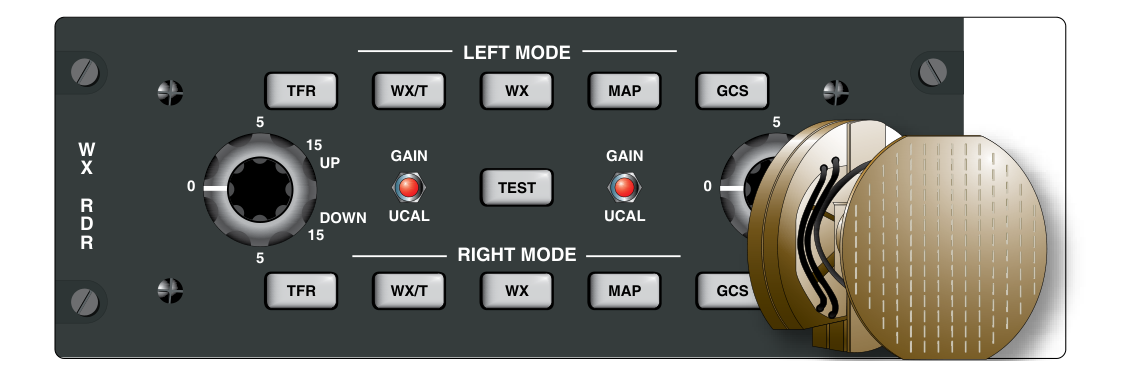

A typical on-board weather radar system for a high performance aircraft uses a nose-mounted antenna that gimbals. It is usually controlled by the inertial reference system (IRS) to automatically adjust for attitude changes during maneuvers so that the radar remains aimed at the desired weather target. The pilot may also adjust the angle and sweep manually as well as the gain. A dual mode control panel allows separate control and display on the left or right HSI or navigational display.
Image: FAA Aviation Maintenance Technician Handbook - Airframe (FAA-H-8083-31), Figure 11-143 — public domain

Modern transport-category aircraft depend on the Inertial Reference System (IRS) as a primary source of navigation, attitude, and flight-path data. Unlike GPS or VOR, the IRS requires no ground stations or satellites — it continuously measures the aircraft's own motion and integrates that data to track position. For Aviation Maintenance Technicians (AMTs), a solid understanding of IRS components, how they function together, and the precise alignment procedures required before flight is essential for both airworthiness and safety. This article covers everything from the physics of inertial sensing to the step-by-step alignment sequence and the maintenance traps that commonly appear on the AMT Airframe knowledge test.

What the IRS Does

The fundamental job of an IRS is to provide the flight management system (FMS), autopilot, flight instruments, and other avionics with accurate, continuous data on the aircraft's attitude (pitch, roll, heading), velocity (ground speed and vertical speed), and position (latitude and longitude). It accomplishes this purely by measuring accelerations and integrating them mathematically over time. Because errors accumulate with time (a process called drift), the IRS requires a precise ground alignment to establish an accurate starting point before every flight.

Core IRS Components

Inertial Reference Unit (IRU)

The Inertial Reference Unit (IRU) is the heart of the system. It is a self-contained Line Replaceable Unit (LRU) typically installed in the electronics bay. Inside the IRU are the primary sensing elements — gyroscopes and accelerometers — along with the computers that process their outputs. Transport-category aircraft commonly carry three IRUs for redundancy: Left, Center, and Right. Each operates independently, and the FMS cross-checks their outputs to detect and isolate a faulty unit.

Gyroscopes

Modern IRS units use Ring Laser Gyroscopes (RLGs) or, in newer designs, Fiber Optic Gyroscopes (FOGs) rather than the spinning mechanical gyros found in older inertial navigation systems. An RLG operates on the Sagnac effect: two laser beams travel in opposite directions around a triangular or square cavity. When the cavity rotates, a fringe pattern shift between the beams indicates the angular rate of rotation. Because there are no moving parts, RLGs are extremely reliable, require no warm-up spin time, and are essentially maintenance-free under normal operation. Three gyro axes (pitch, roll, and yaw) allow the IRU to track attitude changes in all three dimensions.

Accelerometers

Three accelerometers are mounted orthogonally (at 90° to each other) to measure linear acceleration along each of the three axes: longitudinal (fore-aft), lateral (side-to-side), and vertical. A common accelerometer type uses a proof mass suspended by flexures. Any acceleration displaces the proof mass, and a servo loop applies a restoring force to return it to null; the magnitude of that restoring force is directly proportional to acceleration. The IRU computer integrates acceleration once to get velocity, and integrates velocity a second time to get displacement — which, when added to the known starting position, yields current position.

Mode Select Unit (MSU) / IRS Control Panel

The Mode Select Unit (MSU), located on the overhead panel in the cockpit, allows the crew to select operating modes for each IRU. The primary modes are:

  • OFF — Unit is unpowered.
  • ALIGN — The IRU performs its ground alignment sequence. No navigation data is output during this phase.
  • NAV — Normal navigation mode. The unit provides all position, attitude, and velocity outputs to the aircraft systems.
  • ATT — Attitude mode. Used if alignment fails or position data is lost; the unit provides attitude and heading only, not position data. Heading must be entered manually.

IRS Display Unit / CDU Interface

Present position (latitude and longitude) is typically entered into the IRS through the Control Display Unit (CDU) or Multifunction Control and Display Unit (MCDU) during the alignment phase. On aircraft with a dedicated IRS Display Unit, position and alignment status can be read directly from that panel. The accuracy of the manually entered present position directly determines how accurately the IRS knows where it is after alignment — erroneous entry of even a small fraction of a degree in latitude or longitude will introduce navigational errors that accumulate throughout the flight.

IRS Alignment Procedures

Alignment is the process by which the IRU establishes its orientation with respect to the Earth's surface — specifically, it must determine true north and local vertical (the direction of gravity). This is called gyrocompassing. During alignment, the IRU uses its gyroscopes to sense the horizontal component of Earth's rotation (Earth's total rotation rate is approximately 15°/hour, but the horizontal component actually sensed depends on the aircraft's latitude and is smaller than 15°/hour except at the equator) and its accelerometers to detect the local gravity vector. By combining these measurements, the unit mathematically resolves true north and its own precise orientation.

Step-by-Step Alignment Sequence

  1. Power on the IRU: Move the mode selector to ALIGN. The system begins its internal self-test.
  2. Enter present position: Using the CDU/MCDU, enter the aircraft's current latitude and longitude to the required precision (typically to the nearest 0.1 minute of arc or better). This is the most critical crew/technician input — an error here propagates through the entire flight.
  3. Keep the aircraft stationary: Any movement during alignment — including pushback, engine run-up vibration, or strong wind rocking the aircraft — will corrupt the alignment. The IRU will either abort and restart, extend the alignment time, or complete with degraded accuracy, depending on the magnitude of the disturbance.
  4. Wait for alignment to complete: At mid-latitudes, a normal alignment takes approximately 10 minutes. At high latitudes (above approximately 70–75°N or S), alignment is more difficult because the horizontal component of Earth's rotation that the gyros use to find north becomes very small; alignment times increase and accuracy degrades.
  5. Advance to NAV mode: Once the ALIGN light extinguishes and the system indicates READY NAV, the mode selector is moved to NAV. Position data is now fed to the FMS and other systems. The IRS cannot be realigned in flight in normal NAV mode.

Alignment at High Latitudes

Above approximately 70–75° latitude, the Earth's rotation vector becomes nearly vertical, leaving almost no horizontal component for the gyros to sense for gyrocompassing. The system may time out, require an extended alignment, or fall back to ATT mode. Some aircraft systems require entry of an accurate heading from an external reference when operating at very high latitudes. AMTs maintaining aircraft that regularly operate polar routes must be aware of these limitations and follow the aircraft maintenance manual (AMM) procedures carefully.

Why the IRS Matters for Airworthiness

The IRS is typically a required system for RVSM (Reduced Vertical Separation Minimum) airspace, oceanic operations, and operation under many instrument flight rules. A failed or degraded IRS can restrict the aircraft to lower altitudes, non-RVSM airspace, or prevent dispatch entirely, depending on the Minimum Equipment List (MEL). Because the IRS feeds attitude data to the Primary Flight Displays (PFDs), autopilot, and flight envelope protection systems on fly-by-wire aircraft, a faulty IRU that outputs incorrect attitude data is a serious airworthiness concern. AMTs must verify IRS status during preflight checks and after any maintenance that could affect aircraft wiring or the electronics bay.

Key Numbers and Rules

  • Normal alignment time: Approximately 10 minutes at mid-latitudes (varies by manufacturer and aircraft model; always check the AMM).
  • High-latitude limit for normal alignment: Approximately 70–75° North or South latitude.
  • Number of IRUs on typical transport aircraft: Three (Left, Center, Right) for redundancy.
  • Modes: OFF → ALIGN → NAV (and ATT as a degraded backup).
  • ATT mode limitation: Provides attitude and heading only; no position output. Heading must be manually inserted.
  • Movement during alignment: Any significant aircraft movement invalidates or corrupts the alignment — the aircraft must remain stationary throughout.
  • Drift rate: Even after proper alignment, IRS position accuracy degrades over time due to sensor error accumulation. Modern IRUs typically meet specifications of 2 nautical miles per hour of flight or better; the FMS uses GPS updates to correct IRS drift during flight.

Common Test Traps

  • Confusing NAV and ATT modes: ATT mode does NOT provide position data. The test may describe a scenario where the crew has heading and attitude but no position — that is ATT mode, not a complete IRS failure.
  • Movement during alignment: A common distractor suggests that a brief movement during alignment has no effect. In reality, any significant motion during the gyrocompassing phase can corrupt the alignment, requiring a restart.
  • Latitude entry error: Entering longitude instead of latitude, or transposing digits, introduces a navigational error that the IRS cannot self-correct — it simply accepts the entered position as truth. The test may ask what causes position error immediately after alignment.
  • RLG vs. mechanical gyro: Modern IRS units use Ring Laser Gyroscopes, not spinning mass gyros. RLGs have no moving parts, no required spin-up time, and no mechanical bearing wear — mixing these up with older INS systems is a common error.
  • High-latitude alignment: Students sometimes assume the IRS aligns identically everywhere on Earth. At high latitudes, gyrocompassing degrades because the horizontal Earth rotation component approaches zero — alignment may be impossible or severely extended near the poles.
