Angle of Attack Indicator Systems

Of all the parameters a pilot or aircraft maintenance technician must understand, angle of attack (AOA) may be the most aerodynamically fundamental. Airspeed tells you how fast you are moving through the air; AOA tells you how hard the wing is working. An angle of attack indicator system translates this invisible aerodynamic angle into usable cockpit information, allowing crews to fly closer to optimum efficiency and to recognize the approach of a stall regardless of aircraft weight, bank angle, g-loading, or configuration. For the AMT Airframe candidate, understanding how these systems are designed, installed, calibrated, and maintained is essential both for the FAA written test and for real-world aircraft service.

Angle of attack is defined as the acute angle between the chord line of an airfoil and the relative wind — the direction from which the air is actually striking the wing. As AOA increases, lift generally increases — up to a critical point called the stall angle, beyond which airflow separates from the upper surface and lift collapses dramatically. Because stall is always triggered by exceeding the critical AOA (not by a specific airspeed), any system that directly measures AOA provides a more consistent stall warning than indicated airspeed alone, especially during maneuvering flight, high-altitude operations, or when the aircraft is heavier than normal.

How Angle of Attack Indicator Systems Work

Modern AOA systems use a sensing element mounted on the fuselage or wing to detect the direction of the local airflow relative to the aircraft. There are two broad categories of sensors in common use: the vane-type (or pivoting probe) sensor and the differential pressure (port) sensor.

Vane-Type Sensors

The vane-type sensor is the most prevalent on commercial and military transport aircraft. A small aerodynamic vane — sometimes called an alpha vane — protrudes into the airstream and pivots freely on a shaft. Because the vane is aerodynamically balanced, it continuously aligns itself with the local relative wind. The angular position of the vane's shaft is then converted into an electrical signal, most commonly through a synchro or resolver mechanism. That signal is transmitted to cockpit indicators, flight computers, stall warning computers, stick shaker actuators, and flight management systems as appropriate. Vane sensors are heated to prevent ice accumulation that would cause the vane to freeze in one position — a critical maintenance concern because a stuck vane can mask an actual high-AOA condition.

Differential Pressure (Port) Sensors

Some aircraft, particularly light general aviation aircraft, use a simpler approach based on two small ports located on a probe or on the leading edge of the wing. These ports are positioned so that at low AOA, one port has higher pressure than the other, and at high AOA the pressure differential reverses. The sensor measures this differential and converts it to an AOA value. Some systems of this type output a direct cockpit display while others feed only a stall warning horn or light. Differential pressure systems are less expensive and mechanically simpler, making them attractive for retrofit installations on light aircraft. The FAA and aircraft manufacturers have encouraged broader adoption of AOA indicators in the light aircraft fleet as a safety enhancement.

System Components

A complete AOA indicator system typically consists of: the sensor or probe (vane or differential pressure type), a control/processing unit that converts raw sensor data into calibrated AOA values, one or more cockpit indicators (which may be indexed in degrees, arbitrary units, or color-coded arcs), and associated wiring harnesses and connectors. Many transport-category aircraft have dual or triple redundant AOA sensors — one on each side of the fuselage at minimum — because sensor disagreement between left and right is itself an important warning of sensor icing, damage, or failure. The AOA data feeds into the air data computer (ADC) or flight control computer and is used to compute stall margins, drive stick shakers (on transport aircraft), and enable envelope protection in fly-by-wire designs.

Cockpit Displays and Annunciations

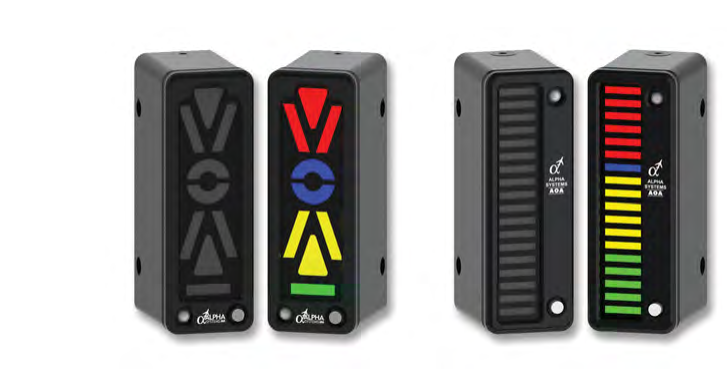

The cockpit indication philosophy varies widely. Transport aircraft typically display AOA indirectly — the crew sees stick shaker activation or overspeed/underspeed warnings driven by AOA data rather than a raw AOA number. Many business jets and modern glass-panel light aircraft display AOA as a colored arc indicator, typically graduated from green (safe margin) through yellow (caution) to red (near or at stall). Some systems display AOA as a percentage of the stall angle rather than in degrees, which makes the display configuration-independent: 100% always means critical AOA regardless of whether flaps are extended. This normalization is one of the key advantages over using a simple stall speed reference because the stall speed changes with configuration while the critical AOA does not.

Installation and Maintenance Considerations

For the AMT Airframe technician, proper installation and continued airworthiness of AOA systems involves several critical areas. Sensor location is determined by the aircraft manufacturer and must not be altered without engineering data and appropriate FAA approval (typically via Supplemental Type Certificate for retrofit systems). The sensor must be positioned where local airflow accurately represents the wing's actual AOA; mounting too close to a surface discontinuity, engine nacelle, or propeller slipstream will introduce errors.

Probe heating systems must be tested during scheduled maintenance. Most transport aircraft have built-in test equipment (BITE) that verifies heater continuity and current draw. A heater that draws no current indicates an open circuit; one that draws excessive current may indicate a short. Either condition requires the probe to be removed and repaired or replaced before return to service.

Vane freedom of movement is another routine check. Technicians verify that the vane rotates through its full range of travel without binding, roughness, or excessive friction. Contamination from paint overspray, insects, or corrosion can impede vane movement. Any restriction in vane travel means the sensor will not track rapid AOA changes accurately — exactly the situation where accurate data is most critical.

Alignment and rigging of vane sensors must match manufacturer specifications. If the vane is misaligned relative to the aircraft's longitudinal axis, all AOA readings will be offset by a fixed error. This can cause the stall warning to activate too early or too late. After any repair involving removal and reinstallation of an AOA sensor, the rigging must be verified and compared to the aircraft maintenance manual's specified tolerance.

Operational testing after installation typically involves manually deflecting the vane through its range and confirming proper cockpit indication at each extreme, as well as confirming that the stall warning horn, light, or stick shaker activates at the correct AOA threshold.

Why AOA Systems Matter for Safety

Loss of control in flight — particularly stall/spin accidents — remains one of the leading causes of fatal general aviation accidents. A major contributing factor is that pilots often rely on indicated airspeed as a stall proxy, not realizing that stall speed increases with bank angle and load factor. An AOA system bypasses that confusion entirely: it measures the actual aerodynamic state of the wing. Studies and accident analyses have repeatedly shown that many loss-of-control accidents occurred at airspeeds well above the published 1-g stall speed, because maneuvering increased the effective stall speed while the pilot had no direct indication of eroding stall margin. AOA systems address this gap directly and are strongly endorsed by the FAA as a safety enhancement for all aircraft categories.

Key Numbers and Rules

Critical AOA: The angle at which the wing stalls; for many general aviation wings this is approximately 16–18 degrees above the chord line, but the exact value is airfoil-specific and must be obtained from the aircraft's type data.
Sensor heating: AOA probe heaters on transport aircraft are typically checked for proper operation before each flight; the AMT verifies heater current draw against manufacturer limits during scheduled maintenance.
Redundancy: Transport-category aircraft commonly use a minimum of two AOA sensors (left and right fuselage sides); disagreement between them triggers a cockpit alert.
STC requirement: Retrofit AOA systems on certificated aircraft must be installed under an FAA-approved STC or field approval (Form 337 with engineering data); unauthorized modifications to sensor location violate 14 CFR Part 43 and Part 91.
Stall warning activation margin: Stall warning systems (driven by AOA data) are required by 14 CFR Part 23/25 to provide clear and distinctive warning at a speed sufficiently above the stall to allow recovery; the specific margin is defined in the applicable airworthiness standard for the aircraft's certification basis.
Vane range of travel: Typically ±30 to ±40 degrees from neutral; the maintenance manual specifies the exact limits and the technician must verify free movement through the full range.

Common Test Traps

AOA vs. pitch attitude: AOA is the angle between the chord line and the relative wind, not the angle between the chord line and the horizon. A descending aircraft can have a very high AOA if the nose is pitched up relative to the flight path, and vice versa. The FAA exam tests this distinction frequently.
Stall is always an AOA event: An aircraft can stall at any airspeed and any attitude if the critical AOA is exceeded. Do not confuse the published stall speed (a 1-g, wings-level, sea-level reference) with the actual stall boundary in maneuvering flight.
Heater failure consequence: A failed AOA probe heater may allow the vane to ice over and freeze, producing a falsely constant AOA reading. In icing conditions this is a critical failure. The test may ask which malfunction causes a fixed (non-varying) AOA indication.
Sensor misalignment effects: A misaligned vane will shift all readings by a constant bias. The stall warning will fire either too early (if the vane reads high) or too late (if it reads low) — the latter being the more dangerous condition.
Regulatory authority for alterations: Any alteration to an AOA system — including sensor relocation or software changes — requires FAA approval under 14 CFR Part 43. Technicians sometimes confuse routine replacement (which is maintenance) with alteration (which requires engineering approval); the exam tests this distinction.
