What is a TSO and why does it matter for GPS receivers installed in aircraft?

A Technical Standard Order (TSO) is an FAA minimum performance standard that avionics must meet before they can be legally installed and used for navigation in certificated aircraft. For GPS receivers, TSO-C129, TSO-C145, and TSO-C146 are the relevant standards covering standalone and WAAS-enabled equipment. Using a GPS receiver that lacks appropriate TSO authorization for the intended operation — such as IFR enroute or approach — is not legally permissible under 14 CFR Part 91 and could constitute an airworthiness violation.

How do you ensure a GPS database is current and legal for IFR navigation?

The navigation database in an IFR-approved GPS receiver must be current for the flight, as required by the AIM and FAA guidance, because outdated data may not reflect the latest procedure amendments, waypoints, or obstacle information. Jeppesen and other providers update GPS databases on a 28-day AIRAC cycle, and pilots should verify the database expiration date before each IFR flight. The FAA allows use of an expired database for IFR flight only if the pilot verifies the affected procedures and data are unchanged, but operators should consult their aircraft's AFM supplement for any more restrictive limitations.

What's the difference between a panel-mount GPS and a portable GPS for IFR use in a certificated aircraft?

A panel-mount GPS that is FAA-approved, TSO-certified, and installed per a Supplemental Type Certificate (STC) or approved data can be used as the primary means of IFR navigation, including flying GPS instrument approaches. Portable GPS devices, regardless of their features, are not approved for IFR navigation because they lack FAA certification for the airframe, do not have a certified antenna installation, and are not connected to the aircraft's navigation systems in an approved manner. The FAA's PHAK and instrument flying guidance make clear that only properly installed and approved avionics satisfy the equipment requirements of 14 CFR 91.205 and applicable IFR operations rules.

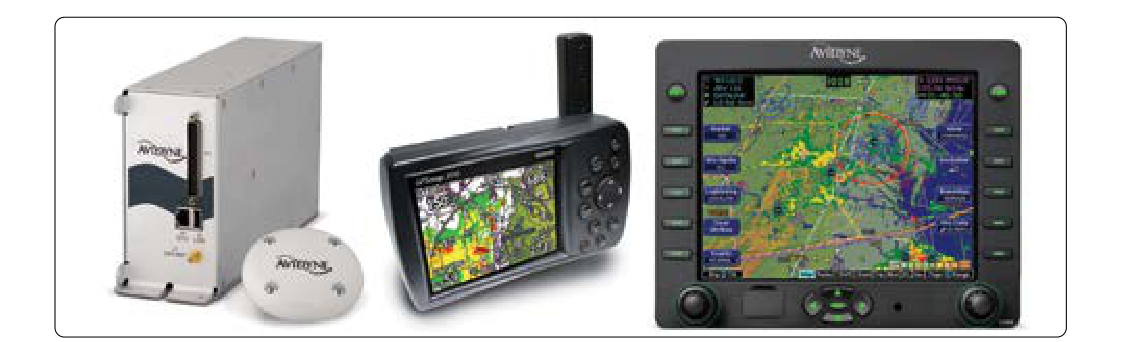

GPS Receiver Airframe Installation and Certification

Global Positioning System (GPS) receivers have become the dominant navigation technology in modern general aviation, offering precise position data derived from a constellation of satellites orbiting at approximately 20,200 kilometers altitude. For the airframe technician, installing a GPS receiver is far more involved than simply mounting a box and running wires. Every aspect of the installation — from the choice of equipment to antenna placement, wiring, database management, and final certification — must conform to FAA standards. A technically sound but improperly certified GPS installation can render an aircraft unairworthy and expose both the owner and the technician to serious regulatory consequences.

This article walks through the complete process of GPS airframe installation from a maintenance and certification perspective, covering the regulatory framework, hardware requirements, installation best practices, and the return-to-service documentation that every Aviation Maintenance Technician (AMT) must understand.

Regulatory Framework and Equipment Approval

The starting point for any GPS installation is determining what type of operation the GPS system will support. The FAA recognizes two broad categories: VFR use and IFR use. The requirements differ substantially between them.

For VFR-only navigation, a GPS receiver may be installed as an additional piece of equipment that does not affect the aircraft's type certificate data. If the installation is minor and follows an FAA-approved installation manual or Supplemental Type Certificate (STC), it may be accomplished under 14 CFR Part 43. However, even a VFR-only unit must be installed in a manner that does not interfere with required instruments or controls.

For IFR navigation — including GPS approaches, en route, and terminal operations — the equipment must meet Technical Standard Order (TSO) requirements. The two principal TSOs governing GPS airborne equipment are TSO-C129 (stand-alone GPS) and TSO-C146 (GPS/WAAS — Wide Area Augmentation System). TSO-C145 covers the airborne navigation sensor unit used in multi-sensor systems. These TSOs specify the minimum performance standards each unit must meet, including signal acquisition, accuracy, and integrity monitoring through Receiver Autonomous Integrity Monitoring (RAIM) for TSO-C129 units, or the WAAS integrity signal for TSO-C146 units.

The installation itself must be done in accordance with an approved data source. This typically means either an FAA-approved Airplane Flight Manual Supplement (AFMS) provided through a Supplemental Type Certificate (STC), or data specified in the aircraft's existing type certificate. Most GPS installations in certificated aircraft are accomplished via STC. Major GPS manufacturers such as Garmin and Avidyne hold STCs covering specific aircraft models, and the technician must verify that the STC being used is applicable to the exact make, model, and serial number of the aircraft being modified.

How a GPS Receiver Receives and Processes Signals

Understanding the hardware helps the technician make sound installation decisions. A GPS receiver determines position by measuring the time delay of signals broadcast by multiple satellites. It needs a clear line-of-sight to at least four satellites simultaneously, because the receiver must solve for four unknowns at once — three-dimensional position (X, Y, Z) and the receiver's clock bias (time error). All four satellite measurements are needed together to produce a valid 3D position fix; three satellites alone cannot resolve the clock error and therefore cannot yield a reliable fix. This fundamental requirement drives all antenna placement decisions.

GPS signals are broadcast at extremely low power in the L1 frequency band (1575.42 MHz). Because these signals are so weak, the antenna must have an unobstructed view of the sky and must be placed away from potential sources of RF interference. The antenna is typically a low-profile, blade-style or patch-style active antenna that incorporates a built-in low-noise amplifier (LNA) to boost the received signal before it travels through the coaxial cable to the receiver.

Antenna Installation Requirements

Antenna placement is one of the most critical and frequently mishandled aspects of GPS installation. The following principles govern proper placement:

Top-of-fuselage mounting: The antenna must be mounted on the upper surface of the fuselage in a location that provides an unobstructed hemispherical view of the sky. Most STCs specify acceptable mounting zones.
Separation from other antennas: GPS antennas must be separated from VHF communication antennas, transponder antennas, and especially DME antennas. DME pulses can saturate a GPS antenna's LNA if mounted too closely. A minimum separation of 1 to 3 feet (as specified by the STC or installation manual) is typical, though some installations require more.
Ground plane: Active patch antennas require an adequate metallic ground plane beneath them for correct radiation pattern characteristics. Most STC data specifies minimum ground plane dimensions.
Fuselage skin integrity: Drilling the fuselage for antenna attachment requires a structural assessment. The technician must follow the approved data for hole size, nutplate or nut/bolt attachment, and any required doublers or reinforcement.
Coaxial cable routing: The antenna cable (typically RG-400 or equivalent low-loss 50-ohm coaxial) must be routed away from high-power electrical wiring to prevent induced interference. Minimum bend radius must be maintained, and the cable must be properly secured at regular intervals.

Receiver Mounting and Wiring

The GPS receiver unit itself is typically mounted in the instrument panel or avionics bay. Panel cutouts must conform to the dimensions in the approved installation manual. Rack-style avionics trays provide vibration isolation and a positive electrical ground connection through the tray mounting hardware — a detail that is easy to overlook but is essential for proper operation.

Wiring considerations include:

Power and ground: The unit requires a clean, regulated aircraft bus voltage (typically 14V or 28V DC). The circuit must be protected with a circuit breaker or fuse of the amperage specified in the installation manual — no substitutions are permitted.
Data buses: Most modern GPS units interface with other avionics through ARINC 429 (high-speed digital data bus used in more sophisticated systems) or the older RS-232 serial interface. IFR-certified installations connected to an autopilot or flight director require verified, tested data bus connections.
CDI/course deviation output: If the GPS is to drive a separate CDI indicator, the installation wiring must be completed and verified per the wiring diagrams in the STC data package.
Lighting: Panel-mounted units require instrument lighting connections compatible with the aircraft's dimming circuit.

Database Currency

A GPS receiver used for IFR navigation must have a current navigation database. The FAA requires, through the AIM and applicable regulations, that the database be current for IFR operations. Jeppesen and other approved providers publish aeronautical data on a 28-day update cycle tied to the AIRAC (Aeronautical Information Regulation and Control) cycle used worldwide. An out-of-cycle database does not automatically ground the aircraft for VFR flight, but it may not be used for IFR approaches or procedures if the database is expired. The technician should educate the aircraft owner on this requirement and confirm database currency as part of any return-to-service inspection.

Why Proper Certification Matters

The certification paperwork is not bureaucratic busywork — it is the chain of evidence that proves the installation is airworthy. After completing a GPS installation, the technician must make a proper logbook entry per 14 CFR Part 43.9, describing the work performed, the approved data used (STC number, revision level), any parts installed (with part numbers and serial numbers), and the technician's certificate number and signature. If the installation constitutes a major alteration — which most IFR GPS installations do — an FAA Form 337 must be completed, with the original given to the aircraft owner and a copy sent to the FAA within 48 hours, and a copy retained in the aircraft records.

An Airplane Flight Manual Supplement (AFMS) provided with the STC must be placed in the aircraft flight manual. This supplement describes operational procedures and limitations for the GPS system and is legally part of the aircraft's approved flight manual.

Key Numbers and Rules

TSO-C129: Required for IFR-approved stand-alone GPS (RAIM-based integrity).
TSO-C146: Required for WAAS-capable GPS used for LPV, LNAV/VNAV, and other WAAS approaches.
28-day AIRAC cycle: Standard database update interval; database must be current for IFR operations.
14 CFR Part 43.9: Governs maintenance record entry requirements.
FAA Form 337: Required for major alterations, including most IFR GPS installations.
L1 frequency: 1575.42 MHz — the civil GPS signal frequency; useful for understanding interference concerns.
Minimum satellite geometry: GPS needs at least four satellites in view simultaneously to solve for 3D position and clock bias together, producing a valid 3D position and integrity check.

Common Test Traps

Confusing TSO-C129 with TSO-C146: C129 covers RAIM-based stand-alone GPS; C146 covers WAAS-capable units. Only C146 (WAAS) supports LPV approaches. The test may ask which TSO authorizes which capability.
Assuming VFR GPS needs no approval data: Even a VFR GPS installation must use approved data (STC or other FAA-approved method) and be properly logged. Installing without approved data creates an unapproved alteration.
Forgetting the AFMS: The Airplane Flight Manual Supplement that comes with an STC is not optional documentation — it is legally required to be in the aircraft. Omitting it leaves the aircraft in a non-airworthy configuration regardless of how good the installation is physically.
Ignoring antenna separation requirements: DME antennas in particular can desensitize a GPS antenna. The test may present a scenario where interference is traced to improper antenna placement, and the answer is always to follow the approved installation data for separation distances.
Using an expired database for IFR: A common trap question describes a GPS with an out-of-date database and asks whether the aircraft may fly an IFR approach. The answer is no — the database must be current for the GPS to be used for IFR procedures.
