Every aircraft that communicates with ATC, navigates via VOR, picks up weather broadcasts, or uses a GPS moving map relies on at least one antenna — and most general aviation aircraft carry half a dozen or more. An antenna is the transducer that converts a transmitter's alternating electrical current into electromagnetic radio waves propagating through the air, and on the receiving side, reconverts arriving radio waves back into tiny electrical signals the avionics can process. Because antennas work at the boundary between the aircraft's electrical system and the radio-frequency (RF) environment, their design, placement, and installation quality directly determine system range, accuracy, and regulatory compliance.
For the FAA Airframe Mechanic knowledge test and practical exam, you must understand the major antenna categories used on certificated aircraft, how each one works, and what the maintenance regulations and engineering guidelines require when installing or replacing them. This article covers all of that in the context of 14 CFR Part 43, the FAA's Avionics Systems handbook (FAA-H-8083-30), and related Advisory Circulars.
How Antennas Work
Radio waves are described by their frequency (cycles per second, measured in hertz) and the corresponding wavelength — the physical distance one complete wave cycle travels. Frequency and wavelength are inversely related: higher frequency means shorter wavelength. This matters enormously for antenna design because the most efficient antenna length is directly tied to wavelength. The classic half-wave dipole, for instance, is cut to exactly half the wavelength of the target frequency. A quarter-wave monopole — the most common aircraft antenna element — is half that length, relying on the aircraft's metallic skin as a ground plane to complete the electrical equivalent of the missing quarter-wave.
When an antenna is properly matched to its operating frequency, maximum energy transfers between the transmission line (coaxial cable) and free space. When the match is poor — caused by incorrect element length, damaged hardware, or a faulty coaxial connector — energy is reflected back toward the transmitter. This reflected energy is quantified as Standing Wave Ratio (SWR). An ideal SWR of 1:1 means no reflection; a ratio above roughly 2:1 indicates a problematic mismatch that reduces effective radiated power, potentially overheats the transmitter's output stage, and reduces receiver sensitivity.
Major Antenna Types Found on Aircraft
Blade and Whip Antennas
The blade antenna is by far the most common general aviation antenna. It is a streamlined, aerodynamically faired vertical element — usually aluminum or fiberglass-enclosed — mounted perpendicular to the aircraft skin. Blade antennas are used for VHF communications (118–137 MHz), VHF navigation (VOR/LOC/GS at 108–118 MHz), and marker beacon (75 MHz). Their quarter-wave monopole design provides an omnidirectional horizontal radiation pattern, meaning they radiate and receive equally well in all compass directions, which is exactly what a communication radio needs. The older bare whip antenna is functionally similar but less aerodynamically efficient; it is still found on lighter sport aircraft and older designs.
Dipole Antennas
A dipole consists of two equal conductive elements extending in opposite directions from the feed point. Dipoles are commonly used inside composite fuselages where the non-metallic skin does not provide a ground plane, and they also appear in bent or V-shaped configurations for VHF nav antennas embedded beneath fiberglass fairings. The dipole is self-contained electrically and does not depend on the airframe for its ground reference.
Loop Antennas
The loop antenna is a closed conductor formed into a rectangular or circular shape. In its classic application, the loop exhibits a figure-eight (bidirectional) radiation/reception pattern with sharp nulls perpendicular to the plane of the loop. ADF (Automatic Direction Finder) receivers historically used a rotating loop — or a fixed loop combined with a sense antenna — to determine the bearing to an NDB (Non-Directional Beacon). Modern ADF installations use a flat, fixed sense-and-loop combination flush-mounted to the belly. Although NDB usage is declining, the ADF loop remains a tested topic for the Airframe AMT exam.
Slot and Flush Antennas
A slot antenna is essentially the electromagnetic complement of a blade: a slot cut into a metallic surface radiates just as a blade projecting from the same surface would, but flush with the skin. Slot antennas reduce aerodynamic drag and are standard on high-performance and pressurized aircraft where external protrusions are undesirable. They must be covered with a dielectric (non-conductive) filler material to maintain pressure-vessel integrity and prevent moisture ingress.
High-Frequency (HF) Antennas
HF communications (2–30 MHz) require much longer wavelengths. On turbine transport aircraft, a common solution is the notch antenna or shunt antenna, where a structural discontinuity — such as a seam in the vertical fin — is used as a radiating element, fed at its base. The airframe itself becomes part of the antenna. Another approach is a wire antenna strung from the fuselage to the vertical stabilizer tip. HF antennas often require an antenna coupler (tuner) — an automatic matching network that adjusts inductance and capacitance to maintain acceptable SWR across the wide HF frequency range.
GPS and Satellite Antennas
GPS receivers operate near 1,575 MHz (L1 band). At this microwave frequency, the wavelength is only about 19 cm, so GPS antennas are compact patch antennas — flat ceramic or microstrip elements that exhibit a hemispherical upward-looking radiation pattern. This directional characteristic is intentional: GPS signals come from satellites above the horizon, and the upward pattern rejects multipath reflections from the ground. GPS antennas contain an integrated low-noise amplifier (LNA) and require DC power supplied through the coaxial cable from the GPS receiver — called phantom power or active antenna bias. Disconnecting a GPS antenna without first removing power can damage the LNA.
ELT Antennas
Emergency Locator Transmitter (ELT) antennas operate on 406 MHz (and legacy 121.5 MHz). They must be installed to provide an omnidirectional pattern and must be able to survive the crash forces that trigger the ELT. 14 CFR §91.207 mandates ELT carriage requirements, and the antenna must be checked for security and condition during each annual inspection. A damaged or improperly oriented ELT antenna can dramatically reduce the signal detectable by SARSAT satellites.
Installation Requirements
Structural and Aerodynamic Considerations

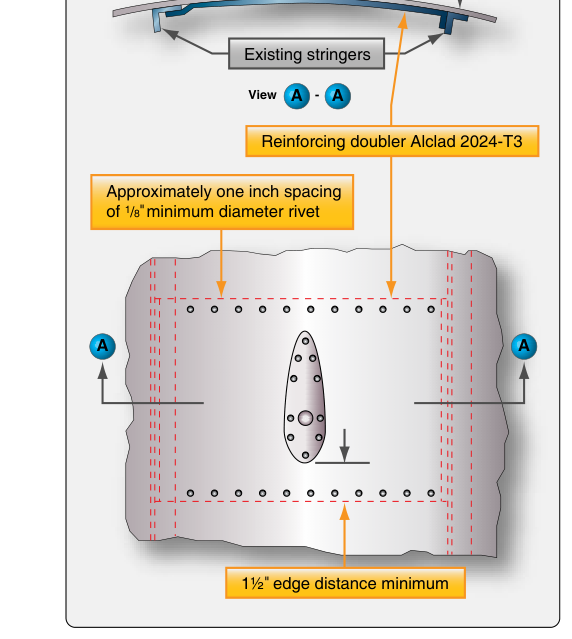

Antenna installation on a certificated aircraft is a major alteration when it involves cutting new holes in the skin, modifying the structure, or adding antennas not part of the original type design — and therefore generally requires FAA approval via a Supplemental Type Certificate (STC) or a field approval documented on FAA Form 337 under 14 CFR Part 43, unless the work matches an existing approved data source. Installing an antenna in a pre-drilled, manufacturer-approved location using the same type of antenna specified in the Aircraft Maintenance Manual (AMM) is typically a minor alteration that falls within the scope of 14 CFR Part 43 maintenance.
The mounting surface must be clean and free of anodizing or paint at the contact point to ensure electrical continuity (ground bonding) between the antenna base and the airframe. Bond resistance between the antenna mounting flange and the aircraft structure should typically be less than 1 milliohm to ensure the ground plane functions correctly and to prevent RF interference from poor bonding. After installation, a bonding check with a low-resistance ohmmeter is required.
Coaxial Cable and Connector Integrity
Antennas are connected to their avionics via coaxial cable, which consists of a center conductor, a dielectric insulator, a braided or foil outer shield, and a protective jacket. The characteristic impedance of the cable — almost universally 50 ohms for aircraft RF applications — must match the antenna and the transceiver. Common connector types include BNC (used for lighter-duty VHF applications), TNC (threaded version of BNC for vibration environments), and the robust Type N connector used on high-power or microwave circuits.
Cable runs must be routed away from high-heat sources, protected from chafing with grommets and clamps, and kept as short as practical because coaxial cable has measurable insertion loss that increases with frequency and cable length. Bending radius must not be tighter than the cable manufacturer's specification — typically a minimum bend radius of 10× the cable's outer diameter — to avoid crushing the dielectric and altering impedance.
Separation and Interference
Antennas for different systems must be physically separated and, where practical, mounted on opposite sides of the aircraft to reduce mutual coupling. A standard practice is to install communication antennas on the belly (looking down for ground-station geometry during approach) and navigation antennas on top (looking up toward VOR ground stations and satellites). VOR and GPS antennas should be kept well away from ADF loops to prevent harmonic interference. DME and transponder antennas, which can radiate significant pulse power, should be separated from one another by at least 12 inches to prevent cross-excitation.
Why It Matters
A poorly installed antenna is not just an avionics nuisance — it is an airworthiness concern. A communication antenna with high SWR can burn out a VHF transceiver's output transistors. A loose GPS antenna on a GPS-based approach will cause navigation data dropouts at the worst possible moment. A corroded ELT antenna may prevent a rescue signal from being relayed by satellite after a crash. Because antennas are exposed to vibration, temperature extremes, moisture, and UV radiation, they degrade over time and must be inspected at every annual or progressive inspection for cracks, loose mounting hardware, delamination of fiberglass fairings, and connector corrosion.
Key Numbers and Rules
- SWR threshold: Greater than 2:1 indicates a significant impedance mismatch requiring troubleshooting before return to service.
- Bond resistance: Antenna base to airframe structure should measure less than 1 milliohm with a calibrated low-resistance meter.
- Coaxial impedance: 50 ohms for virtually all aircraft RF systems.
- Minimum cable bend radius: Typically 10× the outer diameter of the specific coaxial cable.
- DME/transponder separation: Minimum 12 inches between antennas for these high-pulse-power systems.
- Major alteration trigger: Cutting new skin penetrations or adding antennas outside approved data = major alteration requiring FAA approval.
- ELT antenna inspection: Required at each annual inspection per 14 CFR §91.207.
- GPS phantom power: Always remove DC bias from the GPS receiver before disconnecting the antenna coax to protect the LNA.
Common Test Traps
- Ground plane dependence: Students often forget that a quarter-wave monopole (blade/whip) relies on the metallic airframe as its electrical ground plane. On a composite aircraft, a dipole or a ground plane must be provided separately.
- Major vs. minor alteration confusion: Simply replacing a like-for-like antenna in an approved location is a minor repair; cutting a new hole for an unapproved location or type is a major alteration needing FAA approval.
- GPS antenna polarity: GPS patch antennas are right-hand circularly polarized (RHCP). Installing a linearly polarized antenna in its place will cause a significant signal loss — a common distractor answer on written exams.
- SWR interpretation: A high SWR always indicates a mismatch — but the cause could be a damaged antenna, a bad connector, a kinked coax, or even an avionics failure. Test questions may present SWR as a symptom and ask for the diagnostic step, not just the definition.
- ELT antenna orientation: The ELT antenna must be vertical (upright) when the aircraft is in its normal ground attitude. Installing it at an angle reduces omnidirectional coverage and may be an airworthiness finding.
