Integral Wet Wing Fuel Tank Sealing and Leak Repair

In many modern aircraft — from high-performance general aviation singles to large transport-category jets — the wing structure itself serves as the fuel container. Rather than installing a separate bladder or rigid tank inside the wing, manufacturers seal the internal cavities formed by the spars, ribs, and skin panels so that fuel is held directly against the structural aluminum or composite surfaces. This design is called an integral wet wing fuel tank, and it offers significant advantages in weight, capacity, and aerodynamic efficiency. However, it also demands a precise understanding of fuel-resistant sealants, leak identification, and repair techniques — all of which are core knowledge for the Aviation Maintenance Technician (AMT) working on the airframe.

This article covers the construction principles, sealing materials, inspection methods, and FAA-accepted repair practices for integral wet wing tanks, grounded in the FAA's Aviation Maintenance Handbook — Airframe (FAA-H-8083-31) and relevant 14 CFR Part 43 requirements.

How Integral Wet Wing Tanks Are Constructed

The wing box — the structural assembly formed by the front spar, rear spar, upper and lower wing skins, and the internal ribs — naturally forms a series of closed bays. In a wet wing design, each of those bays is sealed to hold fuel. The entire sealing system depends on fuel-resistant polysulfide sealant, sometimes called thiokol or PR (Pro-Seal) sealant after common trade names, though the correct generic term is polysulfide compound. This two-part material is mixed immediately before application, cures to a rubber-like consistency, and bonds tightly to aluminum, titanium, and certain composite surfaces.

Sealant is applied in several distinct layers, each serving a specific purpose:

Faying surface seal: Applied between mating structural surfaces (such as the skin and the rib flange) before the fasteners are installed. This layer prevents fuel from wicking between closely fitted metal surfaces through capillary action.
Fillet seal: A bead of sealant applied in the corner (fillet) where two structural members meet on the interior tank surface, such as along the base of every rib and spar. This is the primary seal that resists hydrostatic fuel pressure.
Injection seal: Sealant injected through small ports or around fasteners after assembly, used to fill voids that cannot be reached during initial construction.
Brush coat (or wet installation): A thin coat of sealant applied over fastener heads and around access panel flanges to prevent weeping around fastener holes.

During original manufacture, every fastener that passes through the tank boundary is installed wet — meaning sealant is applied to the shank before installation so that the hole is sealed from the moment the fastener is driven. Access panels and fuel cap flanges use gaskets plus fillet seals and, in many designs, a secondary brush coat on top of the fastener heads inside the tank.

Sealant Properties and Handling

Polysulfide sealants are classified by their application viscosity and cure time. Common classes include a pourable or low-viscosity grade for injection and brush applications, and a thicker non-sag grade for fillet beads on vertical and overhead surfaces. Manufacturers specify the exact class in the applicable Structural Repair Manual (SRM) or Maintenance Manual — the AMT must always consult the aircraft-specific documentation rather than substituting a different grade.

Mixing ratio is critical. Most two-part polysulfide systems specify a precise ratio of base compound to accelerator by weight. An incorrect ratio produces a product that may never fully cure, may cure too brittle, or may lose its fuel resistance. Once mixed, the material has a limited pot life — the specific duration depends on temperature and the specific product — after which it begins to gel and cannot be properly applied. Cure times to handling strength and to full fuel resistance vary considerably by product and manufacturer specification; FAA-H-8083-31 does not mandate a universal cure schedule, so the SRM and the sealant manufacturer's product data sheet will specify minimum cure times before fuel can be introduced.

Temperature has a strong influence on both pot life and cure rate. Cold conditions slow curing dramatically; manufacturers specify a minimum ambient temperature for sealant application on the product data sheet, and this threshold varies by product — the AMT must consult the specific sealant's technical data rather than assuming a standard figure, and controlled heating during cure may be required. Solvents, oils, fuel residue, and moisture on the bonding surface will all degrade adhesion, so surface preparation — typically solvent cleaning followed by application within a specified window — is mandatory.

Leak Inspection and Classification

The FAA's Aviation Maintenance Handbook — Airframe (FAA-H-8083-31) describes a standardized method of classifying fuel leaks by severity so that maintenance decisions can be made consistently. The three standard classifications are:

Stain: An area of fuel wetness or discoloration, generally no larger than a specified size, with no fuel drops forming. Generally the lowest urgency but requires tracking and repair during scheduled maintenance.
Seep: An area of fuel wetness larger than a stain where a drop may form but does not fall from the surface. Maintenance action is typically required before the next flight or within a short interval specified by the manufacturer's maintenance manual.
Heavy seep or running leak: Fuel forms a drop fast enough to fall from the surface, or actively drips or flows. This condition is classified as not airworthy, and the aircraft must be grounded with the affected tank defueled until repair is complete.

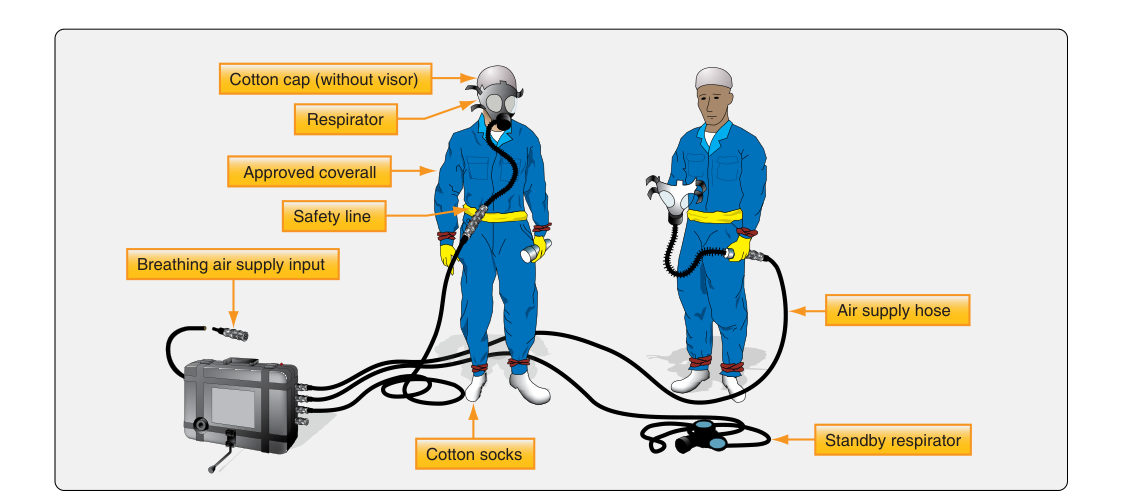

Inspecting an integral tank requires entering through access panels (following confined-space safety procedures and using only explosion-proof lighting) or performing an external inspection for staining. Because fuel is transparent and evaporates quickly, colored dye testing or pressure testing with clean dry air or nitrogen is used to locate the exact source. Never use oxygen or any oxidizer for pressure testing a fuel system — only inert gas or clean, dry, oil-free compressed air, and only at pressures specified in the aircraft-specific maintenance manual, since acceptable test pressures vary significantly by aircraft type and are not governed by a single universal figure, in order to avoid structural damage or sealant disruption.

Leak Repair Procedures

All repair work on an integral fuel tank must be performed in accordance with the aircraft manufacturer's SRM or an FAA-approved equivalent data source, per 14 CFR Part 43. Generic or improvised repairs are not acceptable. The general repair sequence is:

Defuel and purge: Drain the affected tank completely and purge fuel vapors with fresh air until the fuel vapor concentration is below the lower explosive limit (LEL). Verify with a calibrated combustible gas detector. This is a critical safety step — fuel vapors are heavier than air, pool in low areas of the wing, and can ignite from a spark or static discharge.
Identify the exact leak source: Use pressure testing or dye to pinpoint the location — a fastener, a fillet crack, a disbonded seam, or a damaged access panel seal.
Remove old sealant: Deteriorated or disbonded sealant must be mechanically removed using plastic or wooden scrapers (to avoid scratching aluminum), followed by solvent cleaning. Avoid tools that could damage the substrate or create metal contamination in the tank.
Surface preparation: The bonding area must be clean, dry, and — for aluminum — free of corrosion products. Some SRMs specify chemical conversion coating (Alodine) on any bare aluminum exposed during sealant removal before new sealant is applied.
Apply new sealant: Following the SRM specification for sealant grade, apply faying surface seal if structural disassembly is required, fillet seal as the primary repair layer, and brush coat over fastener heads as needed. The bead must be continuous with no voids, bubbles, or gaps, and must achieve the profile (height, width, and radius) shown in the manual.
Cure, inspect, and pressure test: Allow the specified cure time, then perform a low-pressure leak check before refueling. Document the repair on FAA Form 337 if it constitutes a major repair, or in the maintenance record per 14 CFR Part 43.9 for minor repairs.

Why This Matters for Airworthiness

Fuel leaks in integral tanks represent a direct fire and structural hazard. Fuel contacting hot brake components, electrical wiring, or engine exhaust can cause fires. Prolonged fuel contact with aluminum alloys can contribute to corrosion, particularly at areas where sealant has failed and fuel is trapped between layers. The wet wing design, while efficient, places the integrity of the aircraft structure directly in contact with a flammable liquid — there is no redundant containment layer as there is with a bladder tank. This is why FAA-H-8083-31 treats sealant repairs with the same rigor as structural repairs.

Key Numbers and Rules

Two-part polysulfide sealant must be mixed at the manufacturer-specified ratio by weight — do not estimate.
Pot life and cure times vary by grade, product, and temperature; discard mixed sealant that has begun to gel, and always verify specific durations with the SRM and the sealant manufacturer's product data sheet.
Pressure testing uses inert gas or dry air only, never oxygen, at pressures specified in the aircraft-specific SRM — acceptable pressures vary by aircraft type and are not a single universal figure.
Repairs must be documented per 14 CFR Part 43.9; major repairs require FAA Form 337 and approved data.
Minimum application temperature varies by sealant product — always confirm with the specific product data sheet rather than assuming a standard threshold.

Common Test Traps

Confusing leak classifications: A stain and a seep are often used interchangeably in casual speech, but they have distinct meanings in the maintenance manual classification system, and a heavy seep or running leak is a third, more serious category. A running leak (active drip) is the most serious and grounds the aircraft immediately.
Wrong gas for pressure testing: Test questions frequently offer oxygen as a distractor. Only inert gas or clean dry air is acceptable — oxygen creates an explosion hazard with fuel vapors.
Skipping surface preparation: Applying sealant over residual fuel, corrosion, or oil contamination is a leading cause of premature sealant failure. The SRM's prep steps are mandatory, not optional.
Ignoring pot life: Mixed sealant that has begun to thicken will not achieve proper adhesion even if it appears to apply smoothly. Always start with a fresh mix if pot life has been exceeded.
Major vs. minor repair classification: Not every sealant repair is a minor repair. If the repair involves removing and re-seating structural fasteners in a primary tank boundary, it may meet the definition of a major repair requiring approved data and Form 337 documentation.
