Vortex Generator Function and Boundary Layer Control on Swept Wings

Introduction: Why Swept Wings Need Help

Swept wings are the defining shape of transport-category aircraft. The sweepback that allows an airliner to cruise efficiently at high subsonic Mach numbers also introduces a fundamental aerodynamic challenge: the boundary layer — that thin, critical sheet of air clinging to the wing surface — tends to migrate spanwise toward the wingtip rather than flowing straight aft. Left unchecked, this migration thickens the boundary layer at the tip, promotes early flow separation near the ailerons, and degrades both stall warning and lateral control. Vortex generators (VGs) are one of the primary engineering solutions to this problem, and understanding their function is essential knowledge for the ATP-level pilot.

The Boundary Layer: A Quick Primer

The boundary layer is the thin region of air immediately adjacent to the wing surface where viscosity causes the airflow to slow from free-stream velocity down to essentially zero at the surface itself. The FAA Pilot's Handbook of Aeronautical Knowledge (PHAK, FAA-H-8083-25) describes two distinct boundary layer states:

Laminar boundary layer: Smooth, sheet-like flow with low skin-friction drag. It is relatively thin and has limited ability to resist an adverse pressure gradient (rising pressure in the direction of flow).
Turbulent boundary layer: Chaotic, mixing flow with higher skin-friction drag but significantly greater momentum and resistance to separation under adverse pressure gradients.

When airflow encounters the adverse pressure gradient that exists aft of the point of minimum pressure on the upper wing surface, the boundary layer decelerates. If it decelerates to zero velocity before reaching the trailing edge, the flow separates from the surface. This separation, once it progresses to the point that a further increase in angle of attack produces a decrease in lift coefficient beyond the critical angle of attack, is what defines a stall. The key insight is that a turbulent boundary layer, despite its higher drag, carries far more kinetic energy and therefore resists separation far better than a laminar one. Vortex generators exploit this fact deliberately.

What Vortex Generators Are

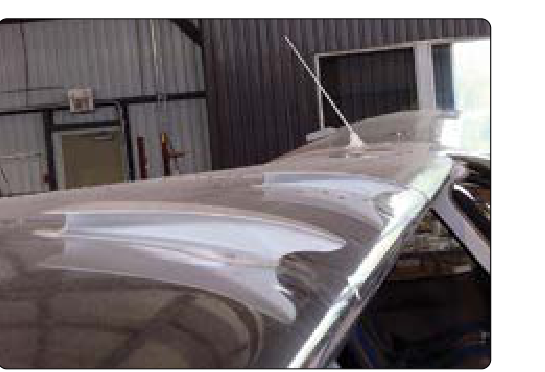

Vortex generators are small, blade-like or fin-like tabs, generally sized on the order of the local boundary layer thickness — commonly well under an inch tall, and often under half an inch — mounted in rows on the upper wing surface ahead of the region most susceptible to separation. On a typical swept-wing transport, VGs are commonly located near the leading edge or in the forward portion of the chord. They are usually made of aluminum or composite material and are attached at an angle of incidence to the local airflow so that each small blade generates a tip vortex — a miniature, tightly wound rotating column of air.

VGs may be arranged in pairs with alternating incidence angles, creating counter-rotating vortex pairs, or in rows with the same incidence angle, creating co-rotating vortices. Both counter-rotating and co-rotating arrangements are used in practice depending on the specific design goals of the installation, and the choice reflects wind-tunnel and flight-test optimization for a given airframe rather than a single universally superior configuration.

How Vortex Generators Control the Boundary Layer

Each VG acts like a tiny wing at a high angle of attack. It produces lift and, crucially, a strong trailing vortex at its tip. This vortex rotates in such a way that it pulls high-momentum, high-energy air from the free stream down into the sluggish lower portion of the boundary layer. The result is a process called boundary layer energization.

By continuously injecting momentum from the outer, faster-moving flow into the boundary layer, VGs effectively convert a laminar or weakly turbulent boundary layer into a vigorous, energetic turbulent boundary layer downstream of the device. This energized layer can overcome a much steeper adverse pressure gradient before separating. In practical terms, flow separation is delayed to a higher angle of attack, which translates directly into:

A higher stall angle of attack and a higher maximum lift coefficient (CL max)
More gradual, progressive stall onset rather than an abrupt leading-edge stall
Improved aileron effectiveness at high angles of attack because the flow remains attached further outboard
Increased buffet margin, delaying buffet onset to a higher angle of attack or speed in some configurations

The Spanwise Flow Problem on Swept Wings

On a swept wing, the component of free-stream velocity perpendicular to the leading edge decreases from root to tip. This spanwise pressure gradient causes boundary layer air to drift outboard. Over the span of a large swept wing, this accumulation is substantial — the tip region receives a thick, low-energy boundary layer that has traveled all the way from inboard sections. Because tips are where ailerons live, tip stall is particularly dangerous: it can cause an uncommanded roll and simultaneously destroy lateral control at the worst possible moment.

VGs address this directly. By energizing the boundary layer at strategic chordwise and spanwise locations, they inhibit the outboard migration of separated flow. Many transport-category aircraft use VG arrays that are densest in the mid-to-outer wing panel precisely because that is where spanwise boundary layer accumulation is most severe. Some aircraft also use VGs on the nacelles, engine pylons, and horizontal stabilizers to manage local separation in those areas.

Vortex Generators and High-Lift Systems

During approach and landing, slats and flaps dramatically increase the wing's camber and angle of attack capability, but they also introduce additional adverse pressure gradients and complex flow interactions between the main wing element and the high-lift surfaces. VGs help the boundary layer negotiate these demanding conditions. On aircraft certified with specific VG installations, removal or damage to VGs can alter stall speeds, potentially increasing them beyond the values used to compute V-speeds, and can change the stall warning characteristics that the certification program relied upon.

This is why the FAA and aircraft manufacturers treat VGs as airworthiness-critical components on the aircraft for which they are part of the approved type design. Depending on the specific aircraft and its FAA-approved documents, loss of a VG (or a row of VGs) may need to be addressed per the Airworthiness Limitations, the Minimum Equipment List, or the maintenance manual/Structural Repair Manual — the applicable guidance varies by type design. Pilots operating under 14 CFR Part 121 and 135 must be familiar with any MEL provisions applicable to VG condition on their aircraft.

VGs and the Stall Warning System

Transport-category aircraft are certificated under 14 CFR Part 25, which requires clear and distinctive stall warning with adequate margin before the stall. Stall strips, angle-of-attack vanes, and stick shakers are calibrated on the assumption that the wing's separation characteristics — heavily influenced by VGs — remain intact. A damaged or altered VG array can change where on the wing separation initiates and how quickly it progresses, potentially shifting the effective stall angle of attack and undermining the calibration of the stall warning system. This is a compliance and safety issue of the highest order for air carrier operations.

Drag Penalty and Design Trade-offs

Nothing in aerodynamics is free. VGs introduce parasite drag — each small blade creates profile drag and interference drag. Aircraft manufacturers conduct extensive wind-tunnel and flight-test programs to find the minimum number and optimal placement of VGs that achieves the required boundary layer control with the least drag penalty. In cruise, VGs represent a small but real fuel-burn cost. For this reason, some modern high-efficiency aircraft use refined airfoil profiles and leading-edge devices designed to minimize the need for VGs in the first place, while others accept the drag trade-off in exchange for robust low-speed handling.

Practical Cockpit Awareness

As an ATP-level pilot, your awareness of VGs should include these practical points:

Preflight inspection: Check for missing, bent, or delaminated VGs during the walkaround. Even a single missing VG in a critical row may require a maintenance write-up.
Ice accumulation: Ice bridging over VGs can negate their effect entirely. This is one reason why anti-ice and de-ice systems must be operative before flight into known icing conditions on aircraft that rely on VGs for stall behavior.
Performance data validity: Published V-speeds (VS, VSR, VMCA) are based on a wing with intact, properly installed VGs. Any deviation may invalidate those numbers.
Modifications: Supplemental Type Certificate (STC) kits that add VGs to smaller aircraft or retrofit them to existing designs can meaningfully change stall speed and handling — always verify the approved AFM supplement.

Memory Aid

To remember what VGs do, think of the phrase "Stir, Stick, Stay": VGs Stir high-energy air into the boundary layer, help it Stick to the surface under adverse pressure, and allow the aircraft to Stay in controlled flight to a higher angle of attack. Each word maps directly to the energization, attachment, and stall-resistance functions of the devices.

Common Test Traps

VGs do NOT reduce skin-friction drag — they intentionally promote turbulence, which increases local skin-friction drag. Their benefit is separation delay, not drag reduction.
Swept-wing tip stall is worse, not better, without VGs — students sometimes confuse the general advantage of sweep (delayed compressibility effects) with stall behavior. Sweep aggravates spanwise flow and tip stall tendency; VGs help correct this.
A missing VG is an airworthiness concern — test questions may imply that a single missing VG is trivial. On certificated transport aircraft, VG condition is part of the airworthiness baseline and must be addressed per the applicable MEL or maintenance manual.
VGs affect stall warning calibration — the stick shaker and stall warning systems are calibrated with VGs in place. Altered VG arrays can shift stall onset location and invalidate warning system margins.
VGs are not the same as leading-edge cuffs or stall strips — stall strips trigger early leading-edge separation at a specific spanwise station to provide progressive stall onset; VGs prevent separation. Both affect stall character but by opposite aerodynamic mechanisms.
