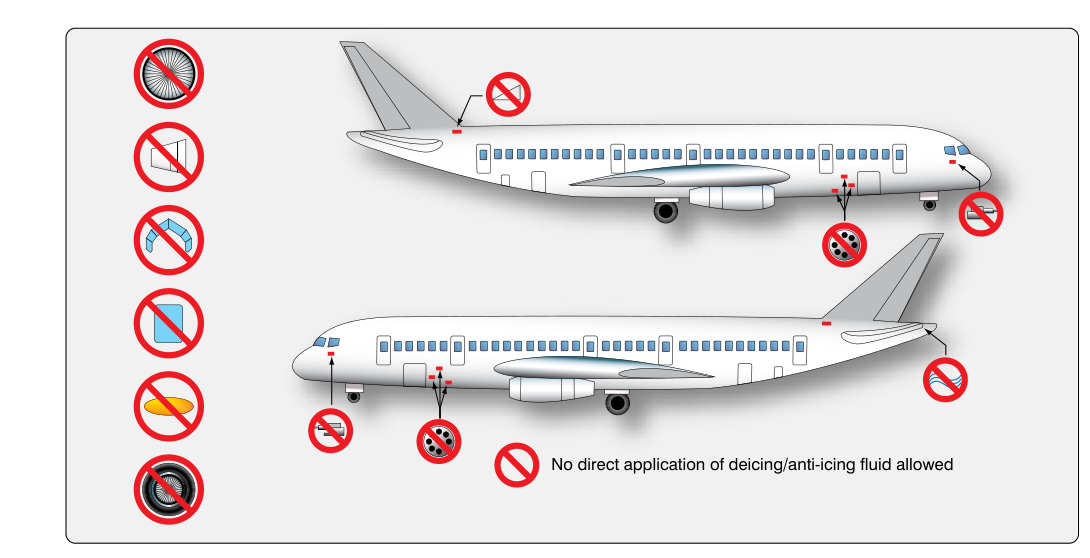

Ice accumulation is among the most treacherous hazards in aviation. Even a thin, rough coating on an airfoil—about the texture of coarse sandpaper—can reduce lift by as much as 30 percent and increase drag dramatically, according to NASA and FAA research summarized in the Pilot's Handbook of Aeronautical Knowledge (PHAK, FAA-H-8083-25). For commercial pilots, the stakes are higher still: 14 CFR Parts 121 and 135 impose specific equipment and operational standards for flight into known icing conditions. A thorough understanding of engine deicing and anti-icing system types—how each works, when to use it, and where pilots go wrong—is both an FAA Commercial Pilot Knowledge Test requirement and a genuine life-safety competency.
The Core Distinction: Anti-Icing vs. Deicing
Before examining individual systems, you must internalize the operational difference between the two categories. An anti-icing system is designed to prevent ice from forming in the first place. It is activated before entering icing conditions or at the very first sign of visible moisture near freezing temperatures. An anti-icing system that is turned on after significant ice has already built up will be far less effective and may not be capable of clearing what has already adhered.
A deicing system, by contrast, is designed to remove ice that has already accumulated. It is typically activated after a measurable layer of ice has formed, then cycles to break that ice away. Using a deicing device as if it were an anti-icing device—turning it on before any ice forms and leaving it running continuously—can reduce its effectiveness and, in the case of pneumatic boots, may cause the dreaded ice-bridging problem discussed below.
These definitions are not merely academic. Selecting the wrong activation timing for either system type is a recognized accident cause and a heavily tested concept on FAA knowledge exams.
Reciprocating Engine Ice Protection
Carburetor Icing and Carburetor Heat
Carbureted reciprocating engines are uniquely vulnerable to carburetor ice. Inside the carburetor venturi, two separate phenomena drive temperature down sharply: the venturi effect accelerates airflow and drops pressure (which cools the air), and the vaporization of fuel absorbs additional heat energy. The combined effect can reduce local temperature by as much as 70°F (approximately 38°C) below the outside air temperature (OAT). This means carburetor ice can form at OATs as high as 70°F (21°C) when relative humidity is elevated—a fact that surprises many pilots who associate icing only with near-freezing conditions.
The standard protection is carburetor heat, which is an anti-icing device. It routes unfiltered air that has been heated by the exhaust manifold into the induction system, raising carburetor throat temperature above the icing threshold. A critical technique point: always apply full carburetor heat. Partial carburetor heat is dangerous because it can warm moist air just enough to increase ice formation, or partially melt existing ice into slush that refreezes in a more damaging location downstream. Additionally, because carb heat introduces unfiltered air, a slight, temporary RPM drop or roughness upon application is normal and expected—this is not a malfunction. A subsequent RPM rise as ice melts confirms ice was indeed present.
Pilots should also be aware that applying carb heat during takeoff or at high power settings requires caution because the heated air is less dense, reducing engine power output. Most POHs specify that carb heat should not be used during takeoff unless ice formation is actually occurring.
Fuel-Injected Engine Induction Icing
Fuel-injected engines lack a carburetor venturi and are therefore not susceptible to carburetor ice. However, they remain vulnerable to induction system icing—ice that accumulates at the air filter or intake opening and progressively restricts airflow to the engine. These aircraft are typically equipped with an alternate air source, a spring-loaded or manually operated bypass door that opens to draw warmer, unfiltered air from within the engine compartment when the primary intake becomes blocked. Unlike carburetor heat, the alternate air system on many fuel-injected engines opens automatically if intake blockage creates sufficient suction differential, though pilots should verify the specific behavior described in the aircraft's POH.
Turbine Engine Ice Protection Systems
Bleed Air (Thermal) Anti-Icing
Large turbine-powered aircraft most commonly use bleed air thermal anti-icing for engine inlets. Hot, high-pressure air is tapped from an intermediate or high-pressure compressor stage and routed through piccolo tubes or annular passages within the engine inlet lip and nose cowl. This continuously heats the inlet structure, preventing ice adhesion. The system is an anti-icing device and should be activated before entering icing conditions.
A significant operational consideration is that extracting bleed air from the compressor reduces the air available for thrust generation, resulting in a measurable decrease in available engine power. Flight crews must account for this performance penalty in fuel planning and thrust management, especially during critical phases of flight. Additionally, activating engine anti-ice when it is not needed wastes bleed air and increases fuel burn, so pilots must exercise sound aeronautical decision-making about when to turn it on.
Electrical Anti-Icing and Deicing
Smaller turboprop and turbofan aircraft sometimes use electrically heated elements embedded in the inlet structure instead of bleed air. Electrically heated systems avoid the compressor performance penalty of bleed air extraction and are well-suited to aircraft where bleed air availability is limited. Some systems operate continuously as anti-icing devices; others cycle on and off and function as deicing devices. The aircraft's flight manual will specify the correct operating mode.
Inlet Guide Vane and Compressor Face Protection
Beyond the inlet lip, many turbine engines also protect inlet guide vanes and the compressor face with bleed air or electrical heat. Ice forming on guide vanes and then shedding into the rotating compressor can cause compressor stalls or physical foreign-object damage (FOD) to compressor blades—both serious mechanical hazards. Engine manufacturers and operators specify whether guide vane heat must be activated concurrently with inlet anti-icing or independently.
Pneumatic Deicing Boots
Pneumatic deicing boots are inflatable rubber bladders bonded to leading edge surfaces, including—on some aircraft designs—engine inlet lips. They are powered by engine-driven pneumatic pumps or, on some turbine aircraft, bleed air. When deflated, boots conform to the airfoil shape. After ice accumulates to a sufficient thickness (often described in the AFM as one-quarter to one-half inch), the pilot activates the system, inflating the boots. The expansion mechanically cracks and shatters the ice, which is then carried away by the airstream.
Boots are unambiguously a deicing device—not an anti-icing device. Activating them before adequate ice has accumulated can cause ice bridging: the boot inflates, forms a slightly larger profile under thin ice, deflates, and the ice re-adheres over the new, slightly larger shape. Subsequent inflation cycles may no longer be able to crack ice that has conformed to the expanded profile. This is a well-documented hazard emphasized in the PHAK and Instrument Flying Handbook (FAA-H-8083-15).
Regulatory and Certification Context
Under 14 CFR Part 91, pilots are prohibited from flying into known icing conditions unless the aircraft is certified and equipped for such operations. Parts 121 and 135 add further operational requirements, including specific equipment approvals. Simply having carburetor heat or pneumatic boots does not automatically confer approval for flight into known icing (FIKI) conditions—the aircraft must carry the appropriate airworthiness certification, and pilots must verify this in the POH/AFM limitations section before dispatching into forecast icing. The Airplane Flying Handbook (FAA-H-8083-3) and the PHAK both stress that understanding system limitations is as important as knowing how to operate them.
Key Numbers and Rules
- Carburetor ice possible up to ~70°F (21°C) OAT when relative humidity is high—not just near freezing.
- Always apply full carburetor heat—partial carb heat risks worsening ice formation.
- Bleed air anti-icing reduces available thrust—account for performance penalties in planning.
- Boot activation timing matters—activate after sufficient ice accumulation (typically one-quarter to one-half inch), not before, to prevent ice bridging.
- Anti-icing = activate before or at onset of icing; deicing = activate after ice has formed—this distinction drives all system-specific procedures.
- FIKI certification is specific—verify it in the AFM limitations before flight into known icing.
Common Test Traps
- Partial carb heat is worse than none. Many students think partial heat is a conservative middle ground—it is not. It can increase ice formation or convert ice to refreezing slush.
- Carb ice forms in warm temperatures. The knowledge test frequently presents scenarios with OATs well above freezing to test whether students understand the venturi-and-vaporization mechanism.
- Boots are not anti-icing. Inflating boots before ice forms is incorrect technique and a cause of ice bridging—the test often presents this as a tempting but wrong answer.
- Having ice protection ≠ FIKI approval. Aircraft must carry specific airworthiness approval for known icing operations; equipment alone is not sufficient.
- A temporary RPM drop when applying carb heat is normal. Some students interpret this as evidence that carb heat is harming the engine. A subsequent rise in RPM is the meaningful diagnostic indication that ice was melting.
Memory Aid
Anti = Ahead (prevent before ice forms); De = Destroy what's already there. This contrast locks in the activation logic under pressure and keeps the two categories from blurring during an exam or in the cockpit.
