Every time a pilot or mechanic glances at an oil pressure gauge, a fuel pressure indicator, or a manifold pressure gauge, they are trusting a chain of mechanical and pneumatic components to deliver an honest reading. When that chain has a weak link — whether it is an improperly calibrated bourdon tube, a pressure line full of trapped air, or a pulsating pump with no dampening device — the result can be dangerously misleading instrument indications. Understanding how engine pressure gauges work, where accuracy errors originate, what lag error means in practice, and how snubber devices protect instruments is essential knowledge for any Aviation Maintenance Technician (AMT) seeking Powerplant certification.
This article covers the principles behind pressure instrument accuracy, the causes and consequences of lag error, and the design and maintenance of snubber (dampener) devices — all grounded in FAA Powerplant and general aviation maintenance guidance.

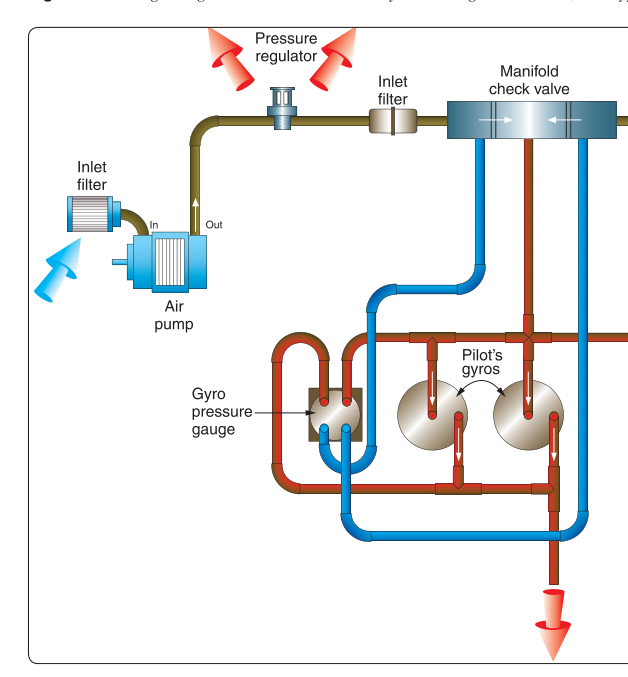

How Engine Pressure Gauges Work
Most engine pressure gauges used in general aviation aircraft rely on a bourdon tube as the primary sensing element. A bourdon tube is a curved or coiled hollow tube, sealed at one end and connected to the pressure source at the other. When pressure inside the tube increases, the tube tends to straighten; when pressure decreases, it curves back. This mechanical movement is transferred through a linkage and gear train to a pointer on the face of the instrument. The deflection of the pointer is directly proportional to the pressure applied, within the designed operating range.
Some instruments — particularly those measuring very low pressures or requiring especially smooth operation — use a diaphragm or bellows sensing element instead of a bourdon tube. The diaphragm flexes as pressure changes, and this movement drives the pointer mechanism. Regardless of the sensing element type, all pressure gauges share the same fundamental vulnerability: they can only report what the pressure line delivers to them, and they can only do so as fast as the mechanics of the sensing element allow.
Calibration and Instrument Accuracy Standards
Instrument accuracy is defined as how closely the indicated reading matches the actual pressure being applied. Accuracy is expressed either as a percentage of full-scale deflection or as an absolute tolerance in units of pressure (e.g., ±1 psi). FAA-approved instruments must meet the accuracy requirements specified in their Technical Standard Order (TSO). When an AMT installs or returns a pressure gauge to service, verifying calibration against a known-accurate test gauge is a required step — not an optional one.
Accuracy errors can arise from several sources: wear or corrosion in the gear train and linkage, a hairspring that has taken a set, a bourdon tube that has experienced plastic deformation from overpressure, or a pointer that has been bent or repositioned incorrectly. Any of these conditions can produce a zero error (the pointer does not return to zero when pressure is removed), a span error (the pointer reads correctly at one pressure but incorrectly across the rest of the range), or a nonlinearity error (the pointer is accurate at low and high values but drifts in the mid-range). All three types can exist simultaneously in a neglected instrument.
Lag Error Explained
Lag error is a delay between an actual change in pressure at the source and the corresponding movement of the instrument pointer. It is a timing error, not a magnitude error — the gauge will eventually show the correct value, but it lags behind the real-world pressure by a noticeable interval. For slowly changing parameters like oil temperature, a small lag is tolerable. For rapidly changing pressures such as those seen in a turbocharged engine during power changes, or oil pressure during engine start, lag can mask critical information at exactly the moment a pilot or technician needs it most.
The most common causes of lag error in engine pressure systems are:
- Long or small-diameter pressure lines: A long, narrow tube has significant pneumatic resistance. Pressure changes must propagate along the entire length before the instrument responds.
- Air or vapor trapped in a liquid-filled line: Oil and fuel pressure lines that contain air bubbles act as compressible accumulators, absorbing pressure pulses before they reach the gauge. The instrument may show a sluggish, dampened response or a falsely low reading.
- Excessive snubber restriction: While snubbers are intended to dampen rapid oscillations, an over-restrictive snubber — or one clogged with debris — can introduce enough lag to make an instrument dangerously slow to respond to real pressure drops.
- Viscosity effects: Cold, thick oil at engine start flows slowly through pressure lines, meaning the instrument may take several seconds to register oil pressure even when the engine is generating adequate pressure at the pump outlet.
From a practical standpoint, lag error is most dangerous during two phases: engine start (when the pilot is watching for oil pressure to register within the time limit specified by the aircraft or engine manufacturer) and rapid power changes in turbocharged or high-performance engines. An AMT troubleshooting a complaint of sluggish instrument response should inspect the pressure line for air entrapment, check the snubber for blockage, and verify that line routing does not create low points where fluid can pool and trap air.
Snubber Devices: Purpose, Design, and Maintenance
A snubber (also called a dampener or restrictor) is a device installed in the pressure line between the engine and the gauge, specifically to protect the instrument from damage caused by pressure spikes and rapid pulsations. Without a snubber, the pointer of a pressure gauge in an oil or fuel system driven by a gear-type or piston pump would oscillate visibly with every pump pulse, making the gauge difficult to read. More critically, the repeated mechanical stress of those oscillations would rapidly fatigue the bourdon tube, linkages, and gear train, causing premature instrument failure.
Snubbers work by introducing a controlled restriction to flow. The most basic type is a simple orifice snubber — a fitting with a small calibrated hole drilled through it, sized according to the instrument manufacturer's specifications for the application. This tiny orifice allows steady pressure to equalize through to the gauge but slows the transit of rapid pressure pulses. The result is that the gauge sees a time-averaged pressure rather than the raw pulsating signal.
More sophisticated snubbers use a porous metal or sintered disc as the restriction element. The sintered disc provides a large number of microscopic flow paths, giving excellent dampening while being less susceptible to complete blockage by a single piece of debris than a plain orifice. Some designs include a check-ball snubber, where a small ball seats against the orifice during rapid pressure surges (such as a hydraulic hammer event) and unseats during normal slow-changing pressure, providing surge protection on demand.
Snubber Maintenance Considerations
Snubbers are small and easy to overlook, but they require attention during maintenance. An AMT should know the following:
- A clogged snubber will cause severe lag error and may prevent the gauge from reading any pressure at all, even though engine pressure is normal. This can cause an unnecessary engine shutdown or mask a real problem by making all readings look the same.
- Snubbers should be cleaned or replaced at intervals recommended by the aircraft or engine manufacturer. Many shops replace them any time the gauge or pressure line is removed.
- Always verify that the replacement snubber has the correct orifice size for the application. Installing a snubber with too large an orifice provides insufficient dampening; too small, and lag error becomes unacceptable.
- After installation, pressure-test the system and observe the gauge response. A correctly installed snubber will show a steady pointer with minimal oscillation and a response that follows the aircraft or instrument manufacturer's specified response criteria for the installation, without excessive delay.
- Snubbers in fuel pressure systems must be made of fuel-compatible materials and must not introduce contamination into the fuel system.
Why Instrument Accuracy Matters for Safety
Combining a calibration error in a pressure gauge with added lag from a restrictive or partially clogged snubber compounds the delay before a pilot or technician recognizes a real pressure problem. In an aircraft context, that combined delay could be the difference between a precautionary landing with the engine intact and an in-flight engine seizure. The FAA stresses throughout its maintenance handbooks that instrument systems are safety-critical, and that accuracy and responsiveness are not merely academic concerns.
For turbocharged engines, an inaccurate manifold pressure gauge can cause a pilot to set power that overstresses the engine or detonates the mixture. For fuel-injected engines, an erroneous fuel pressure indication can lead to an over-rich or over-lean condition going undetected. These real-world consequences explain why instrument calibration checks and snubber inspection are required maintenance tasks, not suggestions.
Key Numbers and Rules
- Instrument accuracy is typically specified as a percentage of full-scale deflection or an absolute unit tolerance per the applicable TSO.
- A zero-error condition exists when the pointer does not return to zero after pressure is removed — a clear sign the instrument needs calibration or replacement.
- Snubber orifice sizes are application-dependent and specified by the instrument or engine manufacturer rather than by a fixed FAA numeric standard.
- Oil pressure indication timing after engine start is specified by the aircraft or engine manufacturer's approved procedures; a lag beyond the specified limit warrants immediate shutdown and investigation.
- Inspecting the snubber for blockage is among the first steps in troubleshooting sluggish gauge response.
- Replacement gauges must be FAA-approved (TSO'd or per approved data) for the installation.
Common Test Traps
- Confusing lag error with low actual pressure: A slow-rising oil pressure gauge on engine start might reflect lag (air in the line, cold oil, clogged snubber) rather than truly low engine oil pressure. The AMT must investigate the cause, not just replace the gauge.
- Assuming a snubber is purely protective with no side effects: Snubbers absolutely can introduce lag. An over-restrictive or clogged snubber turns from a protective device into a diagnostic obstacle.
- Overlooking zero error as acceptable: Some technicians assume a small zero error is harmless. It is not — a gauge that reads 5 psi at zero pressure will read 5 psi too high across the entire scale, which may mask a dangerously low pressure condition.
- Installing the wrong snubber orifice size: The FAA written test may ask about the consequence of an oversized or undersized snubber orifice. Too large means inadequate dampening and potential instrument damage; too small means excessive lag.
- Failing to purge air after line maintenance: Any time a liquid pressure line is opened, air can enter. Failing to bleed the line before return to service is a common cause of lag error complaints after otherwise routine maintenance.
