Turbine Engine Station Numbering and Gas Path Stations

When engineers, technicians, and pilots discuss what is happening inside a turbine engine, they need a precise, universally understood way to refer to specific locations along the internal gas path. Saying "somewhere between the compressor and the burner" is far too vague when performance data must be compared, limits must be checked, and faults must be isolated. The solution is a standardized station numbering system — a sequential series of reference planes that slice through the engine from inlet to exhaust, each assigned a number (and sometimes a decimal subdivision) so that temperatures, pressures, and airflow values can be reported, compared, and acted upon without ambiguity.

Although the exact station designations can vary by manufacturer and engine model, the general framework described below is consistent across much of the gas turbine industry and is commonly used in manufacturer maintenance manuals, engine specification data, and certification test procedures. It should be noted that FAA-H-8083-32 discusses gas path stations only in general terms and does not itself prescribe a rigid, universal 0–9 station numbering standard with the specific definitions presented here; such detailed station numbering conventions are largely manufacturer- and industry-specific (e.g., SAE, individual engine OEMs) rather than an FAA-mandated framework. Even so, as an Aviation Maintenance Technician (AMT) focused on powerplants, understanding this general framework is essential for reading engine performance charts, interpreting engine condition monitoring data, and troubleshooting compressor or turbine problems intelligently.

The Gas Path Concept

A turbine engine is fundamentally a device that processes a continuous column of air and combustion products. This working fluid enters at the front, has work done on it through compression, receives energy from burning fuel, and then gives up that energy through expansion across the turbine stages before exiting the exhaust. The gas path is simply the route this working fluid takes from the moment it enters the engine inlet to the moment it exits the nozzle or exhaust duct.

Station numbers define discrete cross-sectional planes perpendicular to this gas path. Think of them as invisible slices through the engine, each plane positioned at a location where conditions change in a meaningful way — such as at the inlet, between compressor stages, at the combustor entrance, at the turbine inlet, or at the exhaust. By measuring temperature and pressure at these defined planes, technicians and engineers can determine exactly how much work each major component is performing and whether it is performing within its approved limits.

Standard Station Designations

The most widely used framework assigns whole-number stations to the major component boundaries of the engine. While specific engines may add decimal stations (e.g., Station 2.5 between compressor stages), the primary stations follow a logical progression that mirrors the thermodynamic cycle:

Station 0 — Free-Stream Ambient: This is the undisturbed atmosphere well ahead of the engine inlet. Conditions here represent true ambient temperature (T0) and pressure (P0), used as the baseline against which all engine performance is referenced. This station is sometimes omitted in simpler diagrams but is always implied.
Station 1 — Engine Inlet Face (Inlet Entrance): The first physical boundary of the engine itself, at the leading edge of the inlet lip or, on some designs, at the front face of the inlet duct. On aircraft with a long inlet duct (such as aft-mounted engines), the duct itself may have its own internal stations. For many practical purposes, Station 1 and Station 2 are treated together.
Station 2 — Compressor Inlet (Engine Face): This is the most important inlet reference and is typically the first station where instrumentation is fitted. Total pressure at Station 2 (P2 or PT2) and total temperature (T2 or TT2) define the conditions that the compressor actually receives. Any inlet pressure recovery losses — due to duct friction, inlet geometry, or high-speed ram effects — appear as a difference between Station 0 and Station 2.
Station 2.5 (or intermediate stations) — Between Compressor Stages: On dual-spool or multi-spool engines, additional stations between the low-pressure compressor (LPC) exit and the high-pressure compressor (HPC) inlet allow engineers to evaluate each spool's contribution to overall compression. Station 2.5 is commonly placed at the inter-compressor duct.
Station 3 — Compressor Exit / Combustor Inlet: At the exit of the last compressor stage and the entrance to the combustion section, Station 3 represents the highest-pressure point in the engine cycle (before combustion adds heat). Compressor discharge pressure (CDP or P3) is one of the most fundamental engine health parameters. Temperature at Station 3 (T3) rises with compression; on large high-pressure-ratio engines, T3 values can reach temperatures hot enough to degrade compressor exit materials if the engine is operated outside limits.
Station 4 — Combustor Exit / Turbine Inlet: This is the hottest and most critical station in the entire engine. The gases leaving the combustor and entering the first-stage turbine nozzle guide vanes reach their peak temperature here. This temperature is called the Turbine Inlet Temperature (TIT) or T4, and it is a primary life-limiting parameter for the hot section. Direct measurement at Station 4 is often impractical due to the extreme temperatures involved, so many engines instead measure a related parameter at Station 4.5 or downstream and calculate T4 analytically.
Station 4.5 — Between High-Pressure and Low-Pressure Turbine Stages: On dual-spool engines, this station sits at the inter-turbine duct between the high-pressure turbine (HPT) and the low-pressure turbine (LPT). Temperature measured here is the Inter-Turbine Temperature (ITT) or T4.5, a value that is directly instrumented on many turboprop engines and used as a primary temperature limit for operations and maintenance on those engines.
Station 5 — Low-Pressure Turbine Exit / Exhaust Turbine Exit: Gases have now given up most of their useful energy to the turbine stages. Temperature (T5) and pressure (P5) at this station indicate the residual energy in the gas stream and are used to evaluate overall turbine efficiency. On turbofan engines, Station 5 may refer specifically to the core (hot) stream exit from the turbine.
Mixer / Exhaust Duct Inlet (Turbofan-Specific): In a mixed-flow turbofan, there is a point downstream of Station 5 where the hot core stream and the cold bypass stream begin to mix; on non-mixing turbofans or turbojets, an analogous point marks the entrance to the exhaust duct or jet pipe. This location is often labeled Station 6 in many manufacturer diagrams, but the numbering at this point in the gas path varies by manufacturer and is not standardized across the industry.
Exhaust Nozzle Inlet / Afterburner Inlet: Further downstream, just upstream of the exhaust nozzle and, on military engines, the entrance to the afterburner section, is another reference plane affecting nozzle performance and, if applicable, afterburner operation. This location is often labeled Station 7 in many manufacturer diagrams, but as with the mixer station, the exact numbering convention used at this point varies by manufacturer and is not a fixed, FAA-endorsed standard.
Station 8 — Exhaust Nozzle Throat: The narrowest point of a convergent nozzle, or the throat of a convergent-divergent nozzle. Choked-flow conditions (sonic velocity) occur at this station when the pressure ratio across the nozzle is sufficient.
Station 9 — Nozzle Exit Plane: The final station, where exhaust gases leave the engine into the atmosphere. Thrust is generated by the difference in momentum between the gas stream here and the free-stream air at Station 0.

Temperature and Pressure Designations

At each station, two types of measurements are relevant. Total (stagnation) temperature and pressure account for the kinetic energy of the moving gas and are denoted with a "T" prefix (e.g., TT4 for total temperature at Station 4). Static temperature and pressure reflect only the thermodynamic state and are denoted with an "S" prefix or without a prefix in some conventions. In practice, most engine instrumentation reports total conditions because that is what the working fluid actually experiences, and it is total enthalpy that drives compressor and turbine work.

Why Station Numbering Matters for Maintenance

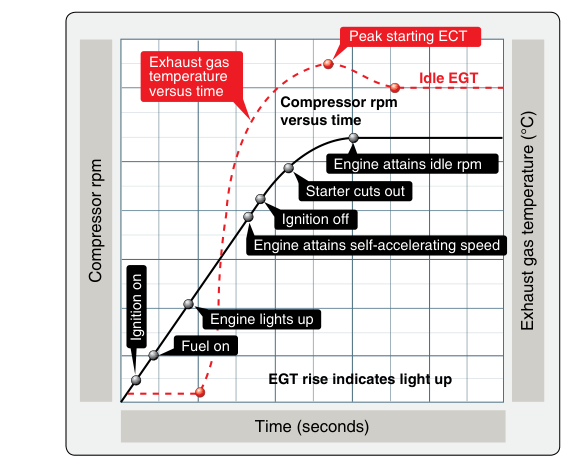

Engine condition monitoring (ECM) programs compare measured temperatures and pressures at key stations against baseline performance models. A rising trend in Exhaust Gas Temperature (EGT), which is typically measured near Station 5 or downstream in the exhaust duct, can indicate turbine blade erosion, compressor fouling, or a deteriorating combustion section — but only if the technician knows exactly which station the sensor is referencing. Misidentifying a station can lead to incorrect fault isolation, unnecessary component removal, or worse, an undetected safety hazard.

Compressor pressure ratio (P3/P2) is a direct measure of compressor health. A decreasing ratio at the same power setting signals compressor deterioration — fouled or eroded blades reducing the work done per stage. Similarly, comparing ITT (T4.5) against power turbine inlet conditions allows assessment of HPT blade condition. These analyses are only possible because the station system provides unambiguous reference points in the engine manual, the maintenance data, and the instrumentation design.

Key Numbers and Rules

Station 2 is the reference for compressor inlet conditions on essentially all turbine engine performance calculations.
Station 3 represents compressor discharge and peak cycle pressure.
Station 4 (TIT) is the thermodynamic peak temperature of the cycle and the primary life-limiting hot-section parameter.
Station 4.5 (ITT) is a commonly instrumented temperature limit on many turboprop engines used in general aviation, though the specific instrumented limit used varies by engine model and manufacturer.
EGT sensors are typically placed downstream in the turbine exit or exhaust duct area because direct T4 measurement is impractical at extreme temperatures.
Decimal stations (e.g., 2.5, 4.5) are used to define inter-spool or inter-stage locations on multi-spool engines.
Station numbers always increase from inlet (front) to exhaust (rear), following the direction of gas flow.

Common Test Traps

Confusing TIT, ITT, and EGT: These are measurements at different stations. TIT (T4) is the turbine inlet temperature — the hottest point. ITT (T4.5) is measured between turbine stages and is slightly cooler. EGT (measured downstream in the exhaust) is cooler still. Knowing which limit applies to which engine type is critical, since these terms are not interchangeable.
Assuming Station 1 = Station 2: Station 1 is at the inlet entrance; Station 2 is at the compressor face. For engines with long inlet ducts, meaningful pressure recovery losses occur between them. Treating them as identical ignores inlet duct losses.
Thinking station numbers vary freely: While manufacturers do customize decimal sub-stations and, on some engines, the exact numbering downstream of the turbine, the major whole-number stations (inlet, compressor, combustor, turbine, exhaust) follow a widely used general framework. The test expects knowledge of this general framework, not a specific proprietary variant.
Overlooking the direction rule: Station numbers always increase from front (inlet) to rear (exhaust). Any answer that reverses this sequence is incorrect.
Misidentifying where EGT is actually measured: EGT is not measured at Station 4 (turbine inlet). It is measured in the exhaust stream, well downstream of the turbine stages, because the actual turbine inlet is too hot for practical continuous thermocouple instrumentation on most engines.
