Landing gear wheel wells represent one of the most challenging fire protection environments on any aircraft. During retraction, brake assemblies carry enormous heat loads from ground operations — heat that becomes trapped inside the enclosed gear bay once the doors close. Add hydraulic lines, electrical wiring, and structural components packed into a confined space, and the potential for a fire to develop and spread undetected is significant. Because the wheel well is not visible from the cockpit and is isolated from the cabin, dedicated fire detection systems are essential to alert the flight crew before structural integrity is compromised.
This article covers how wheel well and landing gear fire detection systems are designed, the sensor technologies used, how they integrate with the broader aircraft fire protection architecture, and the key regulatory and maintenance considerations an Aviation Maintenance Technician (AMT) must understand.

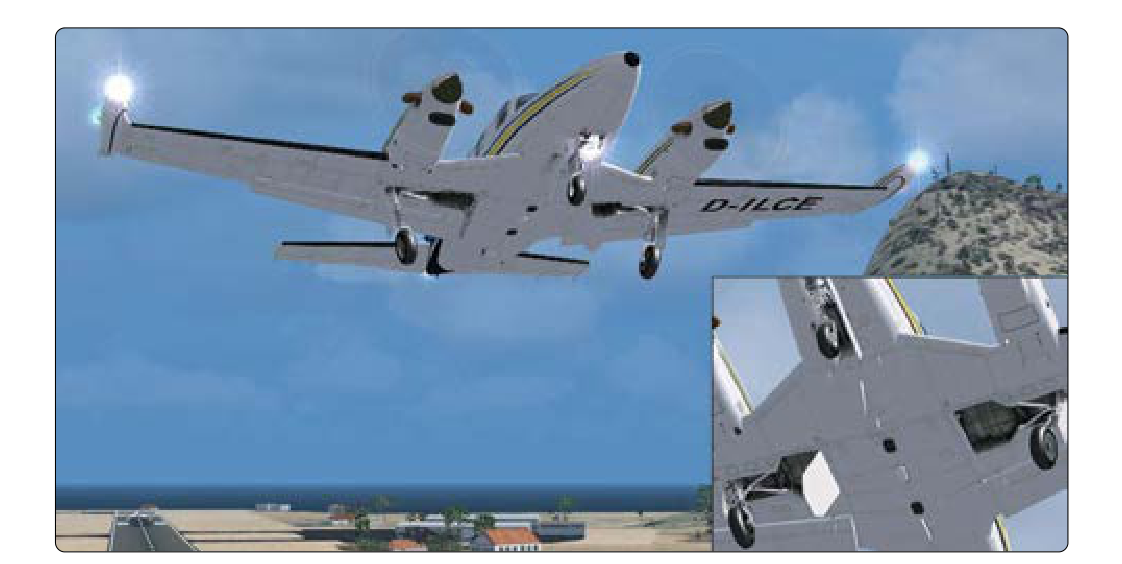

Why Wheel Wells Are High-Risk Fire Zones
The landing gear bay creates a near-perfect environment for fire development. Braking friction generates extreme heat in the brake assembly; even normal heavy landings can raise brake temperatures several hundred degrees. When the gear is retracted shortly after touchdown on a rejected takeoff or a touch-and-go, that thermal energy travels with the wheels into the closed wheel well. Hydraulic fluid under high pressure runs through lines routed through the same bay, and any chafed or fractured line can spray atomized fluid onto a hot brake or wheel hub. Electrical cables for gear position sensors, lighting, and actuator controls add ignition source potential. The closing of gear doors then seals the space, limiting ventilation and allowing heat and fuel vapor to accumulate.
Transport-category aircraft are particularly vulnerable because their wheel wells are larger, carry more hydraulic lines and actuators, and often sit adjacent to fuel tanks or main structural frames. A fire that is not detected and suppressed within seconds to a few minutes can burn through hydraulic lines, weaken wing spars, or compromise the ability to extend the gear for landing.
Detection System Technologies
Aircraft designers use several sensor technologies in wheel well fire detection systems, often in combination to reduce both false alarms and missed detections.
Thermal Switch (Spot Detector) Systems
Thermal switches are discrete temperature-sensing devices mounted at specific points within the wheel well — typically near brake assemblies, hydraulic lines, and actuator attach points. Each switch contains a bimetallic element or a eutectic alloy that changes state at a calibrated temperature. When the element reaches its rated temperature, the switch closes (or opens, depending on design) and completes a circuit that illuminates a fire or overheat warning light in the cockpit. Thermal switches are simple, reliable, and require minimal power, but they only detect heat at the exact location where they are mounted. A fire that starts between two switches may grow before either activates.
To improve coverage, designers wire multiple thermal switches together in a parallel circuit. The system activates the warning whenever any single switch reaches its threshold. Maintenance personnel must verify that each switch is correctly rated for the specific bay temperature range — switches are available in a wide variety of actuation temperatures, and installing an incorrect rating is a common and dangerous error.
Thermocouple Systems
Thermocouples work on the principle of differential temperature rise rather than absolute temperature. They generate a small electrical voltage proportional to the difference in temperature between the sensing junction (in the wheel well) and a reference junction (typically located in a cooler, stable part of the airframe). A fire warning triggers when the rate of temperature rise exceeds a set threshold — not just when a high absolute temperature is reached. This rate-of-rise characteristic makes thermocouple systems excellent at catching fast-developing fires while being more tolerant of slow, gradual temperature increases such as those that occur when hot brakes are retracted on a warm day. The result is fewer nuisance alarms while maintaining high sensitivity to real fires.
The thermocouple system uses a control unit that continuously monitors the output voltage differential. If a rapid temperature rise is detected at any sensing loop, the control unit energizes the warning circuit. Because the system responds to rate of change, it will not alarm if the entire aircraft warms slowly and uniformly — the reference and sensing junctions rise together.
Pneumatic (Continuous-Loop) Detectors
Pneumatic continuous-loop systems — commonly known by trade names such as Fenwal or Kidde — use a sealed tube filled with a gas or a gas-absorbing material that responds to heat. As temperature rises along any section of the tube, pressure inside increases. When pressure exceeds the threshold for the responder unit, it triggers the warning. These systems provide truly continuous coverage along the entire routed length of the sensing element rather than protection at only discrete points.
Some continuous-loop designs use a eutectic salt core within the sensing tube. At a specific temperature, the salt releases gas that causes a pressure rise. Other designs rely purely on the thermal expansion of the gas within the sealed tube. The pneumatic detector is well-suited to wheel wells because a single loop can be routed around brake assemblies, along hydraulic lines, and through structural bays in a continuous path. A leak or break in the sensing element itself is detected as an integrity fault, and many systems include a test circuit that pressurizes the loop to verify continuity before flight.
System Architecture and Annunciation
Regardless of sensor type, wheel well fire detection systems feed into the aircraft's centralized fire detection control panel. Most transport-category installations follow a dual-loop architecture: two independent sensing loops cover the same zone, and both must agree that a fire exists before the master fire warning annunciates. This voting logic dramatically reduces nuisance alarms caused by single-loop faults. If only one loop activates, the system may generate a caution or fault light rather than a full fire warning, prompting the crew to investigate without the urgency of an immediate emergency action.
The fire warning typically includes an illuminated red warning light on the glareshield or overhead panel, an audible bell or tone, and in some aircraft, an EICAS or ECAM message. Some aircraft integrate wheel well overheat detection as a separate caution (amber) distinct from a confirmed fire (red), giving the crew graduated information.
On most aircraft designs, wheel wells do not have integrated fire suppression systems comparable to the fire bottles installed in engine nacelles or APU bays — this is a common design practice rather than a codified requirement, and technicians should always confirm the specific configuration for their aircraft type. The primary response is crew action: leaving the gear extended if retraction is suspected to be the cause, depressurizing hydraulic systems to stop fluid spray, and proceeding to land as quickly as possible.
Key Numbers and Rules
- 14 CFR Part 25.857 and 25.858: These sections establish cargo and baggage compartment classification and fire detection requirements; they do not specifically address wheel well or landing gear bay fire detection. Part 25.1203 addresses fire detector system requirements generally, including powerplant installations, but likewise does not specifically address wheel wells. Wheel well fire/overheat detection is typically incorporated as a manufacturer design choice or addressed through the aircraft's specific type certification basis rather than a single, dedicated Part 25 rule.
- Sensor placement: FAA advisory material and manufacturer maintenance manuals specify minimum sensor density and placement to ensure coverage of the highest-risk points — brake assemblies, hydraulic line routing, and actuator housings.
- Functional check intervals: Thermal switch and continuous-loop systems must be tested per the manufacturer's Aircraft Maintenance Manual (AMM) and the applicable Airworthiness Directives (ADs). Many systems require a continuity test and an integrity (pressure) test at each scheduled maintenance interval.
- Temperature ratings: Thermal switch actuation temperatures must match the approved values in the AMM. Overheat thresholds for wheel well systems are aircraft- and manufacturer-specific and are not standardized by the FAA; technicians must always verify the exact rated value against the applicable AMM and part number rather than relying on a general range.
- Loop integrity: Continuous-loop systems with a broken or leaking sensing element must be replaced before return to service; a compromised loop provides no detection along its damaged segment.
- False alarm investigation: Any activation of a wheel well fire or overheat warning requires a thorough inspection of brake assemblies, hydraulic lines, and wiring before the aircraft can be returned to service, regardless of whether physical evidence of fire is found.
Maintenance Considerations for AMTs
Wheel well fire detection maintenance demands close adherence to the AMM. When replacing thermal switches, technicians must verify part numbers carefully — temperature ratings are not always legible on the switch body itself. All wiring connections in the wheel well must be inspected for chafing against structural members and moving components, as the gear retraction cycle subjects wiring to repeated flexing. Continuous-loop sensing elements routed around brake assemblies are prone to chafing and heat damage; any discoloration, kinking, or abraded insulation requires replacement of the element and investigation of the root cause.
After any maintenance that involves disturbing fire detection wiring or sensors, a full system functional test is mandatory. This typically involves using a test switch on the fire detection control unit to simulate a sensor input and verifying that the correct cockpit warning lights and audio alerts activate. Some continuous-loop systems can be bench-tested using a heat gun applied to a short section of the sensing element, but this must only be done per the approved AMM procedure to avoid damage.
Common Test Traps
- Thermocouple vs. thermal switch confusion: Remember that thermocouples respond to rate of temperature rise, not absolute temperature — they will not alarm during slow, gradual heating. Thermal switches respond to a fixed threshold temperature regardless of how fast it is reached.
- No suppression in wheel wells: Many students assume wheel wells have fire bottles like engine nacelles. On most aircraft they do not — fire suppression in gear bays is uncommon, with detection-only being the norm, though technicians should verify the configuration for their specific aircraft.
- Dual-loop voting logic: A single faulty loop typically produces a fault or caution indication, not a full fire warning. Both loops must agree for the master fire warning to activate in most dual-loop designs.
- Wrong temperature-rated switches: Installing a thermal switch with a higher actuation temperature than specified means the warning activates later — or not at all — during an actual fire. Part number verification is critical.
- Loop integrity faults: A broken continuous-loop sensing element disables detection along the entire damaged segment, not just near the break. The aircraft is not airworthy with a compromised loop unless a specific MEL provision applies.
