Fuel injection systems represent a major advancement over carburetor-based fuel delivery by eliminating many of the icing and mixture-distribution problems that plague float-type carburetors. Rather than relying on venturi suction and a float chamber to meter fuel, injection systems use controlled pressure to deliver fuel directly to or near the intake valve of each cylinder individually. For the AMT Powerplant candidate, understanding exactly how these systems work — and how they differ from one another — is both an exam requirement and a foundational piece of knowledge for safe maintenance practice.
Two broad categories of fuel injection appear on certificated reciprocating aircraft engines: continuous-flow injection (sometimes called port injection or Bendix/RSA-style injection) and direct injection. Each approach achieves precise fuel metering by a different mechanical path, and each has its own maintenance implications. This article walks through the operating principles, key components, maintenance considerations, and the testable distinctions between the two.
Continuous-Flow Fuel Injection
The continuous-flow system is by far the most common type found on certificated general aviation piston aircraft. The system most students encounter is the Bendix/Continental RSA (airflow sensing) injector paired with individual fuel nozzles at each cylinder. Rather than injecting fuel in timed pulses, this system delivers a continuous, uninterrupted stream of fuel to the intake port of each cylinder throughout the entire engine cycle.
How the Fuel Control Unit Works
At the heart of a continuous-flow system is the fuel control unit (FCU), sometimes called the fuel injection servo. The FCU contains an airflow sensing section and a fuel metering section. Engine airflow passes through a venturi inside the FCU. The pressure differential created across that venturi — comparing impact air pressure at the inlet to venturi (suction) pressure at the throat — acts on opposite sides of an air diaphragm. This diaphragm positions a fuel metering valve so that fuel flow is proportional to actual airflow entering the engine. This is the key concept: the system meters fuel in response to sensed airflow, not throttle position alone, which is why mixture control is accurate across a wide range of altitudes and power settings.
The pilot-operated mixture control adjusts a separate valve within the FCU to lean or enrich the mixture for altitude and cruise efficiency. At idle-cutoff, this mixture valve is fully closed, shutting off all fuel flow and stopping the engine.
Fuel Distribution and Nozzles
After the FCU meters total fuel flow, the metered fuel travels to a flow divider (also called a distributor valve or spider). The flow divider has a spring-loaded diaphragm valve that opens only when fuel pressure is sufficient, ensuring all nozzles receive fuel simultaneously and preventing drips when the engine shuts down. From the flow divider, individual fuel lines carry fuel to each cylinder's fuel injection nozzle, which is threaded into the intake port or cylinder head.
Each nozzle is a calibrated orifice. The nozzle creates a back-pressure that helps equalize fuel distribution among cylinders and atomizes fuel into a fine mist at the intake valve. Because each cylinder gets its own metered supply line from the flow divider, cylinder-to-cylinder mixture distribution is far more even than in a carbureted engine, where fuel must travel through the intake manifold as a vapor/liquid mixture.
Priming and Starting
Continuous-flow systems require a primer or fuel boost pump to build sufficient pressure for starting, since the engine-driven fuel pump may not provide adequate pressure during cranking. Many installations use the electric boost pump on high-pressure setting to prime the system. Flooding is a real risk: excessive priming can wash cylinder walls and cause hydraulic lock if liquid fuel accumulates. The AMT must understand normal starting procedures and recognize symptoms of over-priming, including the raw fuel smell and hard starting associated with a flooded engine.
Direct Fuel Injection
Direct fuel injection — used extensively on high-performance and turbocharged aircraft engines, as well as virtually all modern automobile engines — injects fuel directly into the combustion chamber rather than into the intake port. Some aviation sources refer to timed port injection (injecting pulses into the intake port in synchrony with valve events) under the same broad heading, but true direct injection means the injector nozzle penetrates the cylinder head and sprays fuel into the combustion space itself.
Injection Timing and Control
Because fuel is injected on a timed basis — typically once per power stroke per cylinder — the control system must know crankshaft position. A fuel control computer or mechanical injection pump times and meters individual injector pulses. This allows precise control of the air-fuel ratio based on multiple inputs: throttle position, manifold pressure, engine speed, and (on electronically controlled systems) exhaust gas oxygen content from an oxygen sensor. The result is extremely accurate mixture control at all power settings.
Diesel-cycle aircraft engines, such as the Thielert/Continental diesel series and the Austro Engine, use high-pressure direct injection as a fundamental part of their compression-ignition design. Fuel is injected at very high pressure — often exceeding 1,000 psi — so that the spray pattern and droplet size promote rapid combustion when the charge temperature rises from compression alone. The AMT working on diesel aircraft powerplants must be familiar with the high-pressure fuel injection pump, injector service intervals, and the safety risks of high-pressure fuel spray.
Advantages Over Continuous-Flow
Direct injection offers several performance advantages. By injecting fuel directly into the cylinder, charge cooling occurs at the most beneficial moment — immediately before combustion — which can allow higher compression ratios without detonation. Because fuel is not introduced until it reaches the combustion chamber, the intake manifold and ports carry only air, which avoids the fuel-washing concerns present in port-injection systems. Additionally, timed direct injection allows the engine management system to vary injection timing for optimum combustion efficiency at different power levels.
Why the Distinction Matters for Maintenance
For the AMT Powerplant technician, understanding which type of system is installed determines almost every aspect of fuel system inspection, adjustment, and troubleshooting.
- Flow divider service: On continuous-flow systems, a sticking or contaminated flow divider valve is a common cause of uneven mixture distribution, rough idle, or hard starting. The flow divider must be inspected and cleaned at intervals specified in the manufacturer's maintenance manual.
- Nozzle cleaning: Continuous-flow nozzles can become partially blocked by varnish or contaminants, causing a lean mixture in affected cylinders and elevated exhaust gas temperatures (EGT) on EGT analyzers. Nozzle cleaning procedures are carefully specified — the orifice must never be drilled or reamed larger, as this changes the calibration and disrupts fuel distribution balance.
- Injector pop-off pressure: On direct-injection systems, each injector has a rated opening pressure. Checking injector spray pattern and pop-off pressure on a test bench is part of scheduled maintenance. A faulty injector pattern leads to incomplete atomization, poor combustion, and carbon deposits.

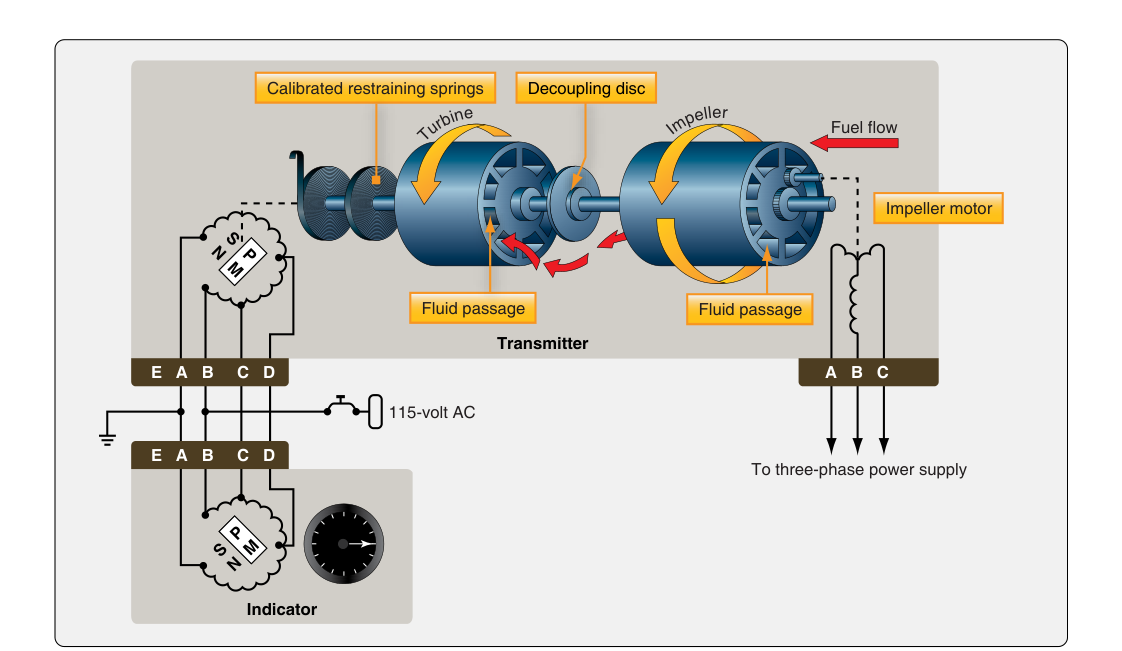

- Fuel pressure checks: Both system types require specific fuel pressure readings at idle and full power. On RSA-type continuous-flow systems, unmetered fuel pressure, metered fuel pressure, and fuel flow in gallons per hour are all checked and compared against the manufacturer's data plate values during rigging and adjustment.
- No carburetor heat — but icing risk is not zero: Continuous-flow injected engines are largely immune to the venturi ice that affects carburetors. However, impact ice at the air filter or alternate air door is still possible. Many injected engines use an alternate air source (often drawing warm, unfiltered air from inside the cowling) to prevent induction icing and to provide an alternate air path if the primary filtered inlet becomes blocked — the AMT must verify this door opens freely and seals properly.
Key Numbers and Rules
- Continuous-flow fuel injection nozzles are calibrated orifices and must never be drilled out; replace any nozzle that cannot be cleaned to specification.
- The flow divider check valve prevents fuel from draining back after shutdown, helping prevent vapor lock on restart in hot conditions.
- Fuel injection systems require an engine-driven fuel pump as the primary source and an electric boost pump as a backup — the specific phases of flight requiring boost pump use (such as takeoff, landing, and switching tanks) are defined by the aircraft flight manual for that make and model and vary by installation.
- Adjustments to the fuel control unit (FCU) must be performed in accordance with the applicable manufacturer's overhaul/maintenance manual and must be re-checked with a calibrated fuel flow meter — not estimated.
- On diesel direct-injection engines, injection pressures can exceed 1,000 psi; high-pressure fuel spray is a serious injury hazard and requires strict shop safety procedures.
- Per 14 CFR Part 43, any adjustment or repair of the fuel metering system is a maintenance task that must be performed by an appropriately certificated technician and properly documented in the aircraft maintenance records.
Common Test Traps
- Confusing the flow divider with the FCU: The flow divider distributes already-metered fuel to individual cylinders; the FCU is where actual metering occurs. These are separate components with distinct functions and failure modes.
- Assuming injected engines cannot ice: Injected engines eliminate venturi ice at the fuel system, but impact ice at the air inlet is still possible, especially in visible moisture at temperatures near freezing. The alternate air system addresses this.
- Enlarging nozzle orifices to fix a lean cylinder: This is never the correct fix. Enlarged orifices destroy calibration. The correct action is to clean the nozzle using approved methods or replace it.
- Assuming boost pump requirements are the same on every aircraft: Many students assume there is one universal rule. In fact, whether the boost pump must be ON for takeoff and landing, and under what conditions, is specified in each aircraft's AFM/POH and must be verified for the specific make and model rather than assumed.
- Mixing up continuous-flow and direct injection on diesel questions: Turbocharged diesel aircraft engines use high-pressure timed direct injection — not continuous-flow. Applying RSA-type troubleshooting to a diesel injector system is incorrect and potentially dangerous.
