Every pitot-static instrument in the cockpit — the altimeter, airspeed indicator, and vertical speed indicator — depends on an accurate sample of the ambient atmospheric pressure surrounding the aircraft. That sample arrives through a small opening in the fuselage skin called the static port. Under normal conditions, the port faces the airstream in a position carefully chosen by the manufacturer to minimize aerodynamic disturbance, delivering a pressure reading that closely approximates true atmospheric pressure at the aircraft's altitude. When that opening becomes blocked — by ice, dirt, insects, or even tape left on by a technician after maintenance — all three instruments are compromised simultaneously, which can create a dangerously misleading picture of the aircraft's state. The alternate static source is the system's designed backup, and understanding exactly how it works, and what errors it introduces, is essential knowledge for any airframe technician or pilot.
This article covers the construction, certification requirements, and operational characteristics of alternate static systems, including the specific instrument errors that result when the alternate source is selected. Airframe mechanics encounter this system during inspection, repair, and leak testing; pilots must understand it to make safe decisions in flight. The FAA Knowledge Test for both groups draws heavily on the predictable, testable errors the alternate source introduces.
How the Static System Works
The static system is a sealed network of tubing that connects the static port(s) on the outside of the aircraft to the instrument cases inside. The altimeter uses static pressure as its sole input. The airspeed indicator compares static pressure (in its outer case) against pitot (ram) pressure (fed to an internal diaphragm), and the difference drives the airspeed needle. The vertical speed indicator measures the rate of change of static pressure through a calibrated leak across a diaphragm. All three instruments are therefore equally affected whenever static pressure is inaccurate.
On most light aircraft the static port is a flush-mounted fitting on one or both sides of the fuselage, typically located aft of the cabin where local airflow is relatively undisturbed. Some aircraft use a combined pitot-static probe. Dual ports — one on each side — are often plumbed together so that pressure differences due to yaw or sideslip cancel out, improving accuracy. The tubing itself is typically aluminum or plastic, routed so that any condensation drains away from the instruments rather than collecting in instrument cases.
The Alternate Static Source

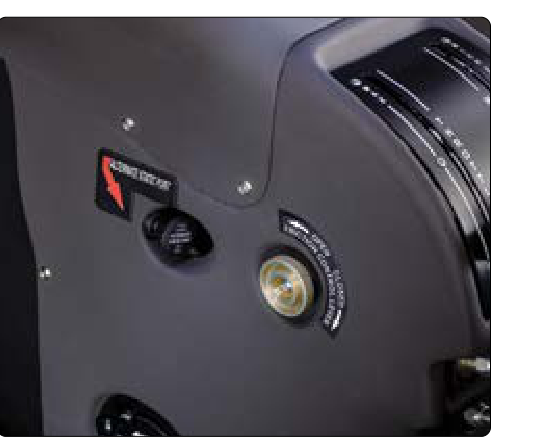

The alternate static source is a separate inlet, usually located inside the cockpit or cabin, that can be opened by the pilot (or during maintenance testing) to admit cabin air to the static system whenever the primary port is blocked. A simple valve or selector allows the flight crew to switch between the primary and alternate sources. On unpressurized aircraft, cabin air is the most common alternate source because it is readily available and requires no additional external penetrations.
The FAA requires that aircraft certificated under 14 CFR Part 23 (and many Part 25 aircraft) that are equipped with an alternate static source must placard the cockpit clearly, informing the crew of the errors that result when the alternate source is in use. The Airplane Flight Manual (AFM) or Pilot's Operating Handbook (POH) for each specific aircraft type must document the magnitude of those errors so that crews can apply corrections.
Why Cabin Air Pressure Differs from Outside Air
The key principle behind all alternate static source errors is straightforward: cabin pressure in an unpressurized aircraft is slightly lower than the true outside static pressure. This happens because the fuselage acts as a venturi. Airflow accelerating around and over the aircraft skin creates a slight low-pressure region that is communicated into the cabin through small gaps around doors, windows, and control cable openings. The result is that the cabin is not perfectly sealed and its internal pressure slightly underreads ambient pressure. The faster the aircraft flies, the more pronounced this effect becomes.
When the alternate source valve is opened and the static system is now sampling this slightly low cabin pressure instead of true ambient pressure, each instrument responds in a characteristic and predictable way.
Instrument Errors with Alternate Static Source Selected
Understanding the direction and magnitude of each instrument's error is the core of this topic, both for the knowledge test and for real-world decision making.
- Altimeter reads HIGH. Because cabin pressure is lower than true ambient pressure, the altimeter interprets the lower pressure as a higher altitude. The aircraft will appear to be higher than it actually is. In practice, this error is typically small — often less than 50 feet in a light aircraft at cruise — but it must be accounted for, especially during instrument approaches where even small altitude errors matter.
- Airspeed indicator reads HIGH. The pitot tube still provides true ram pressure. But the static reference, now drawn from the slightly lower cabin pressure, makes the differential across the airspeed diaphragm appear larger than it actually is. The instrument therefore indicates an airspeed greater than the actual indicated airspeed. As with the altimeter, the error grows with increasing airspeed because the venturi effect on cabin pressure is more pronounced at higher speeds.
- Vertical speed indicator shows a momentary transient, then stabilizes. When the alternate source valve is first opened, there will be a brief movement of the VSI needle because the system is equalizing to the new (slightly lower) pressure reference. Once equilibrated, the VSI will read zero in level flight, but its baseline reference is now the alternate source. Any subsequent climbs and descents will be displayed correctly relative to the new reference, though the overall accuracy depends on how stable the cabin pressure remains.
Why It Matters: Safety and Maintenance Implications
For pilots, the practical lesson is that selecting the alternate static source is always the correct action when the primary port is blocked and the aircraft is IMC or operating in instrument conditions — but the crew must immediately consult the AFM for correction values and mentally adjust their interpretation of altitude and airspeed. Flying an approach with an altimeter that reads 30–50 feet high means the aircraft is actually lower than indicated, which narrows the already slim margin above obstacles and terrain.
For airframe technicians, the alternate static system creates several important maintenance tasks. Leak testing of the entire static system — including the alternate source valve and its associated plumbing — is required by 14 CFR Part 91 for IFR operations. The static system must be tested for leaks to the standards in 14 CFR §91.411, which requires testing after any opening of the static system lines. The alternate static source valve must also be checked for proper operation: it should open and close smoothly, seat without leaking when closed, and be clearly labeled with its purpose and the associated instrument errors.
A blocked alternate source (due to a faulty valve that will not open) defeats the purpose of the backup system entirely. Conversely, a valve that leaks when it should be closed contaminates the primary static system with cabin air at all times, introducing errors even when the crew believes they are using the primary port. During pitot-static system inspections, technicians should verify both conditions: that the alternate source valve opens fully and that it seals completely when closed.
Some aircraft designs route the alternate static source through a check valve that automatically admits cabin air if the primary port pressure drops below a threshold (such as in severe icing). On these designs, the selection may be automatic, and the crew may not realize the system has switched — making preflight knowledge of the aircraft's specific system design even more critical.
Key Numbers and Rules
- 14 CFR §91.411 requires altimeter and static system tests within the preceding 24 calendar months for IFR flight, and after any opening of the static system.
- Under 14 CFR Part 43 Appendix E, the static pressure system test must demonstrate that the system does not leak more than the equivalent of 100 feet of altitude loss in one minute at a test altitude equivalent to the aircraft's maximum operating altitude (not 1,000 feet above airport elevation).
- Alternate static source errors: altimeter reads HIGH, airspeed reads HIGH, VSI shows a momentary transient then returns near zero.
- Correction values are aircraft-specific and must be published in the AFM/POH; they are not standardized across aircraft types.
- All static system work must be performed or supervised by an appropriately rated technician, and the system must be re-tested for leaks after any line is opened or repaired.
- Cockpit placarding of alternate static source errors is required for aircraft where the alternate source is provided.
Common Test Traps
- Confusing the direction of the error. Students frequently reverse the altimeter error, believing the altimeter reads LOW when cabin pressure is used. Remember: lower pressure = higher indicated altitude. The altimeter is fooled into thinking it is higher up than it really is.
- Forgetting the airspeed also reads high. Test questions sometimes focus only on the altimeter, but the airspeed indicator is equally affected. Both read higher than actual when the alternate source is selected on an unpressurized aircraft.
- Assuming the VSI is useless. The VSI recovers quickly after the transient caused by switching, and it continues to correctly show rate of climb or descent relative to the new reference. It is not permanently unreliable — it simply takes a moment to stabilize.
- Mixing up pressurized and unpressurized aircraft behavior. On a pressurized aircraft, cabin pressure is maintained above ambient at altitude, which would reverse the errors. Most knowledge test questions assume an unpressurized light aircraft unless stated otherwise.
- Overlooking the 24-calendar-month inspection requirement. A common distractor is the option of 12 calendar months or annual inspection intervals. The pitot-static/altimeter test is specifically 24 calendar months for IFR operations, distinct from the annual airworthiness inspection cycle.
