Water contamination in aviation fuel is one of the most insidious threats to safe flight. Unlike the large puddles of water that can be sumped out of a fuel tank during preflight, dissolved or entrained water can remain invisible right up until it freezes — and when it does, the results can be catastrophic. Ice crystals and slush can block fuel filters, clog fuel lines, and starve an engine of fuel at exactly the worst moment. Two complementary engineering solutions exist to combat this hazard: chemical anti-icing additives blended into the fuel, and mechanical fuel heater systems installed in the aircraft. Every aviation maintenance technician (AMT) working on airframe fuel systems must understand both approaches, how they interact, and the regulatory and practical constraints governing them.
This article focuses primarily on turbine-powered aircraft, where the problem is most acute, but the principles apply broadly to any aircraft operating in cold or high-humidity environments.
How Water Gets Into Fuel — and Why It Freezes
Water enters aviation fuel through several pathways. Atmospheric moisture condenses on the cooler inner walls of partially filled fuel tanks, particularly during temperature cycling between warm days and cold nights. Water can also be introduced during fueling operations from contaminated ground equipment or storage tanks. Jet fuels — kerosene-based Jet-A and Jet-A1 — are particularly susceptible because they absorb and hold a small quantity of water in solution at elevated temperatures. As fuel temperature drops (especially at cruise altitudes where outside air temperature can fall well below -40 °C), water that was dissolved in the fuel comes out of solution and forms microscopic droplets. These droplets then agglomerate and freeze, forming ice crystals that migrate through the fuel system toward the engine.
Even a small ice accumulation on a fuel filter or fuel control inlet screen can cause a significant pressure drop across that component, triggering a fuel flow restriction. If the ice blockage is severe enough, it can cause engine power loss or flameout. This is not a theoretical concern — fuel icing events have contributed to several serious accidents in aviation history.
Anti-Icing Additives: How They Work

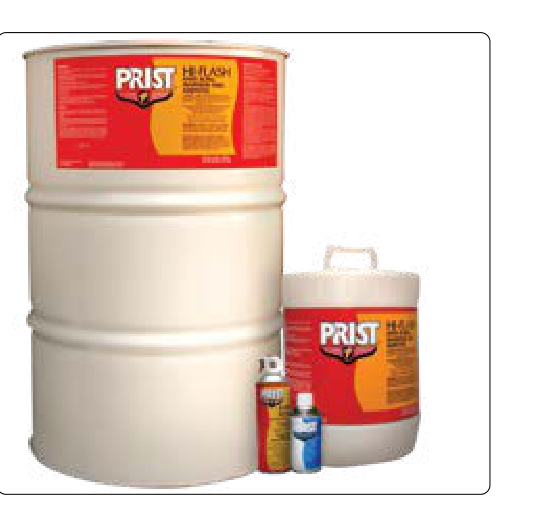

Chemical anti-icing additives work by attacking the problem at the molecular level. The most widely used additive type is a diethylene glycol monomethyl ether (DiEGME) compound. DiEGME functions by mixing with any free water present in the fuel and lowering the freezing point of the water-additive mixture well below the temperatures normally encountered in flight. Instead of forming hard ice crystals that can block filters, the water remains as a liquid slush or flows harmlessly through the fuel system and is eventually combusted in the engine.
DiEGME-based additives must be used at carefully controlled concentrations. The commonly referenced concentration range per MIL-DTL-85470 and related fuel handbook guidance is typically 0.10% to 0.15% by volume (commonly expressed as 1,000 to 1,500 parts per million), though some industry references cite minimum required concentrations as low as 0.07%–0.10% depending on the specific fuel and additive formulation — the AMT must always verify the applicable minimum and maximum against the AMM and the governing specification rather than assuming a single universal figure. Using too little additive provides inadequate freeze-point depression; using too much can cause rubber seal degradation, reduced lubricity, and other adverse effects on fuel system components, including fuel control units. Overage can also cause the additive to separate out of solution and collect at the bottom of the tank as a concentrated layer.
The most commonly referenced specification for anti-icing additives used in commercial turbine fuels is MIL-DTL-85470 (formerly MIL-I-27686). Fuel meeting ASTM D1655 (Jet-A specification) may be supplied with or without this additive already blended in at the refinery. Some military fuels, such as JP-8, have anti-icing additives included as a standard part of the fuel specification. Before adding any anti-icing additive to an aircraft's fuel system on the ramp, the AMT must verify that the aircraft's Aircraft Flight Manual (AFM) or the aircraft maintenance manual (AMM) explicitly approves the use of a specific additive, and that the fuel supplier's product meets the referenced specification. Never assume compatibility without documentation.
Fuel Heater Systems: Mechanical De-Icing
While additives address dissolved and entrained water chemically, fuel heater systems address ice mechanically — by keeping the fuel warm enough that ice cannot form in the first place, or by melting ice that has already formed before it reaches critical components.
The most common type of aircraft fuel heater uses engine bleed air or hot oil as a heat source routed through a heat exchanger in the fuel system. In a bleed-air fuel heater, hot compressed air bled from an engine compressor stage passes through one side of the heat exchanger while fuel flows through the other side. The two media never directly mix; heat transfers through the exchanger walls, warming the fuel. In an oil-to-fuel heat exchanger (common on many turboprop and turbofan engines), hot engine oil serves the same purpose — warming the fuel while simultaneously being cooled itself, which provides a useful double benefit for the engine oil cooling system.
Fuel heaters are typically installed upstream of the main fuel filter or fuel-oil heat exchanger so that any ice in the fuel is melted before it can accumulate on filter elements. Some designs install the heater downstream of the boost pump but upstream of the engine-driven fuel pump, protecting the entire downstream fuel control system.
Automatic vs. Manual Control
Fuel heater systems may be controlled automatically or manually, depending on aircraft design. Automatic systems use a temperature sensor in the fuel flow path; when fuel temperature approaches a preset threshold (often around 0 °C to +4 °C), the system opens a bleed-air or oil-flow valve to supply heat. Manual systems require the pilot or flight engineer to activate the fuel heat switch based on outside air temperature, altitude, or observed fuel temperature indications. Some transport-category aircraft use a combination: automatic activation with manual override capability.
AMTs must be attentive to the condition of heat exchanger seals and core integrity during maintenance. A leak in an oil-to-fuel heat exchanger that allows oil to contaminate fuel — or vice versa — can cause serious downstream problems including contaminated fuel reaching the combustor and degraded oil system performance.
Why These Systems Matter: Safety and Regulatory Context
The FAA requires that turbine-powered aircraft be designed and maintained so that fuel icing cannot cause a hazardous condition. This obligation flows from 14 CFR Part 25 (airworthiness standards for transport category airplanes) and 14 CFR Part 23 (for smaller certified aircraft). Specifically, these regulations require that the fuel system supply fuel at a flow rate and condition sufficient to meet engine demands under all normally anticipated operating conditions, including temperature extremes.
From an airframe maintenance standpoint, AMTs performing fuel system inspections must check anti-icing additive injection systems (if installed) for proper operation, correct additive levels, and injector nozzle condition. They must also perform required inspections on fuel heater systems, including operational tests of automatic controls, verification of heat exchanger integrity, and review of any service difficulty reports associated with the specific model. The AMM is the primary reference for inspection intervals, serviceable limits, and approved materials.
Key Numbers and Rules
- DiEGME additive concentration: Commonly referenced range is 0.10%–0.15% by volume (approximately 1,000–1,500 ppm) per MIL-DTL-85470, though some fuel/additive combinations specify different minimums (as low as 0.07%–0.10%); always verify against the specific AMM and additive specification.
- Applicable additive specification: MIL-DTL-85470 is the standard military and commercial reference for DiEGME-based anti-icing additives.
- Fuel heater activation threshold: Many systems are designed to activate automatically when fuel temperature reaches approximately 0 °C to +4 °C, though this varies by aircraft type — always consult the AFM/AMM.
- Heat exchanger types: Bleed-air-to-fuel and oil-to-fuel are the two primary designs; oil-to-fuel provides dual benefit by cooling engine oil simultaneously.
- Regulatory basis: 14 CFR Parts 23 and 25 govern fuel system design for certified aircraft; maintenance requirements are established in the manufacturer's AMM per FAA-approved data.
- Additive compatibility: Anti-icing additives must be approved in the AFM/AFM supplement and must not exceed maximum concentration limits to avoid seal degradation and fuel system damage.
- Fuel filter monitoring: A rising differential pressure across the fuel filter during flight in icing conditions may indicate ice accumulation — a key operational warning sign.
Common Test Traps
- Confusing additive types: DiEGME is the standard anti-icing additive for turbine fuels. Do not confuse it with fuel system icing inhibitor (FSII) as a generic term, or with biocides (which combat microbial growth, not ice) — each additive serves a distinct purpose.
- Assuming pre-blended fuel always contains anti-icing additive: Jet-A may or may not contain DiEGME from the refinery. JP-8 typically does. Always check fueling documentation and the AMM before assuming protection is already present.
- Ignoring concentration limits: Exam questions may present scenarios where adding more additive seems like extra protection. More is not better — exceeding the maximum concentration can cause elastomer seal degradation and other damage.
- Overlooking heat exchanger failure modes: An oil-to-fuel heat exchanger with a ruptured core can contaminate fuel with engine oil. AMTs must know how to detect this (discolored fuel, oil loss without visible external leak) and the consequences.
- Misidentifying heater location: Fuel heaters are positioned upstream of critical filter and metering components to melt ice before it blocks those devices — not downstream. Getting the flow sequence wrong is a common mistake on written exams.
Mastering the interplay between chemical additives and mechanical heating systems gives the AMT a complete picture of fuel icing prevention. Both methods are complementary — additives handle dissolved water that heaters cannot easily address, while heaters can quickly restore flow through a partially iced system even when additives were not present or were insufficient. A thorough understanding of both systems, their specifications, and their maintenance requirements is essential for safe turbine aircraft operation and for success on the AMT Airframe knowledge test.
