Modern aircraft increasingly rely on composite materials — carbon fiber reinforced polymer (CFRP), fiberglass, and aramid fiber laminates — for their exceptional strength-to-weight ratios. However, these materials present a fundamental challenge that their aluminum predecessors did not: they are poor electrical conductors. When lightning strikes an aluminum airframe, the electrical charge flows quickly across the metal skin, dissipates without concentrating in any one area, and causes relatively predictable, repairable damage. A composite airframe, by contrast, can focus enormous energy at the strike attachment point, potentially burning through laminate layers, delaminating large sections, igniting fuel vapors, or disrupting bonded metal fasteners and control system components. Understanding lightning strike protection (LSP) in composite structures is essential knowledge for every aviation maintenance technician working on modern airframes.
Lightning is not a rare event in aviation. Industry data (e.g., Boeing) commonly cites that each commercial transport aircraft is struck by lightning roughly once or twice per year on average, though this figure is not drawn from the FAA sources cited for this article. The FAA certification standards in 14 CFR Part 25 require that aircraft demonstrate protection against both direct effects (physical damage at strike and arc attachment points) and indirect effects (electromagnetic interference to avionics and wiring). For AMT candidates, the focus is on how the protection systems are designed, what they look like during inspection, and how to assess and repair damage correctly.
How Lightning Strike Protection Works in Composites

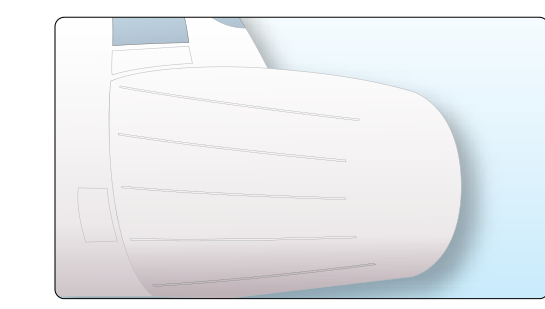

The core strategy of any LSP system is to give lightning a deliberate, low-resistance conductive path across the aircraft surface so that energy is spread out and controlled rather than concentrated. In a metal airplane, the skin itself provides this path. In a composite airplane, engineers embed or bond supplemental conductive elements into or onto the structure to replicate this function.
Expanded Copper or Aluminum Foil Mesh
The most common LSP method in composite panels is an expanded metal mesh — typically copper or aluminum — bonded as the outermost ply of the laminate stack during manufacturing. The mesh is precisely engineered: it must be conductive enough to carry tens of thousands of amperes without burning open, yet light enough to preserve the weight advantage of the composite structure. Copper mesh is heavier but offers superior conductivity; aluminum mesh is lighter and is sometimes used on less strike-prone surfaces. The mesh is co-cured or secondarily bonded into the part and then covered with a thin film of paint or surfacer. On finished aircraft, this mesh is invisible to the eye but its presence can sometimes be detected as a subtle texture under paint.
Conductive Coatings and Interlayers
Some manufacturers apply conductive coatings — metallic flame-sprayed layers, conductive primers, or carbon-loaded surface films — as the primary or supplemental LSP layer. These coatings are effective for dissipating charge but are more vulnerable to wear and impact damage than embedded mesh. Interlayer approaches place conductive materials between plies rather than on the outermost surface, which improves protection of the conductive element itself but requires more sophisticated design to ensure the outermost surface can still safely arc without catastrophic burning.
Carbon Fiber Considerations
It is important to understand that carbon fiber itself is electrically conductive — far more so than fiberglass or aramid. A pure CFRP laminate does conduct electricity, which sounds helpful, but the conductivity is anisotropic: it is much higher along the fiber direction than through the thickness of the laminate. Lightning current flowing through the thickness of a CFRP panel can cause resistive heating that vaporizes resin, explosively delaminating plies. Even though CFRP assists current flow along the surface, additional LSP (mesh or coating) is still required on most CFRP structures to handle the full lightning threat environment defined in FAA Advisory Circulars and SAE standards that underpin FAA certification.
Bonding, Grounding, and Fastener Considerations
In a metal airframe, fasteners are automatically bonded to the surrounding structure. In a composite airframe, each conductive element must be deliberately electrically connected to its neighbor. Bonding jumpers — small braided metal straps — bridge composite panels at their edges and attachment points to ensure current can flow from one section to the next without arcing across gaps. Metal fasteners used through composite panels present a particular hazard: if a high-resistance joint exists at the fastener, the lightning current will arc violently across it, potentially igniting fuel vapors if the fastener is near a fuel tank boundary. Aircraft manufacturers address this with sealant-filled fastener holes, conductive fay surface sealants, and in some cases special fastener cap designs that prevent arcing in fuel-critical zones.
Why Lightning Strike Protection Matters
The consequences of inadequate LSP fall into three categories, each of which can be catastrophic. First, structural damage: even a single lightning strike can burn through several plies of laminate, delaminate large areas due to the pressure wave of resistively vaporized resin, and compromise the load-carrying integrity of a primary structure. Second, fuel system ignition: fuel tanks in composite wings must be protected so that no arc or spark can occur inside or immediately adjacent to the tank. This is not theoretical — it is one of the most carefully scrutinized areas of composite aircraft certification. Third, electromagnetic effects on avionics: the rapidly changing magnetic field of a lightning channel induces voltage spikes in wiring harnesses that can damage or destroy avionics, flight control computers, and other critical electronics even if no physical arc touches the wiring.
Key Numbers and Rules
- Lightning zones: FAA-accepted industry standards (SAE ARP5414) divide airframe surfaces into zones based on probability of direct strike attachment, swept stroke, and low-probability areas. Zone 1 surfaces (nose, wing tips, horizontal stabilizer tips) face the highest threat and require the most robust LSP.
- Peak current: Design LSP systems must handle peak currents that can reach 200,000 amperes (200 kA) in the most severe waveform components defined in certification standards such as SAE ARP5412 and FAA AC 20-136B, though the action integral (energy content) is equally important.
- 14 CFR Part 25.581: Requires transport category aircraft to be protected against catastrophic effects of lightning; similar performance-based requirements exist in Part 23 for smaller aircraft following the 2017 rule rewrite (Amendment 23-64), which reference consensus standards rather than prescriptive design rules.
- Inspection intervals: LSP mesh and bonding continuity checks are specified in the aircraft's Airworthiness Limitations or Maintenance Manual. Bonding jumper resistance limits vary by manufacturer and application — commonly specified in the low milliohm range but not a single universal FAA value — so always verify the aircraft maintenance manual or SRM for the specific limit.
- Paint thickness matters: Overly thick paint over LSP mesh can increase resistance and reduce the mesh's ability to conduct charge. Many manufacturers specify maximum paint film thickness over LSP surfaces.
- Post-strike inspection: Any known or suspected lightning strike requires an inspection per the Aircraft Maintenance Manual (AMM) before return to service. This typically includes visual inspection, tap testing, and often eddy current or ultrasonic NDT of high-threat zones.
Post-Strike Inspection and Repair
When an aircraft returns with a reported or suspected lightning strike, the AMT's first task is to locate all strike attachment points. Entry and exit points often appear as small burned or pitted areas, sometimes accompanied by paint erosion or a circular scorch mark. On a composite surface, the burn may extend through the mesh and into the laminate plies beneath. Using the aircraft's AMM lightning strike inspection procedure, the technician surveys all lightning zones systematically, not just the obvious damaged area — current can travel across the surface and re-attach at unexpected locations, particularly at protruding metal components like antenna bases or fastener heads.
Damage assessment typically combines visual inspection, tap testing (listening for dull or hollow sounds indicating delamination beneath the surface), and non-destructive testing such as ultrasonic through-transmission or pulse-echo scanning. Any delamination, burned laminate, or damaged mesh must be repaired in accordance with the Structural Repair Manual (SRM). Composite lightning strike repairs are not simple fill-and-paint jobs: the repair must restore both structural integrity and electrical continuity of the LSP layer. Replacement mesh or conductive patch material must overlap the original mesh by the manufacturer-specified distance, and the repair ply schedule must match the original laminate. Bonding resistance must be verified after repair using calibrated milliohm meters.
Common Test Traps
- Assuming carbon fiber needs no additional LSP: CFRP is conductive along fibers but highly resistive through the laminate thickness; without mesh or coating, it will suffer severe internal delamination from through-thickness resistive heating during a strike.
- Confusing structural repair with LSP restoration: Restoring plies and restoring electrical continuity are two separate — and both mandatory — aspects of a composite lightning strike repair. A structurally sound repair that lacks proper mesh overlap fails to meet airworthiness requirements.
- Ignoring paint thickness limits: Applying excess filler or paint over LSP surfaces is a common maintenance error that can impair mesh conductivity; always check the AMM for maximum allowable film thickness.
- Overlooking fastener sealant requirements: In fuel-adjacent composite structure, fastener hole sealant is part of the lightning protection system, not merely a corrosion-control measure. Omitting or improperly applying sealant in these areas is an airworthiness issue.
- Treating a suspected strike as routine: A lightning strike inspection is required before return to service; assuming that because no visible damage is found on the exterior surface the aircraft is unaffected ignores the possibility of subsurface delamination detectable only by NDT.
