What are RNAV routes and T-Routes used for in IFR flight?

RNAV routes are GPS-based airways depicted on IFR enroute charts that allow pilots to navigate precise, direct paths without relying solely on ground-based VOR stations. T-Routes are a specific type of RNAV route designed for lower altitudes, generally from 1,200 feet AGL up to but not including 18,000 feet MSL, expanding routing options in areas not well served by traditional Victor airways. They are identified by a 'T' prefix followed by a route number and require the aircraft to be equipped with an approved RNAV system, typically GPS, to use them.

What equipment is required to fly T-Routes for IFR enroute navigation?

To fly T-Routes, a pilot must have an approved RNAV system, which is typically a GPS or GPS/WAAS receiver that meets the requirements outlined in AC 90-100A and is authorized for IFR enroute operations. The aircraft avionics must be able to navigate the route with the required accuracy, and the pilot must ensure the database contains the current, valid waypoints defining the T-Route. Per the AIM, pilots should also verify RAIM availability or WAAS signal integrity prior to departure when relying on GPS for IFR navigation.

What's the difference between RNAV routes and traditional VOR-based Victor airways for IFR flying?

Traditional Victor airways are defined by VOR radials and require ground-based navigation infrastructure, limiting routing to areas where VOR coverage is adequate. RNAV routes, including T-Routes, are defined by GPS waypoints and do not depend on VOR ground stations, allowing for more direct and flexible routing, particularly in mountainous or remote areas where VOR coverage may be limited. According to the PHAK, RNAV systems compute a flight path using satellite or other sensor data, offering greater accuracy and efficiency compared to conventional ground-based airways.

RNAV Routes and T-Routes for IFR Enroute Navigation

Area Navigation, commonly abbreviated RNAV, has fundamentally changed how pilots plan and fly IFR enroute routes in the United States. Where traditional airways like Victor routes require aircraft to track directly to and from ground-based VOR stations, RNAV routes allow navigation along precisely defined paths anchored to waypoints that exist only as coordinates — no ground station required. For instrument-rated pilots, understanding RNAV routes and their lower-altitude cousins, the T-Routes, is essential for both the FAA Instrument Rating knowledge test and real-world IFR flying.

This article covers the structure of RNAV enroute routes, the specific characteristics of T-Routes, equipment and database requirements, minimum altitudes, and how these routes are depicted and used in practice.

What Are RNAV Routes?

RNAV routes are published IFR airways that rely entirely on area navigation — specifically GPS or GPS/WAAS — rather than ground-based navaids. Each route is defined by a series of named waypoints (five-letter identifiers like HIINE or SUMBE), each expressed as a precise latitude/longitude coordinate. The aircraft's flight management system or GPS navigator computes a course directly between those waypoints, allowing the route to be drawn across areas where placing a VOR would be impractical or unnecessary.

In the United States, the FAA publishes two major families of RNAV airways in the low-altitude enroute structure:

Q-Routes — RNAV routes in the high-altitude enroute structure, used at or above FL180 (18,000 feet MSL). Q-Routes appear on enroute high-altitude charts with identifiers such as Q-13 or Q-105.
T-Routes — RNAV routes in the low-altitude enroute structure, designed for use below 18,000 feet MSL. T-Routes appear on low-altitude enroute charts with identifiers such as T-267 or T-290.

Both route families are maintained in the FAA's aeronautical database and charted on IFR enroute charts published by the FAA. The critical point is that these routes are only usable by aircraft equipped with and approved for RNAV operations — you cannot fly a T-Route using only a VOR receiver.

T-Routes: Structure and Purpose

T-Routes were specifically created to provide more routing options in the low-altitude IFR enroute environment. Before T-Routes, pilots flying below 18,000 feet were limited primarily to Victor airways, which are defined by VOR radials and therefore follow a web-like network tied to wherever VOR stations happen to be located. This meant routing was sometimes indirect, and in remote areas with sparse VOR coverage, airways were simply absent.

T-Routes fill those gaps. They are charted on the IFR Enroute Low Altitude charts and appear as blue-colored airways identified by the letter T followed by a number. Like Victor airways, T-Routes have a specific Minimum Enroute Altitude (MEA) published for each segment. The MEA guarantees both obstacle clearance and, on traditional airways, navigation signal reception — on T-Routes, the signal reception guarantee applies to GPS rather than VOR.

A key structural feature of T-Routes is that they are designed for GPS-equipped aircraft. The route segments are defined solely by GPS waypoints; there are no VOR radials involved. Because GPS coverage is essentially uniform across the contiguous United States, T-Routes can be placed in areas where Victor airways do not exist, offering more direct routings for properly equipped aircraft.

Altitudes and Airspace

T-Routes exist in the low-altitude enroute structure, meaning they are used at altitudes below 18,000 feet MSL. Each segment of a T-Route has a published MEA. Some T-Route segments may also have a Maximum Authorized Altitude (MAA), above which the route is not authorized. Like Victor airways, T-Routes may pass through or near Class B, Class C, or Class D airspace, and pilots must coordinate accordingly through ATC when flying IFR. In most cases, flying a T-Route IFR under an ATC clearance places you in controlled airspace with full separation services.

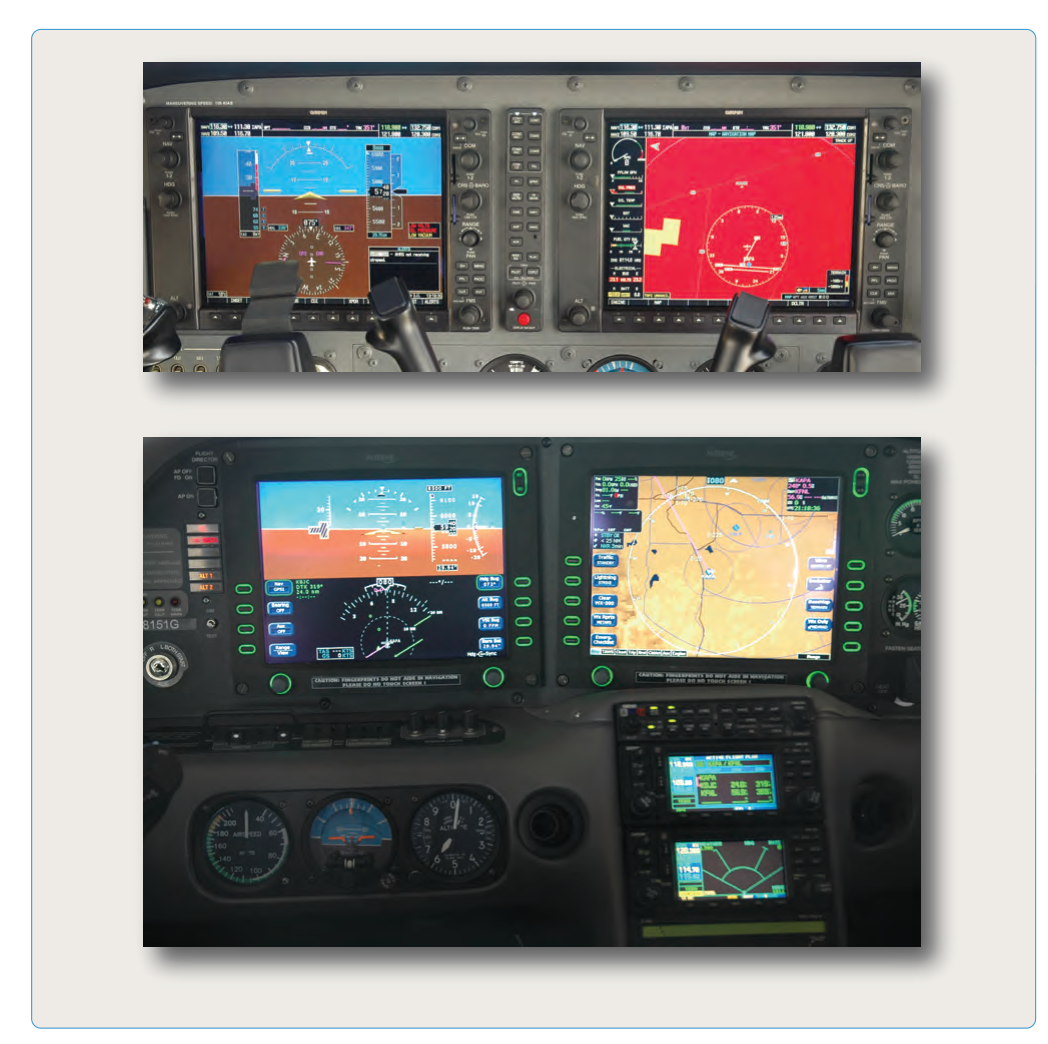

Equipment Requirements for RNAV Routes

To fly T-Routes or Q-Routes, a pilot must be in an aircraft equipped with an IFR-approved RNAV system. In practice, this means:

A TSO-C129 GPS receiver (stand-alone GPS approved for IFR enroute use), or
A TSO-C145/C146 WAAS GPS navigator (GPS with Wide Area Augmentation System, which provides higher accuracy and integrity monitoring), or
A flight management system (FMS) that meets the appropriate RNAV performance standard.

The aircraft's GPS database must be current — the 28-day AIRAC cycle applies. An out-of-date database may not contain the correct waypoint coordinates for the T-Route you want to fly, and flying with an expired database is generally not authorized for IFR operations unless the pilot verifies all waypoints are unchanged, which is rarely practical.

The FAA also requires that RNAV navigation be authorized in the aircraft's Approved Flight Manual (AFM) or AFM Supplement. Simply having a GPS in the panel is not sufficient if the aircraft's operating limitations do not authorize IFR RNAV use. Always verify your aircraft documents before planning RNAV routes.

How T-Routes Are Depicted on Charts

On the FAA IFR Enroute Low Altitude charts, T-Routes are depicted in blue, which distinguishes them from the magenta Victor airways. Each T-Route segment shows the MEA, the route identifier, and the magnetic course between waypoints. The named waypoints (intersections) along the route are shown as five-letter identifiers at their depicted positions.

When planning an IFR flight, a pilot can include T-Routes in the flight plan just like Victor airways — by listing the route identifier and the entry and exit waypoints. For example, a routing might read: KORD DCT HIINE T290 SUMBE DCT KMDW, meaning fly direct to waypoint HIINE, then T-Route 290 to SUMBE, then direct to the destination. ATC must approve this routing as part of your clearance.

Why RNAV Routes Matter for IFR Pilots

RNAV routes represent the future — and increasingly the present — of IFR enroute navigation. There are several reasons every instrument pilot should understand them thoroughly:

Efficiency: RNAV routes often provide more direct paths than VOR-defined airways. Shorter routes mean less fuel burn, lower costs, and reduced exposure to weather.
Coverage: T-Routes provide structured IFR routing in regions where Victor airway coverage is sparse, such as mountainous or remote areas of the western United States.
ATC Preferred Routes: Many FAA Preferred IFR Routes (published in the Chart Supplement) now include T-Routes and Q-Routes. Knowing how to use them is essential for flying into busy terminal areas with correct routing.
NextGen: The FAA's NextGen modernization program relies heavily on RNAV and its performance-based navigation (PBN) successor. Familiarity with RNAV routes is the foundation for understanding RNP routes, RNAV SIDs, and RNAV STARs.

Key Numbers and Rules

T-Routes are used at altitudes below 18,000 feet MSL (low-altitude structure).
Q-Routes are used at or above FL180 (high-altitude structure).
T-Routes are identified by the letter T followed by a number (e.g., T-267).
Q-Routes are identified by the letter Q followed by a number (e.g., Q-13).
Both route types require an IFR-approved GPS (TSO-C129, TSO-C145, or TSO-C146).
GPS database must be current (28-day AIRAC cycle).
Each segment has a published MEA that guarantees obstacle clearance.
T-Routes are depicted in blue on IFR Enroute Low Altitude charts.
RNAV route authorization must appear in the aircraft AFM or AFM Supplement.

Common Test Traps

Confusing T-Routes and Q-Routes by altitude: T-Routes are low-altitude (below FL180); Q-Routes are high-altitude (at or above FL180). The FAA knowledge test frequently tests this distinction directly.
Assuming a VOR can be used on T-Routes: T-Routes are GPS-ONLY routes. A VOR receiver provides no guidance along a T-Route. A pilot must have an IFR-approved GPS to use them.
Forgetting the database currency requirement: An expired GPS database is a real regulatory issue for IFR. The test may present scenarios where you must identify whether the equipment is legal for the flight.
Thinking any GPS works: The GPS must meet TSO-C129 or TSO-C145/C146 standards AND the IFR RNAV use must be authorized in the aircraft's AFM. A portable GPS unit is never legal for IFR RNAV routes regardless of its accuracy.
Misreading chart colors: On IFR Enroute Low Altitude charts, T-Routes appear in blue while Victor airways appear in blue as well but are clearly labeled with a V identifier. The T prefix is the definitive identifier. Don't confuse T-Route waypoints with terminal area fixes or approach waypoints, which appear on different chart types.
