Weight and Balance Shift Effects on Aircraft Stability and Performance

How shifting weight affects CG location—and why CG position critically changes stability, control authority, and overall aircraft performance for commercial pilot applicants.

Reviewed & updated · Grounded in current FAA handbooks & the ACS

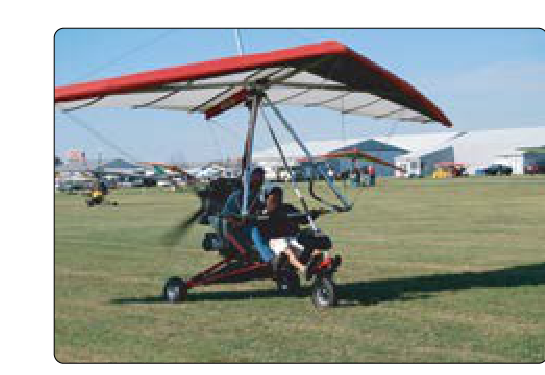

Weight and balance for a weight-shift control aircraft.
Image: FAA Aviation Maintenance Technician Handbook - General (FAA-H-8083-30), Figure 6-51 — public domain

Every pilot learns that an aircraft must not exceed its maximum gross weight, but the location of that weight—the center of gravity (CG)—is equally critical and arguably more nuanced. For the commercial pilot, understanding how weight shifts alter aircraft stability and performance is not an academic exercise; it is a core airworthiness responsibility that affects every phase of flight, from the takeoff roll to the landing flare. The FAA Weight and Balance Handbook (FAA-H-8083-1) and the Pilot's Handbook of Aeronautical Knowledge (FAA-H-8083-25, Chapter 10) treat CG as a fundamental airworthiness parameter, not merely a number to record on a form.

What the Center of Gravity Actually Is

The CG is the single theoretical point through which the entire weight of the aircraft acts vertically downward. It is the balance point in three dimensions—longitudinal (fore-and-aft), lateral (side-to-side), and vertical. For fixed-wing aircraft the longitudinal CG is by far the most operationally significant, because it directly governs the pitching equilibrium about the lateral axis. The aircraft manufacturer establishes a CG envelope—a forward limit and an aft limit, each expressed as a distance in inches from a fixed reference called the datum—and the aircraft is certified only when loaded so that the CG falls within that envelope at all weights.

The horizontal tail (or, in canard designs, the forward surface) provides the balancing moment that keeps the aircraft in equilibrium. Because the tail acts at a long moment arm from the CG, even small changes in CG location require meaningful changes in tail load. That ripple effect touches stall speed, control forces, fuel burn, and spin recovery—all topics the commercial pilot knowledge test probes in depth.

Forward CG: Heavier Nose, Higher Stakes

When passengers deplane, freight is offloaded from a rear compartment, or fuel burns from aft tanks first, the CG migrates forward. The nose-heavy tendency grows, and the horizontal stabilizer must produce a greater downward (negative-lift) tail force to restore equilibrium. Because the wings must now support the aircraft's weight plus the added tail-down load, the total lift requirement increases even though the actual weight hasn't changed.

Performance Consequences of a Forward CG

  • Higher stall speed. The wing reaches its critical angle of attack at a higher indicated airspeed because it must generate more total lift. FAA-H-8083-25 notes that stall speed increases as CG moves forward. A pilot relying on a stall speed computed at a mid-CG may be surprised by an early buffet or break.
  • Increased induced drag and higher fuel burn. Greater lift production at any given speed means more induced drag. On a long cross-country this translates directly into reduced range and endurance—a tangible economic and safety concern for commercial operations.
  • Stronger longitudinal stability. A forward CG positions the aircraft's center of lift well aft of the CG, increasing the restoring pitching moment after any disturbance. The airplane wants to pitch nose-down and return to trimmed flight. This is generally the safer condition, but it demands higher control forces and a higher approach speed to achieve an adequate flare attitude.
  • Reduced elevator authority. In the most extreme forward CG cases, there may be insufficient elevator travel to raise the nose for the landing flare, resulting in a flat, hard touchdown or even a nose-wheel-first impact. This is the most operationally dangerous consequence of an excessively forward CG, and it establishes why the forward limit is not merely a comfort boundary.

Aft CG: Lighter Controls, Heavier Risk

Loading passengers in rear seats, placing dense cargo in aft baggage compartments, or burning fuel from forward tanks first all shift the CG rearward. The tail is required to produce less downward force—or may even produce upward lift—to balance a nose-up tendency. While the aircraft may feel responsive and light on the controls, the stability picture deteriorates rapidly as the CG approaches and then exceeds the aft limit.

Performance Consequences of an Aft CG

  • Lower stall speed. Because the tail contributes less negative lift, the wings carry a reduced total load at any given weight, and the critical angle of attack is reached at a slightly lower airspeed. This can create a dangerously false sense of improved performance—the pilot may believe the aircraft is performing better when in fact it is approaching an unstable regime.
  • Reduced longitudinal stability. As the CG moves aft toward the neutral point (the CG location at which the aircraft has zero pitch-restoring tendency), any pitch disturbance produces less and less of a correcting moment. Beyond the neutral point the aircraft is statically unstable—a disturbance amplifies rather than damps. FAA-H-8083-25 emphasizes that an aft CG can render recovery from an inadvertent stall extremely difficult or impossible.
  • Flat spin susceptibility. An aft CG shifts mass distribution rearward, increasing the aircraft's resistance to nose-down rotation during spin recovery. The spin can transition from an upright, recoverable configuration to a flat spin in which aerodynamic recovery controls become ineffective. This is a critical hazard underscored in both FAA-H-8083-25 and FAA-H-8083-3 (Airplane Flying Handbook).
  • Marginally reduced drag in cruise. Less tail-down load means slightly less trim drag, which can improve cruise fuel efficiency by a small margin. The FAA acknowledges this effect but is clear that any performance gain is vastly outweighed by the stability and control risks. No commercial operation should deliberately load aft to save fuel.

Lateral CG and Asymmetric Loading

Although fore-and-aft CG dominates most discussions, lateral CG—displacement of the balance point left or right of the aircraft centerline—is equally real and regulated. An uneven passenger load, asymmetric cargo stowage, or a significant fuel imbalance between wing tanks shifts the lateral CG off centerline. The result is a persistent rolling tendency that demands constant aileron deflection to maintain wings-level flight.

That constant control deflection has measurable consequences: increased drag, accelerated wear on control cables and pulleys, and reduced roll authority on the heavy side. For multi-engine aircraft, a lateral CG offset compounds the control challenges already present with asymmetric thrust. Commercial pilots managing mixed passenger-and-cargo configurations must compute lateral balance in addition to longitudinal CG, and aircraft flight manuals (AFMs) for larger aircraft often specify lateral CG limits explicitly.

Operating outside the CG envelope is an airworthiness violation under 14 CFR Part 91. The aircraft is not in an airworthy condition, regardless of whether it is within its maximum certificated gross weight. FAA-H-8083-1 reinforces this point emphatically: an aircraft can be within gross weight yet completely out of CG limits, and that condition is just as illegal—and potentially more dangerous—than being over gross weight. Under 14 CFR §91.9, the pilot in command is responsible for ensuring compliance with the aircraft's limitations, including weight and balance, before every flight.

  • Weight and balance records must reflect the actual loaded condition, not a generic standard loading.
  • Any modification to the aircraft (added avionics, removed seats, cargo liner installation) that changes empty weight or empty-weight CG must be reflected in updated weight and balance documentation.
  • Part 135 operations impose additional record-keeping requirements; operators must retain weight and balance computations for each flight under certain conditions per 14 CFR §135.63.

Key Numbers and Rules

  • CG limits are expressed in inches from the datum or as a percentage of mean aerodynamic chord (%MAC) in transport-category aircraft.
  • The moment of a weight equals weight × arm; CG equals total moment ÷ total weight.
  • Stall speed varies with the square root of the load factor; a forward CG that adds tail-down load effectively increases load factor, raising stall speed.
  • The neutral point is the theoretical aft CG boundary for static stability; manufacturers set the certified aft limit conservatively forward of the neutral point to preserve a positive static margin.
  • In a spin, a CG at or beyond the aft limit dramatically increases the likelihood of an unrecoverable flat spin, as documented in FAA-H-8083-25 and accident records reviewed by the NTSB.

Common Test Traps

  • Confusing aft CG with better performance. The lower stall speed associated with an aft CG is real, but test questions often pair it with reduced stability to emphasize that the net effect is hazardous.
  • Assuming gross weight compliance equals CG compliance. A fully legal gross weight tells you nothing about CG location; both must be independently verified.
  • Forgetting fuel burn shifts CG. As fuel burns, the CG moves—sometimes forward (burning from aft tanks), sometimes aft (burning from forward tanks). A CG that is acceptable at takeoff may fall outside limits midway through the flight.
  • Ignoring lateral balance. Commercial knowledge test questions occasionally address lateral CG or fuel imbalance; knowing the principles prevents an easy miss.
  • Misidentifying which limit reduces elevator authority. It is the forward limit that can prevent adequate flare authority, not the aft limit—a distinction the knowledge test exploits.

Frequently asked questions

What happens to stall speed when the CG moves forward?

When the CG shifts forward, the horizontal tail must produce a greater downward balancing force, which increases the total lift the wings must generate at any given weight. Because the wing reaches its critical angle of attack at a higher airspeed under this added load, the stall speed increases. The FAA Pilot's Handbook of Aeronautical Knowledge (FAA-H-8083-25) identifies this as one of the primary performance penalties of a forward CG condition.

Why is an aft CG more dangerous than a forward CG?

An aft CG reduces the aircraft's longitudinal static stability, meaning it has a diminished tendency to return to trimmed pitch after a disturbance, and beyond the neutral point the aircraft becomes statically unstable. In a stall or spin, an aft CG can cause the aircraft to enter a flat spin from which aerodynamic recovery controls may be ineffective. The FAA Weight and Balance Handbook (FAA-H-8083-1) and the Pilot's Handbook of Aeronautical Knowledge both stress that aft CG loading represents a serious flight safety hazard even when the aircraft is within its certificated gross weight.

How does fuel burn during flight affect the center of gravity?

As fuel is consumed, the weight removed comes from wherever the fuel tanks are physically located relative to the datum, so the CG shifts in the direction away from those tanks. If fuel burns primarily from aft tanks, the CG moves forward; if it burns from forward tanks, the CG migrates aft. Pilots must verify that the CG remains within the approved envelope not just at takeoff weight but throughout the entire fuel burn profile, because a loading that is legal at brake release can become out-of-limits at landing weight.

See also

FAA source

Weight & Balance Handbook FAA-H-8083-1, Chapters 1, 3, and 4; Pilot's Handbook of Aeronautical Knowledge FAA-H-8083-25, Chapter 5 (Aerodynamics); Airplane Flying Handbook FAA-H-8083-3, Chapter 11.
