DME and RNAV Holding Patterns

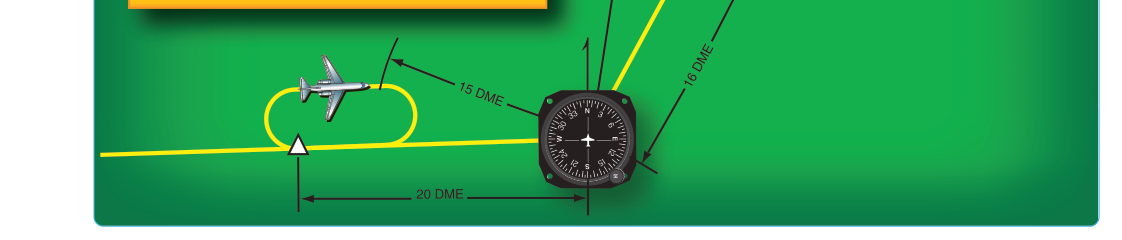

Holding patterns are a foundational instrument flying skill — a way for ATC to sequence traffic, absorb delays, or give a pilot time to prepare for an approach. The classic holding pattern is defined by a fix (usually a VOR or NDB) and outbound/inbound legs timed in minutes. But as navigation technology evolved, so did holding. DME holding defines the outbound leg by distance rather than time, while RNAV holding anchors a pattern to any waypoint a flight management system or GPS navigator can define. Both types appear on instrument approach and en route charts, and holding pattern concepts — including DME and RNAV holds — are tested on the FAA Instrument Rating knowledge and practical tests. Understanding how they work — and how they differ from timed holding — is essential for any IFR pilot.

This article walks through the mechanics, the regulatory framework, the published numbers, and the practical cockpit techniques you need to fly DME and RNAV holds correctly and confidently.

How DME Holding Works

A conventional timed hold uses elapsed minutes on the outbound leg (typically one minute below 14,000 feet MSL and one and a half minutes at or above 14,000 feet MSL) so the inbound leg approximates the same durations. DME holding replaces the outbound time with a specific radial distance from a VORTAC or DME-equipped VOR. ATC or a charted procedure will specify a radial and a DME fix distance — for example, "Hold on the 270 radial of the XYZ VORTAC, outbound leg 10 DME."

In practice, a pilot departing the fix flies outbound on the specified radial and turns inbound when the DME readout reaches the specified mileage. The outbound leg is therefore defined by the arc of a circle centered on the VORTAC, not by the clock. This means wind correction that works in timed holds (adjusting outbound time) does not apply the same way — instead, you fly to the DME distance and turn. Headwind and tailwind will affect how long the outbound leg takes in time, but the length in nautical miles is constant.

The fix itself is the VORTAC station or a DME fix on a published airway or approach. When ATC assigns DME holding, the clearance typically sounds like: "Cessna 12345, hold southwest of the Boise VORTAC on the 240 radial, 15 DME fix, right turns, maintain 8,000." The pilot uses the DME indicator to determine when to turn inbound — that is the holding fix, and the pattern repeats each time the aircraft passes through that DME arc distance on the inbound leg.

Setting Up the Cockpit for DME Holding

Before reaching the holding fix, ensure the DME is tuned to the correct VORTAC frequency and positively identified. Modern glass-panel avionics often display DME automatically when you select a VOR frequency, but always verify the Morse code identifier. Position your CDI on the specified radial, note the type of entry required (direct, teardrop, or parallel based on your arrival direction), and set your heading bug to the inbound course. Brief yourself on the maximum holding airspeeds so you know whether a speed reduction is required before entering the pattern.

How RNAV Holding Works

RNAV holding patterns are anchored at a waypoint defined by latitude and longitude, an along-track distance from a navaid, or a database fix. Pilots flying GPS or FMS equipment can load a published RNAV holding pattern directly from the procedure database, or they may be given an RNAV fix by ATC and required to set up the hold manually. The AIM describes procedures for both situations.

When an RNAV hold is published on a procedure chart (such as a GPS approach with a published holding pattern used as the missed approach), the GPS navigator's flight plan sequencing typically provides automatic waypoint capture and turn guidance. The navigator calculates the outbound leg in time (just like a conventional hold) unless a DME-equivalent leg length is specified. Some advanced FMS units allow the pilot to select a leg distance in nautical miles as an alternative to time, and the system then sequences the turn when that computed along-track distance is reached.

For manually entered RNAV holds, the pilot must tell the GPS navigator: (1) the waypoint serving as the fix, (2) the inbound course, (3) the turn direction, and (4) the leg time or leg distance. The navigator's roll-steering output then guides the aircraft through the pattern. If the GPS unit does not have a dedicated holding page, the pilot manually times the outbound leg as in a conventional hold and uses the navigator's position information to identify the fix on the inbound leg.

Database vs. Pilot-Entered Holds

Published RNAV holds loaded from a certified navigation database benefit from FAA-approved waypoint coordinates and leg definitions. Manually entered holds are only as accurate as the pilot's data entry. Any error in the inbound course or turn direction can produce a mirror-image or skewed pattern. Always cross-check a manually entered hold against the chart before reaching the fix, and if workload permits, brief the first few legs mentally before entering the pattern.

Why It Matters

DME and RNAV holds exist because timed holding has limitations. Near congested terminal areas where many aircraft hold simultaneously, defining legs by distance gives ATC a precise picture of where aircraft will be. A pilot in a DME hold 10 miles from a VORTAC does not drift closer or farther with wind corrections the way a timed hold might. This predictability reduces separation uncertainty.

RNAV holding is increasingly common as more approaches are GPS-based. Every GPS approach with a published missed approach procedure may include a holding pattern at a waypoint — and if an aircraft cannot complete the approach, the pilot must enter that hold flawlessly while managing a go-around, configuration changes, and ATC communications. Knowing the hold is in the database and how to activate it reduces workload at a high-stress moment.

There is also an airspace protection dimension. The FAA publishes holding pattern protected airspace based on assumed maximum airspeeds. If a pilot exceeds the applicable holding speed limit, the aircraft may leave the protected airspace and encounter terrain or other traffic outside the designed buffer.

Key Numbers and Rules

Maximum holding airspeeds (AIM 5-3-8): MHA up to 6,000 feet MSL — 200 KIAS; 6,001 to 14,000 feet MSL — 230 KIAS; above 14,000 feet MSL — 265 KIAS. Published approaches may specify lower limits shown in the profile view.
Standard outbound leg time: 1 minute at or below 14,000 feet MSL; 1 minute 30 seconds above 14,000 feet MSL. RNAV holds use these same timing rules unless a leg distance is specified.
DME leg length: Specified in the clearance or on the chart in nautical miles; timing does not govern — the DME readout governs the turn point.
Outbound wind correction: In timed holding, triple the inbound wind correction angle on the outbound leg. In DME holding, no time adjustment is made — fly to the DME distance and turn regardless of elapsed time.
Standard turns: Right turns unless ATC specifies left or the chart depicts left turns. All turns are at 3° per second (standard rate) or 30° bank angle, whichever requires the lesser bank.
Entry procedures: Parallel, teardrop, and direct entries apply to both DME and RNAV holds, determined by the aircraft's arrival heading relative to the holding course sectors (the same 70°/110° sector rule used in all holding).
RNAV equipment requirements: Equipment eligibility for a published GPS/RNAV hold depends on the specific procedure and the aircraft's approved AFM/AFMS — suitable TSO-C129a or WAAS-capable TSO-C145/C146 GPS navigators are commonly used, but the applicable requirement is set by the procedure and the aircraft's approval, not a single blanket TSO list.
Fuel planning: Under 14 CFR 91.167, IFR fuel reserves must account for anticipated holding. If ATC issues unexpected holding, pilots must evaluate remaining fuel against the alternate, destination, and reserve requirements.

Common Test Traps

Confusing the outbound turn point in DME holds. Students sometimes continue timing the outbound leg as if it were a conventional timed hold. In a DME hold, you turn inbound when the DME reads the specified distance — the clock is irrelevant to the turn point, though you may monitor time as a sanity check.
Applying the wrong wind correction technique. The triple-correction rule for outbound time applies only to timed holds. In a DME hold, you do not extend or shorten the outbound leg by time; you simply fly to the distance.
Forgetting that RNAV holds still use timed legs by default. Unless the published procedure or ATC specifies a leg distance, an RNAV hold uses the same 1-minute/1.5-minute outbound timing rule as a conventional hold. Many students assume GPS holds are always distance-based.
Exceeding holding speed limits. The FAA tests whether pilots know the three airspeed tiers (200/230/265 KIAS). Exceeding these limits in an exam scenario is an automatic flag, and in real flight it compromises protected airspace margins.
Wrong entry type for an RNAV hold in the missed approach. A missed approach hold is entered based on the aircraft's actual heading when it reaches the holding fix, not the published final approach course. Determine your arrival heading at the waypoint and apply the standard entry sector rules from that heading.

Putting It Together

DME and RNAV holding patterns are logical extensions of the basic timed hold, adapted for the precision and flexibility of modern navigation systems. The core discipline — proper entry, correct turn direction, speed compliance, and wind correction — remains the same. What changes is how the outbound leg boundary is defined: by distance on a DME hold, by the navigator's computed leg in an RNAV hold. Master the underlying hold geometry first, then overlay the DME or GPS technique and you will find both variants straightforward. In the airplane, brief the hold before you need it, verify all inputs, and give yourself permission to ask ATC for an amended clearance if something does not add up — professional IFR pilots do it routinely, and it is always the right call.
