When ATC issues a holding clearance, the first thing you must nail down is the holding fix — the precise geographic point over which the holding pattern is anchored. Every racetrack pattern you fly pivots around that fix: you cross it inbound, you cross it outbound, and every entry maneuver is oriented relative to it. The FAA recognizes several distinct types of holding fixes, each tied to a different navigation facility or waypoint type, and each with its own identification method, limitations, and cockpit implications. Confusing a fix type — or mis-identifying a fix — can put you on the wrong course, in the wrong airspace, or dangerously close to terrain that the procedure was designed to avoid.
This article covers every holding fix type you are likely to encounter as an instrument-rated pilot, explains how each one is positively identified, and highlights the practical and regulatory distinctions that the FAA Instrument Flying Handbook and Instrument Procedures Handbook emphasize for both the knowledge test and the checkride.
What a Holding Fix Is and Why It Must Be Precisely Defined
A holding fix is the point that defines the location of the holding pattern. ATC assigns it by name in the clearance — for example, "Hold northwest of the KORD 270 radial, 20 DME fix" or "Hold at LUZRD intersection as published." The fix is not a fuzzy region; it is a specific, charted point from which the inbound course, leg lengths, and entry procedures are all measured. The Instrument Flying Handbook (FAA-H-8083-15) makes clear that pilots must positively identify the fix before maneuvering into the hold, because an unidentified or incorrectly identified fix can place the aircraft outside protected airspace.
VOR Fixes
A VOR fix is the most traditional type of holding fix. It can be the VOR station itself — in which case the fix is directly over the ground-based transmitter — or it can be a specific radial/distance combination from the VOR. When the hold is at the station, identification requires that you positively identify the VOR by its Morse code identifier, which you listen for on the navigation receiver. The FAA requires pilots to verify the identifier before relying on any VOR for navigation; a VOR undergoing maintenance may broadcast the letters "T-E-S-T" or may silence its identifier entirely, which is your cue that the facility is unreliable.
A holding fix defined solely by a single VOR radial, without DME or a crossing radial to fix a specific point along it, is not a valid, uniquely determined fix — a radial alone only describes a course, not a point. Published holds located along a single radial without DME must therefore use an intersection with another course (a crossing VOR radial, localizer, or NDB bearing) to define the exact fix. The CDI (course deviation indicator) should center with a FROM indication as you pass the station, confirming fix passage. For an outbound radial fix (holding on a radial at a defined distance), you additionally need DME, covered below.
NDB Fixes
A Non-Directional Beacon (NDB) fix places the hold over or abeam the NDB transmitter. The ADF needle points directly to the NDB, and station passage is typically identified when the needle reverses — swinging through approximately 180° from pointing ahead to pointing behind (toward the tail) — rather than settling at some intermediate deflection; the exact indication observed depends on your track relative to the station. NDB fixes demand extra vigilance: the ADF is susceptible to precipitation static, shore-line effect at low frequencies, and nighttime sky-wave interference, all of which can introduce bearing errors. The Instrument Flying Handbook stresses that pilots must continuously verify the NDB identifier — a two- or three-letter Morse code broadcast — on the ADF audio panel, because NDBs share frequency bands with commercial AM stations that can cause false needle indications if the identifier is not confirmed. NDB-based holds are increasingly rare in the U.S. NAS but remain part of the Instrument Rating Airman Certification Standards.
DME Fixes

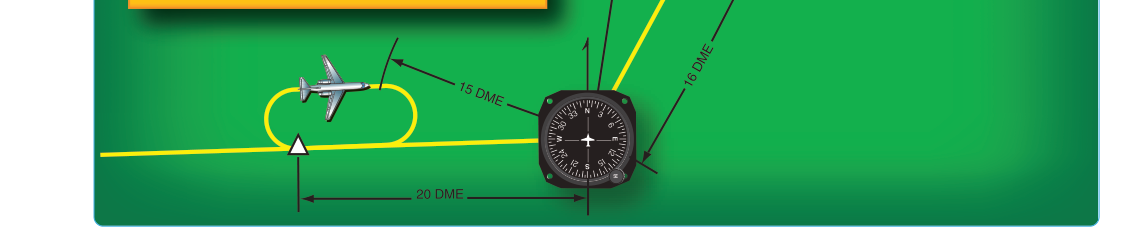

A DME fix is defined by a specific distance from a VORTAC or VOR/DME facility along a stated radial. For example, "the 090 radial, 15 DME" from a given VORTAC is a DME fix. DME slant-range distance is measured from the aircraft's DME receiver to the ground transponder, so the displayed distance can differ from ground track distance. This slant-range error is most pronounced when the aircraft is at high altitude AND in close horizontal proximity to the station simultaneously — for example, flying directly over or very near a station at altitude — and the error diminishes rapidly as the aircraft's distance from the station increases. At normal IFR distances from the facility, the difference between slant range and ground distance is operationally negligible. Fix passage is confirmed when the DME readout passes through the published mileage. Because DME gives continuous distance readouts, it also allows pilots to judge leg timing in the hold: many DME arcs and holds specify leg lengths in nautical miles rather than time when DME is available. The Instrument Flying Handbook notes that when DME is specified in the holding clearance, a DME-equipped aircraft must use it; if DME is inoperative, the pilot must advise ATC and receive an amended clearance.
Intersection Fixes
An intersection fix is a point defined by the crossing of two or more navigational courses — most commonly two VOR radials, or a VOR radial crossing a localizer course or NDB bearing. Intersection fixes are named (e.g., LUZRD, BOTON) and charted on en route and approach charts. Positive identification of an intersection requires that both defining courses are tuned, identified, and confirmed simultaneously. In practice, the pilot tunes one VOR to the primary inbound course and the second VOR (or other nav source) to the crossing radial, and monitors both CDIs. Fix passage occurs when the CDI for the crossing radial centers (or the pointer for an NDB deflects to the wing position). A common error is relying on only one radial and assuming position — this is precisely the trap the FAA knowledge test exploits.
RNAV and GPS Waypoints
Modern IFR operations increasingly use RNAV waypoints as holding fixes. These are database waypoints identified by a five-letter name (e.g., JAIKE, BRUWN) and defined by latitude and longitude coordinates stored in the FMS or GPS navigator. The aircraft's RNAV system computes fix passage automatically, typically annunciating it on the moving map and CDI when the waypoint is sequenced. Pilots must verify that the correct waypoint is loaded by cross-checking the identifier, the coordinates or bearing/distance from a known reference, and — for GPS — that integrity monitoring appropriate to the phase of flight and equipment is available and the system is in the appropriate mode (e.g., terminal sensitivity).
When a GPS or FMS flies a published RNAV hold, the system often sequences the holding pattern automatically once the fix is reached. However, the pilot remains responsible for ensuring the hold is entered correctly and that the aircraft does not sequence past the fix if the hold must be manually flown. The Instrument Procedures Handbook (FAA-H-8083-16) emphasizes that pilots using GPS for holding must understand whether their unit is approved for IFR operations under TSO-C129 or TSO-C146 standards, and whether the database is current.
Visual Fixes and Non-Published Fixes
ATC may occasionally assign a holding fix that is not charted — for instance, a visual landmark or a radar fix. These are more common in VFR holding situations or when ATC issues a non-standard holding clearance. In IMC, non-published holds must include all required elements in the clearance: the fix, the radial or course to hold on, the direction of turns, and the EFC (Expect Further Clearance) time. The pilot navigates to the fix using whatever means ATC specifies. Because these fixes are not pre-loaded in a database, extra care in situational awareness and chart cross-checking is essential.
Key Numbers and Rules
- VOR identification: Always verify the Morse code identifier before using the VOR as a fix; a silent or TEST identifier means the facility is unreliable.
- NDB identification: Continuously monitor the two- or three-letter Morse code; confirm the needle points to the station and is not tracking an AM broadcast or interference source.
- DME slant range: DME reads slant-range distance; errors are most pronounced when high altitude and close proximity to the station occur together, and diminish as distance from the station increases — at typical IFR distances from the facility the error is operationally negligible.
- Intersection identification: Both defining radials or courses must be independently tuned and identified — never assume one radial is sufficient.
- GPS/RNAV holds: The database must be current (within the 28-day AIRAC cycle), and integrity monitoring (RAIM prediction, WAAS, or FDE, as applicable to the equipment) should be confirmed appropriate for the route and phase of flight.
- EFC time: Any holding clearance must include an Expect Further Clearance (EFC) time; if communications are lost, this time governs when you depart the hold and proceed on the filed/expected route.
- Non-published holds: Must include the fix, direction of holding, course/radial, leg length (time or DME), turn direction, and EFC time per AIM Chapter 5.
Common Test Traps
- Assuming a VOR station and a VOR fix are always the same thing: A hold "at" the VOR is over the station; a hold "on the 270 radial, 15 DME" is a completely different geographic point. Confusing these leads to wrong fix identification and incorrect entry calculations.
- Using only one radial to identify an intersection: An intersection is not confirmed until the crossing course also centers. Relying on a single CDI can put you miles from the actual fix.
- Overlooking the Morse code verification requirement: The FAA knowledge test asks what a pilot should do if the VOR identifier is absent or broadcasting TEST — the correct answer is that the facility is not reliable and should not be used.
- Forgetting DME is required when specified: If the holding clearance or procedure specifies a DME fix and your DME is inoperative, you cannot legally fly that fix without an amended clearance from ATC.
- Treating RNAV waypoints as automatically verified: A GPS waypoint in the database must still be confirmed against the chart identifier and the current AIRAC cycle. An outdated database or incorrectly loaded waypoint is a fix identification failure even though the autopilot appears to be flying normally.
Holding fix identification is one of those instrument skills that feels routine — until it isn't. Each fix type has a specific identification method, a specific failure mode, and a specific set of regulations governing its use. Understanding these distinctions not only prepares you for the FAA knowledge test and checkride, but also builds the habit of positive fix identification that separates safe IFR pilots from those who "think" they know where they are.
