What do the visibility and ceiling values in the minimums section of an approach chart mean?

The minimums section of an instrument approach procedure chart lists the lowest decision altitude or minimum descent altitude, along with the required flight visibility, that you must have to legally continue an approach to landing. These values are published for different aircraft categories (A through D), which are based on the aircraft's approach speed. If the required visibility or ceiling is not met at the appropriate point in the approach, you must execute a missed approach as specified in the Instrument Flying Handbook and 14 CFR Part 91.

What is the difference between decision altitude and minimum descent altitude on an instrument approach chart?

A decision altitude (DA) is used on precision approaches, such as an ILS, and represents the height at which you must decide to either continue the approach or execute a missed approach if the runway environment is not in sight. A minimum descent altitude (MDA) is used on non-precision approaches, such as a VOR or LNAV approach, and is the lowest altitude you may descend to without the required visual references. According to the Instrument Flying Handbook, you may not descend below the MDA unless you have the runway environment in sight and can make a normal landing.

How do aircraft approach categories affect the minimums listed on an instrument approach chart?

Aircraft approach categories are defined in 14 CFR Part 97 and are based on 1.3 times the aircraft's stall speed in the landing configuration at maximum certificated gross weight, known as Vso. Higher-speed aircraft (Category C or D) typically require higher visibility minimums and may have higher MDAs or DAs than slower Category A or B aircraft because they require more maneuvering distance and runway length. Pilots must use the minimums that correspond to their actual aircraft category, and flying a higher-category aircraft at a lower speed does not permit use of a lower category's minimums unless the pilot files and flies the approach at the lower category speed.

Approach Chart Minimums Section: Visibility and Ceiling Categories

Every instrument approach chart contains a minimums section — a compact block of numbers that determines whether you may legally descend below the clouds and attempt a landing. For an instrument-rated pilot, reading that section correctly under pressure, in actual IMC, with a runway environment not yet in sight, is one of the most consequential skills in aviation. Yet the minimums box is also one of the most misread portions of any approach chart. This article breaks down every component: what the numbers mean, how aircraft approach categories are determined, what visibility and ceiling values are legally binding, and where the FAA knowledge test likes to catch students off guard.

The instrument approach procedures (IAPs) published in the United States follow formats standardized by the FAA and conform to criteria established in the Terminal Instrument Procedures (TERPS) criteria. The minimums section appears at the bottom of every approach chart and is organized by aircraft approach category and by the type of approach being flown — whether that is a full procedure, a straight-in, or a circling approach. Understanding what each row and column represents is the foundation for legal and safe IFR operations.

Aircraft Approach Categories

Minimums are not one-size-fits-all. The FAA divides aircraft into Approach Categories A through E based on a single defining value: 1.3 times the aircraft's stall speed in the landing configuration at maximum certified gross weight (Vso). This speed is called the threshold crossing speed or approach speed baseline. The faster your aircraft crosses the threshold, the wider the obstacle clearance area must be, and the higher the minimums may be set.

Category A: speed less than 91 knots
Category B: speed 91 knots up to but not including 121 knots
Category C: speed 121 knots up to but not including 141 knots
Category D: speed 141 knots up to but not including 166 knots
Category E: speed 166 knots or greater

Most light single-engine training aircraft fall into Category A. A typical light twin or turboprop may be Category B or C. Category E is not restricted to military aircraft — some civilian aircraft, including certain high-speed jets, can also fall into Category E. This matters enormously because the minimums listed in the chart's Category A column may be hundreds of feet lower and a mile less visibility than those listed for Category C or D. You must use the minimums for your actual aircraft — you cannot simply choose a lower-category column to get lower minimums unless your approach speed on that particular approach is genuinely within that range. However, pilots may voluntarily fly at a higher category's minimums if operationally desired. What is never permitted is flying at a lower category than your actual speed demands.

Straight-In vs. Circling Minimums

Most minimums sections display two types of rows: straight-in minimums and circling minimums. Straight-in minimums apply when the final approach course aligns within 30 degrees of the runway centerline and the approach geometry meets descent gradient requirements that allow a normal landing without maneuvering beyond a standard pattern. When those alignment criteria are met, the chart publishes a straight-in line labeled with the runway number (for example, "S-ILS 28" for a straight-in ILS to Runway 28).

When the approach course is more than 30 degrees off the runway heading, or when the descent angle is too steep for a straight-in landing, only circling minimums are published. Circling minimums are always higher than straight-in minimums on the same approach because the pilot must maneuver the aircraft visually around the airport to align with the landing runway. The circling area is defined by arcs of varying radius around each runway end, and those radii increase with approach category — another reason faster aircraft face higher circling minimums. If a specific runway is not suitable for circling (due to terrain or obstacle issues), the chart will note "NA" (not authorized) for that direction.

Understanding the Minimums Numbers

Within each cell of the minimums section, you will typically find two critical numbers: the Decision Altitude/Height (DA/DH) or Minimum Descent Altitude (MDA), and the required visibility expressed in statute miles or runway visual range (RVR) in feet.

DA (Decision Altitude) is used for precision approaches — ILS, LPV (GPS localizer performance with vertical guidance), and GLS. It is expressed as a mean sea level (MSL) altitude. At the DA, you must decide immediately: if you have the required visual references, you may continue to land; if not, you must execute a missed approach without delay. There is no hovering at the DA to look around — the decision must be made at that exact altitude.

MDA (Minimum Descent Altitude) is used for non-precision approaches — VOR, NDB, LOC, LNAV, and similar procedures. The MDA is also expressed in MSL, and you may not descend below it unless you have the required visual references and are in a position to make a normal landing. Unlike a DA, you may briefly level off at the MDA and fly level while searching for the runway environment, but you must still execute a missed approach if visual contact is not established before the missed approach point (MAP).

The Height Above Touchdown (HAT) is printed in parentheses next to the DA or MDA. This is the elevation of the DA/MDA above the touchdown zone elevation of the runway, and it is the number closest to what pilots think of as "ceiling." For circling approaches, the equivalent value is HAA — Height Above Airport — because the pilot is maneuvering around the entire airport rather than targeting a specific runway's touchdown zone.

Visibility Requirements

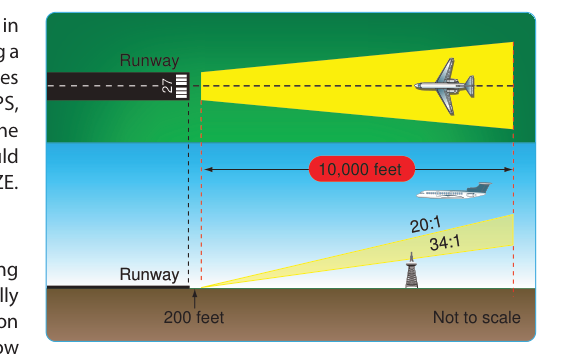

Visibility in the minimums section is the minimum flight visibility required to begin or continue the final approach segment. For most approaches, this is stated in statute miles (SM). When an approach has an RVR (Runway Visual Range) value, it is stated in hundreds of feet, derived from transmissometer readings on the runway surface. Common RVR minimums include 1,600 feet RVR (approximately 1/4 SM), 2,400 feet RVR (approximately 1/2 SM), and 4,000 feet RVR (approximately 3/4 SM).

An important legal point: the visibility you must have is the reported visibility at the time you reach the final approach fix (FAF) or, for some operations, at the time of commencement of the approach. You cannot begin the final approach segment if reported visibility is below minimums, even if conditions appear better visually. Conversely, if visibility drops below minimums after you have passed the FAF, you are not required to immediately execute a missed approach — but you must have the required visual references to land at the DA or MAP.

Key Numbers and Rules

Approach category threshold: 1.3 × Vso at max gross weight determines your category letter.
Straight-in alignment: Final approach course within 30 degrees of runway heading (other criteria also apply).
DA vs. MDA: DA is used for precision/APV approaches; MDA is used for non-precision approaches.
HAT: Height Above Touchdown zone — printed in parentheses next to the DA or MDA on straight-in rows.
HAA: Height Above Airport elevation — used for circling minimums rows.
"NA": Means the approach or circling maneuver is not authorized in that configuration.
RVR conversion: 1,600 ft RVR ≈ 1/4 SM; 2,400 ft RVR ≈ 1/2 SM; 3,200 ft RVR ≈ 5/8 SM; 4,000 ft RVR ≈ 3/4 SM; 4,500 ft RVR ≈ 7/8 SM; 5,000 ft RVR ≈ 1 SM (approximate FAA-published conversions).
Alternate airport minimums: Standard alternate minimums are 600-2 for precision approaches and 800-2 for non-precision, unless the chart states "A" (alternate minimums not standard) with specific values in the front of the approach booklet.

Common Test Traps

Confusing DA and MDA: Students often think both allow a momentary level-off to search for the runway. Only the MDA permits a level-off; at a DA you must decide and act immediately — continuing or initiating a missed approach right at that altitude.
HAT vs. HAA: The test may ask what the number in parentheses represents. For straight-in minimums it is HAT (above touchdown zone); for circling minimums it is HAA (above airport elevation). Mixing these up is a very common error.
Using the wrong approach category: A question may describe an aircraft with a Vso of 80 knots and ask which category applies. Calculate: 1.3 × 80 = 104 knots — that is Category B, not A. Students who simply look at the raw stall speed instead of computing 1.3 × Vso consistently choose the wrong answer.
Circling not authorized: When "NA" appears in a circling column, it means the maneuver is prohibited, not just discouraged. Flying a circle-to-land when the chart says NA is a regulatory violation and a genuine safety hazard.
Alternate minimums "A" note: When a black triangle or letter "A" appears in the chart's notes, the standard 600-2/800-2 alternate minimums do NOT apply. Non-standard alternates require the pilot to look up the specific values. Assuming standard alternate minimums without checking is a common and potentially dangerous mistake.

Mastering the approach chart minimums section means you can extract the precise legal floor for each phase of an instrument approach under any conditions. When visibility and ceilings sit right at minimums and you are hand-flying the final segment of an ILS in hard IMC, there is no time to puzzle over what the numbers mean. Study these concepts now so they become automatic — your future self in the clouds will be grateful.
